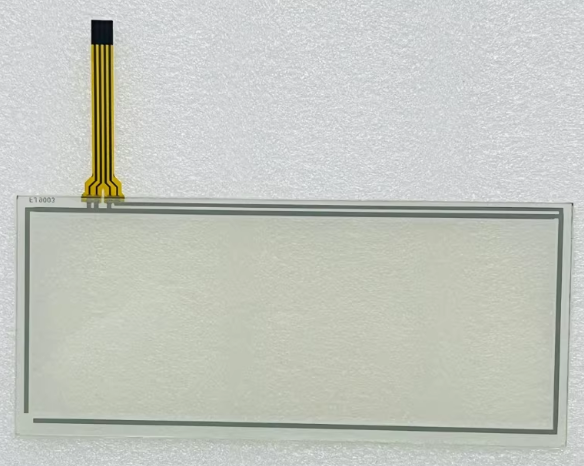

New Touch Screen TP3252S1
1. Physical Specifications
Parameter Specification Notes
Model Number TP3252S1 Part of TP-series industrial touch screens
Product Type Touch Screen Panel / Digitizer Glass Replacement touch sensor layer
Screen Size 5.7 inches
Touch Technology Analog Resistive 4-wire, 5-wire, or 8-wire configurations available in series
Input Method Pressure-activated (load detection) Upper substrate flexes to contact lower ITO electrodes
Linearity Error < 1.5%
Touch Resolution 4096 × 4096 (interpolated)
2. Electrical Specifications
Parameter Specification Notes
Operating Current 5mA ~ 25mA
Response Speed < 10ms
Input Life ≥1,000,000 touches Minimum actuations
Lineation Test ≥100,000 cycles
3. Environmental Specifications
Parameter Specification Notes
Operating Temperature -10°C to +60°C
Storage Temperature -20°C to +70°C
Operating System Support Linux, DOS, Windows 95/98/ME/NT4.0/XP/2000, Mac OS Driver compatibility
4. Key Features & Construction
Feature Description
Operating Principle Analog resistive with ITO (Indium Tin Oxide) electrodes separated by dot spacers to prevent short-circuits when not pressed
Detection Method X/Y electrode contact detection when pressure is applied
Durability High input life (1M+ touches) suitable for industrial applications
Warranty Typically 365 days for replacement parts
5. Applications
Industry / Equipment Application
Hitachi Inkjet Printers PB-260E PB series printer control panels
Industrial Equipment Light industrial equipment, home appliances
Commercial Applications POS terminals, KIOSK systems, advertising displays, ATMs
Injection Molding Machines Compatible with Toshiba, Nissei, Sumitomo, Mitsubishi, and other injection molding machine displays
General Industrial PLC control panels, HMI operator interfaces
