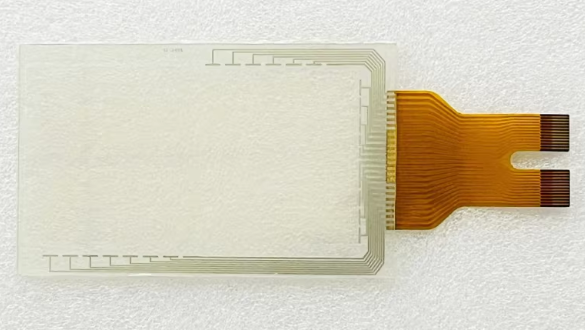

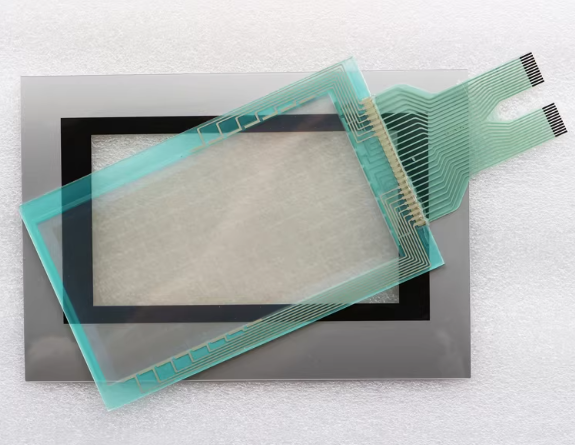

New Touch Screen TP460-L HZD5.3-0915A
1. Display Specifications
Parameter Specification Notes
Display Type 4.3" TFT LCD
Resolution 480 × 272 pixels Widescreen (16:9)
Display Colors 65,535 colors
Backlight Type LED
Backlight Lifetime > 20,000 hours
Touch Screen Type 4-wire Analog Resistive
Touch Screen Lifespan 1,000,000 touches
2. Processor & Memory
Parameter Specification Notes
CPU ARM9
System Memory (SDRAM) 64 MB
Storage (Flash) 64 MB
SD Card Slot Yes Supports SD card for data storage
3. Communication Interfaces
Interface Type Notes
Serial Ports COM0: RS-232/RS-485
COM1: RS-232/RS-485
COM2: RS-232 3 serial ports (COM0, COM1, COM2)
USB Host 1 × USB Host (Type A) For connecting USB flash drives, mouse, keyboard
USB Client 1 × USB Slave (Mini USB) For program download and PC communication
Ethernet None
Printing Support Yes Supports USB printers
4. Electrical Specifications
Parameter Specification Notes
Input Power DC 24V (±20%)
Power Consumption 5W
5. Physical Specifications
Parameter Specification Notes
Dimensions (W × H × D) 153 × 103 × 50 mm
Panel Cutout (W × H) 135 × 93 mm
Weight 0.4 kg
6. Environmental Specifications
Parameter Specification Notes
Front Panel Protection IP65 Dust-tight and protected against water jets
Operating Temperature 0°C to +50°C
Storage Temperature -10°C to +60°C
Operating Humidity 10% to 90% RH (non-condensing)
