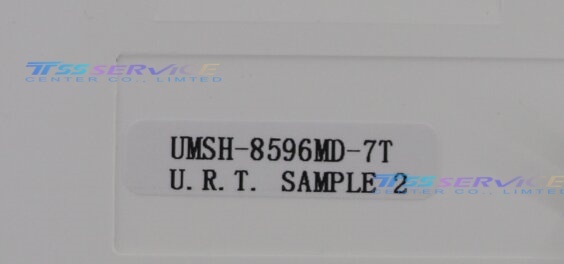

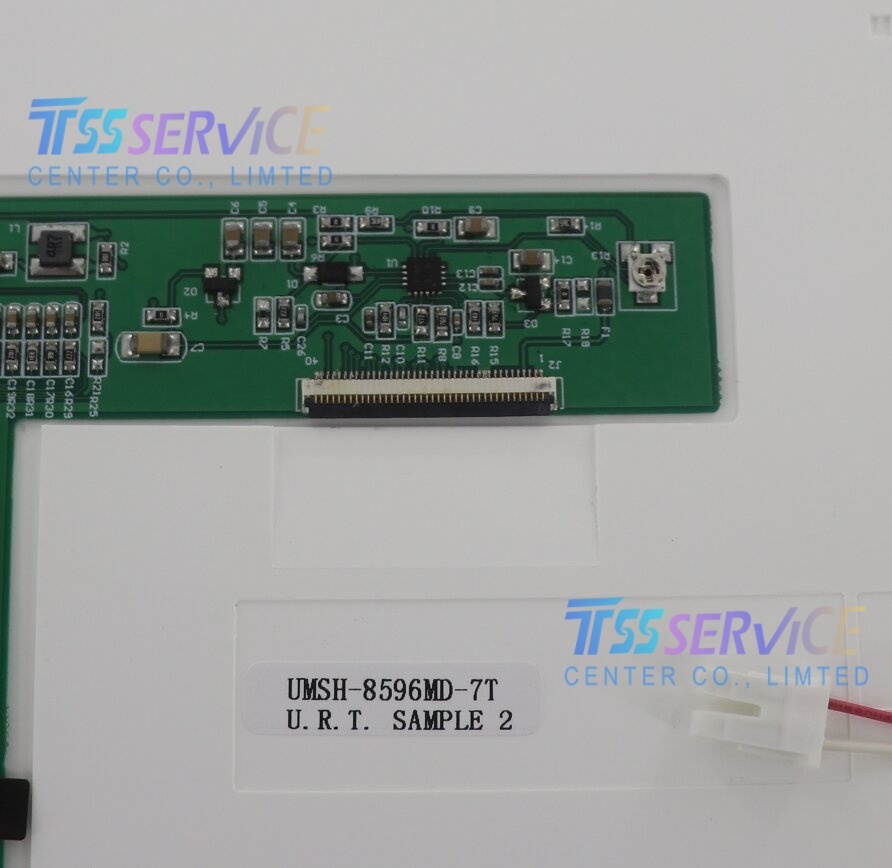

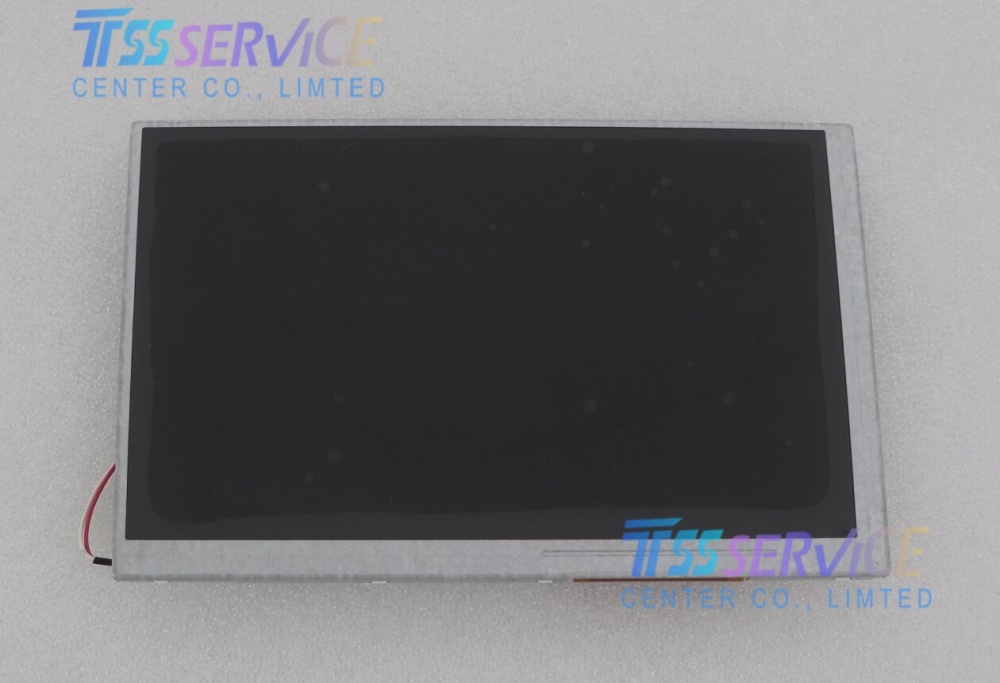

UMSH-8596MD-7T 7 inch Compatible LCD Module For Industrial

Name: UMSH-8596MD-7T 7 inch Compatible LCD Module For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: UMSH-8596MD-7T
Price: 92 USD
Availability: InStock

SKU: UMSH-8596MD-7T

Part no: UMSH-8596MD-7T
Size: 7.0" (Diagonal)
Resolution: 800 × 480 (WVGA)
Aspect Ratio: 15:9

0.0 (0 Reviews)

0 Sold

~~$94.00~~ $92.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

UMSH-8596MD-7T 7 inch Compatible LCD Module For Industrial

Parameter	Specification
Panel Type	a-Si TFT-LCD, Transmissive
Size	7.0" (Diagonal)
Resolution	800 × 480 (WVGA)
Aspect Ratio	15:9
Active Area	154.08 × 91.56 mm
Outline Dimension	165.0 × 103.0 × 7.0 mm
Brightness	400 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.)
Viewing Angle	70°/70°/60°/60° (L/R/U/D)
Response Time	25 ms (Typ.)
Display Colors	16.7M (24-bit RGB)
Color Gamut	65% NTSC
Backlight	WLED (White LED)
LED Lifetime	50,000 hours
Interface	24-bit Parallel RGB (8080/6800)
Input Voltage	3.3 V DC (Logic) / 12 V DC (Backlight)
Power Consumption	4.5 W (Typ.)
Operating Temp.	-20°C ~ +70°C
Storage Temp.	-30°C ~ +80°C
Surface Treatment	Anti-Glare (AG)

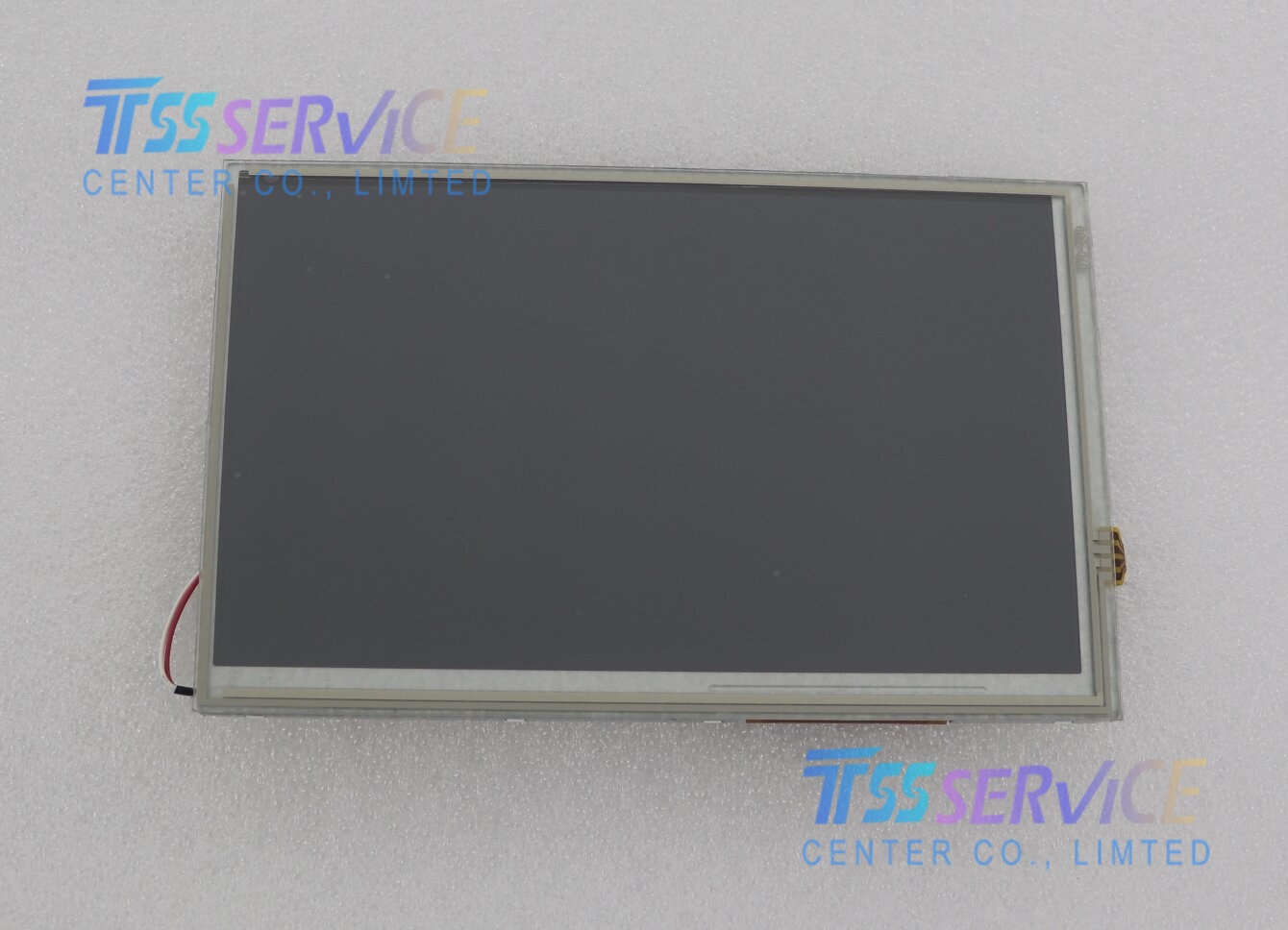

Touch Screen	Optional (Resistive Touch Panel)
Weight	~320 g

Applications

Industrial HMI: Factory automation, PLC control panels, machine tools
Medical Devices: Patient monitors, diagnostic equipment, medical imaging
Automotive Displays: Dashboard, infotainment, navigation systems
Marine & Off-Road: Vehicle displays, marine navigation, rugged terminals
Smart Kiosks: POS terminals, ticket machines, public information displays
Test & Measurement: Oscilloscopes, data loggers, spectrum analyzers
Outdoor/Harsh Environments: Wide temperature range, anti-glare for industrial use
