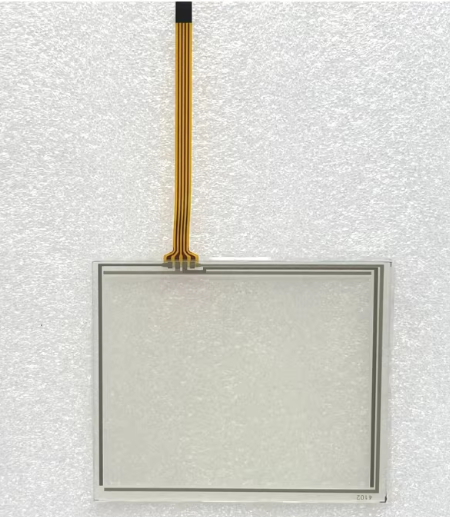

New Touch Screen VCP11.2DWN-003-NN-NN-PW
1. General Information
Parameter Specification
Model VCP11.2DWN-003-NN-NN-PW
Series IndraControl VCP 11.2
Manufacturer Bosch Rexroth (Indramat)
Type Compact Operator Terminal / HMI
MPN / Part No. R911311509
Operating System Windows CE
2. Display & Touch
Parameter Specification
Display Size 3.8 inches
Display Type Graphics-oriented FSTN (Film Compensated Super Twisted Nematic)
Resolution 320 x 240 pixels (QVGA)
Color / Grayscale 5 gray shades
Touch Technology Analog Resistive, 4-wire technology
Reading Angle 80°
Physical Keys None (Function and system keys not supported)
3. Processor & Memory
Parameter Specification
CPU RISC ARM9 @ 200 MHz
Application Memory 3 MB
Flash Memory 16 MB
DRAM 32 MB
SRAM 512 KB
4. Communication Interfaces
Parameter Specification
Serial Ports RS-232, RS-485
Ethernet Yes (for LAN-based communication)
Host Interfaces 2 (X9, X10)
5. Electrical Specifications
Parameter Specification
Supply Voltage 24 V DC
Connection Via connector X1
Max. Voltage 30 V
Max. Residual Ripple 10%
Reverse Polarity Protection Yes
6. Physical & Environmental Specifications
Parameter Specification
Weight Approximately 500 g
Construction Material Galvanized steel, anodized aluminum, polyester foil
Mounting Can be mounted in any desired position
Front Protection Protection against solid particles and low-pressure water jets
Rear Protection IP20 with circumferential rubber seal
Operating Temperature +5 °C to +45 °C
Storage Temperature -20 °C to +60 °C
Relative Humidity Max 85% (non-condensing)
Max. Operating Altitude 2000 m above sea level (DIN EN 61131-2)
Vibration Resistance 10 Hz to 150 Hz (DIN EN 60068-2-6)
