1. Display Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Display Type | Color TFT LCD | Provides clear, vibrant visuals |
| Display Size | 10 inches | Diagonal measurement |
| Resolution | 640 x 480 pixels (VGA) | Standard VGA resolution for detailed screens |

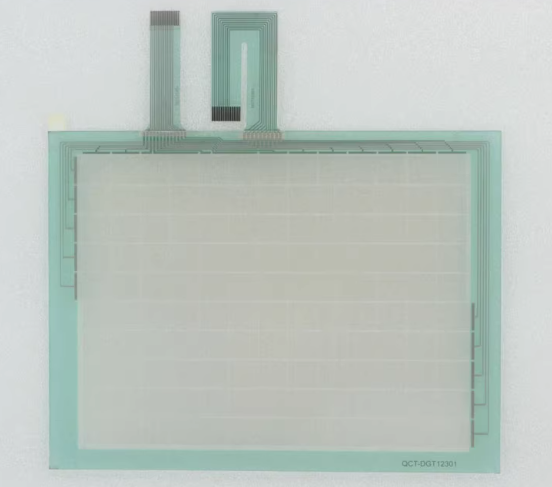

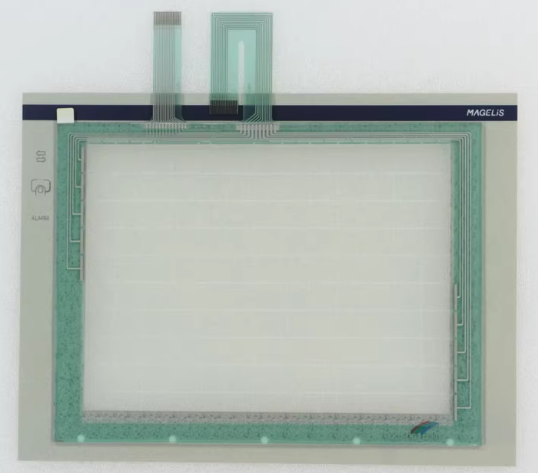

| Touch Screen Type | Resistive Touch Screen | Durable and can be operated with gloved hands |
2. Processor & Memory
3. Communication Interfaces
4. Electrical Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Power Supply | 24 VDC | Standard industrial voltage |
| Power Consumption | Approx. 6W - 15W | Typical for this class of device |
5. Physical & Environmental Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Dimensions (W x H x D) | 277 mm x 208 mm x 48 mm -9 | Panel-mount design |
| Weight | 1.2 kg -9 | |
| Enclosure Rating (Front) | IP65 -4 | Dust-tight and protected against water jets |
| Enclosure Rating (Rear) | IP20 | Protection against solid objects |
| Operating Temperature | -20°C to +55°C -9 | Suitable for most industrial environments |
| Storage Temperature | -40°C to +85°C -9 | |
| Vibration Resistance | 5 g -4 | |
| Shock Resistance | 50 g -4 |
6. Certifications & Compliance
7. Key Features & Benefits
| Feature | Benefit |
|---|---|
| Large 10" Color Display | Excellent visibility for complex process data and graphics |
| Resistive Touch Screen | Reliable operation even with gloves in industrial settings |
| Multiple Communication Ports | Easy integration with various PLCs and automation systems (Modbus, Ethernet) |
| IP65 Front Panel | Withstands harsh environments, dust, and water spray |
| Wide Operating Temperature | Reliable performance in both hot and cold factory conditions |
8. Typical Applications
| Industry | Application Example |
|---|---|
| Discrete Manufacturing | Automotive assembly, machine control, packaging lines -9 |
| Process Manufacturing | Petrochemical, power generation, water treatment monitoring -9 |
| Building Automation | HVAC system control, lighting management -9 |
| Material Handling | Conveyor system control, warehouse terminals |
