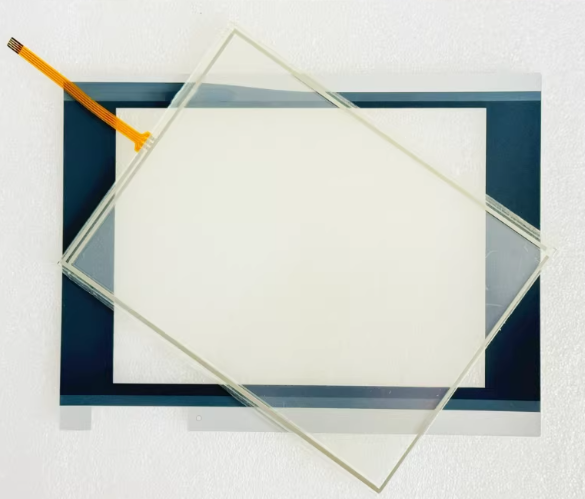

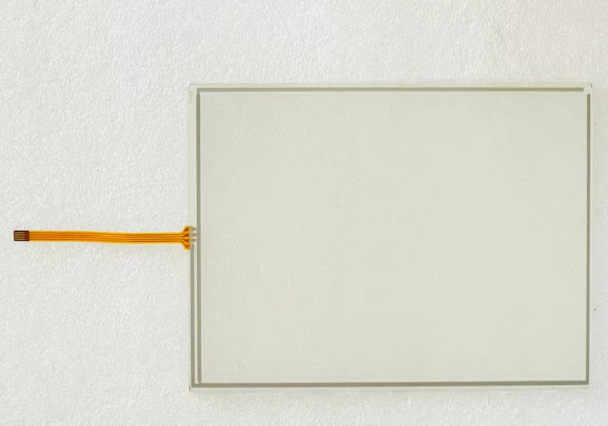

for Schneider New Touch Screen XBTGT1105
1. Display Specifications
Parameter Specification Notes
Display Type Backlit monochrome STN LCD STN (Super Twisted Nematic)
Display Size 3.8 inches Diagonal measurement
Resolution 320 × 240 pixels (QVGA) Quarter-VGA resolution
Display Colors 8 levels of grey Monochrome with grey scaling
Backlight Type LED Choice of Amber or Red
Backlight Lifetime 50,000 hours (Amber)
10,000 hours (Red) Time until half of original brightness
Brightness Control 16 levels Adjustable via touch panel
Contrast Adjustment 8 levels Adjustable via touch panel
Active Display Area (W x H) 76.7 × 57.5 mm (3.02 × 2.26 in.)
2. Touch Panel Specifications
Parameter Specification Notes
Touch Technology Analog resistive Durable, suitable for gloved operation
Touch Lifespan Not specified Industrial grade
3. Processor & Memory
Parameter Specification Notes
CPU RISC processor 200 MHz
Flash Memory (Application) 32 MB (Flash EPROM) For user application storage
SRAM (Data backup) 512 KB Backed by lithium battery for data retention during power loss
Real-Time Clock (RTC) Built-in
4. Communication Interfaces
Interface Type Notes
Serial Port (COM1) RJ45 connector Supports RS-232C or RS-485 interface, up to 115.2 kbit/s
USB USB type A master port (V1.1) For connecting peripherals or PLC terminal port communication
Download Protocols Modbus, Uni-TE, and third-party protocols Supports Mitsubishi, Omron, Allen-Bradley, Siemens protocols
5. Electrical Specifications
Parameter Specification Notes
Rated Supply Voltage 24 V DC
Supply Voltage Limits 19.2…28.8 V DC
Power Consumption 13 W
Inrush Current 60 A
Connection Type Removable screw terminal block For power supply input
6. Physical Specifications
Parameter Specification Notes
Dimensions (W × H × D) 130 × 104 × 40 mm
Panel Cutout (W × H) 118 (+1/-0) × 92.5 (+1/-0) mm
Weight 0.4 kg
Mounting Flush mounting Fixing by 4 screw clamps or 2 spring clips
Front Panel Material PPT
7. Environmental Specifications
Parameter Specification Notes
Front Panel Protection IP65 (conforming to IEC 60529)
NEMA 4X front panel (indoor use) Dust-tight and protected against water jets
Rear Panel Protection IP20 (conforming to IEC 60529)
Operating Temperature 0°C to +50°C
Storage Temperature -20°C to +60°C
Operating Humidity 0% to 85% (non-condensing)
Vibration Resistance 3.5 mm at f = 5…9 Hz
1 gn at f = 9…150 Hz Conforming to IEC 60068-2-6
Shock Resistance 15 gn for 11 ms Conforming to IEC 60068-2-27
ESD Protection 6 kV Conforming to IEC 61000-4-2 level 3
Fast Transient Immunity 2 kV Conforming to IEC 61000-4-4 level 3
Electromagnetic Field Immunity 10 V/m Conforming to IEC 61000-4-3
Immunity to Microbreaks 2 ms
Operating Altitude < 2000 m
8. Certifications & Standards
Parameter Specification Notes
Certifications UL, CSA, C-Tick, ATEX zone 2/22
Standards CSA C22.2 No 14, UL 1604, UL 508, FCC Class A, EN 61131-2, IEC 61000-6-2
Hazardous Locations UL Class 1 Division 2 T4A/T5, CSA Class 1 Division 2 T4A/T5
9. Software & Programming
Parameter Specification Notes
Configuration Software Vijeo Designer
System Embedded Languages ASCII, Chinese (simplified), Japanese (ANK/Kanji), Korean, Taiwanese (traditional Chinese)
Character Fonts 8x8, 8x16, 16x16, 32x32 pixels Width/height expandable
10. Key Features & Benefits
Feature Benefit
Compact 3.8" Form Factor Ideal for space-constrained control panels
Choice of Amber or Red Backlight Customizable visibility for different ambient conditions
200 MHz RISC Processor Responsive screen navigation and operation
32 MB Flash Memory Ample storage for applications and configurations
Battery-Backed 512 KB SRAM Preserves critical data during power interruptions
USB Port Easy data transfer, program downloads, and peripheral connectivity
IP65/NEMA 4X Front Panel Reliable operation in dusty, wet industrial environments
Wide Operating Temperature Suitable for demanding industrial conditions
Multiple Protocol Support Compatible with major PLC brands (Modicon, Mitsubishi, Omron, Allen-Bradley, Siemens)
