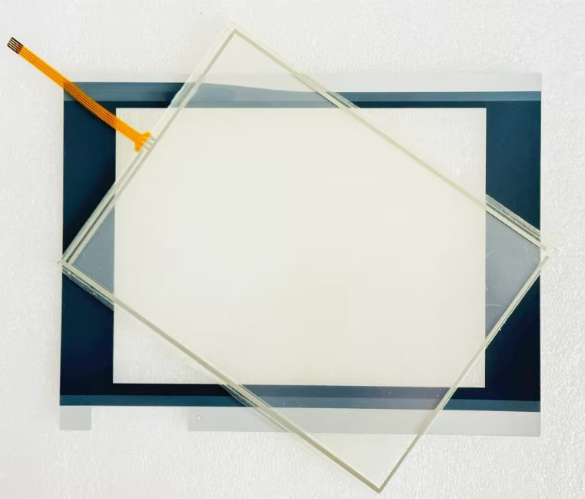

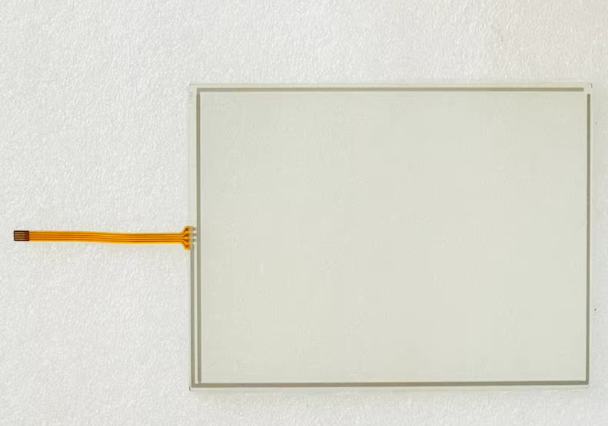

New Touch Screen XTOP08TS
1. Display Specifications
Parameter Specification Notes
Display Type 8.4" TFT Color LCD
Resolution 800 × 600 pixels SVGA
Display Colors 65,536 colors 16-bit high color
Display Area (Active) 170.9 (W) × 128.2 (H) mm
Brightness 350 cd/m² Adjustable via software
Backlight Lifetime ≥50,000 hours
Touch Technology Analog Resistive (精密电阻) Durable, suitable for gloved operation
Touch Lifespan ≥1,000,000 touches
2. Memory & Clock
Parameter Specification Notes
Flash Memory (Application) 26 MB For user application storage
Battery-Backed SRAM 256 KB For data retention during power loss
Battery Type Lithium button cell
Data Retention Time ≥2 years (at 25°C)
Real-Time Clock Built-in
3. Communication Interfaces
Interface Type Notes
Serial Ports RS-232C, RS-422/RS-485 Max baud rate: 115,200 bps
Ethernet 10/100Base-T (1 port) RJ45 connector
USB USB 1.1 (built-in)
CF Card Slot Compatible with CompactFlash cards For data transfer and backup
Profibus DP Built-in
Printer Support HP PCL Level 3 language / Micro printer
4. Electrical Specifications
Parameter Specification Notes
Input Voltage AC85~264V or DC24V Dual power input capability
Power Consumption ≤15W
Permissible Momentary Power Failure ≤10 ms
Insulation Resistance 10MΩ @ 500V DC
5. Physical Specifications
Parameter Specification Notes
Dimensions (W × H × D) 232 × 177 × 60 mm
Panel Cutout (W × H) 222 × 168 mm
Weight 1.3 kg
Housing Material ABS (Flame-resistant)
Cooling Method Natural air circulation (fanless)
6. Environmental Specifications
Parameter Specification Notes
Front Panel Protection IP65F Dust-tight and protected against water jets
Operating Temperature 0°C to +50°C
Storage Temperature -10°C to +60°C
Operating Humidity ≤85% RH (non-condensing)
Vibration Resistance 10 ≤ F <25Hz (2G) X, Y, Z direction for 30 minutes
Noise Immunity 1500Vp-p (Pulse width 1μs)
ESD Protection ±6kV
Shock Resistance 10G X, Y, Z directions, 3 times each
Grounding Class 3 (≤100Ω)
Corrosion Immunity Free from corrosive gases
7. Key Features & Benefits
Feature Benefit
8.4" SVGA TFT Display Clear, 65,536-color visualization with 800×600 resolution
26 MB Flash Memory Ample storage for complex projects and applications
Multiple Communication Ports RS232/422/485, Ethernet, USB, CF card, and built-in Profibus DP for flexible connectivity
IP65F Front Panel Reliable operation in dusty, wet industrial environments
Wide AC/DC Power Input Compatible with both AC (85-264V) and DC (24V) power sources
Built-in Printer Support Direct connection to HP PCL printers or micro printers
Data Management Features Data logging, recipe management, and报表 generation capabilities
Fanless Cooling Reliable long-term operation with no moving parts
