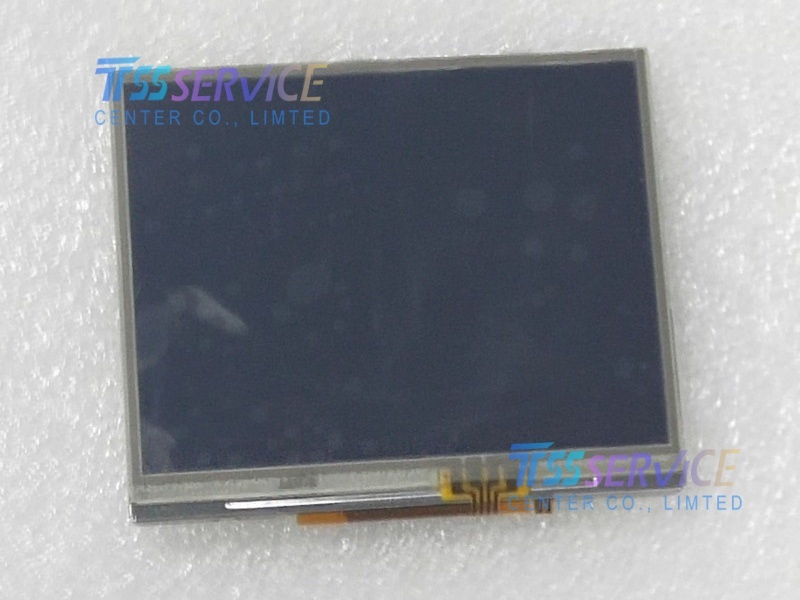

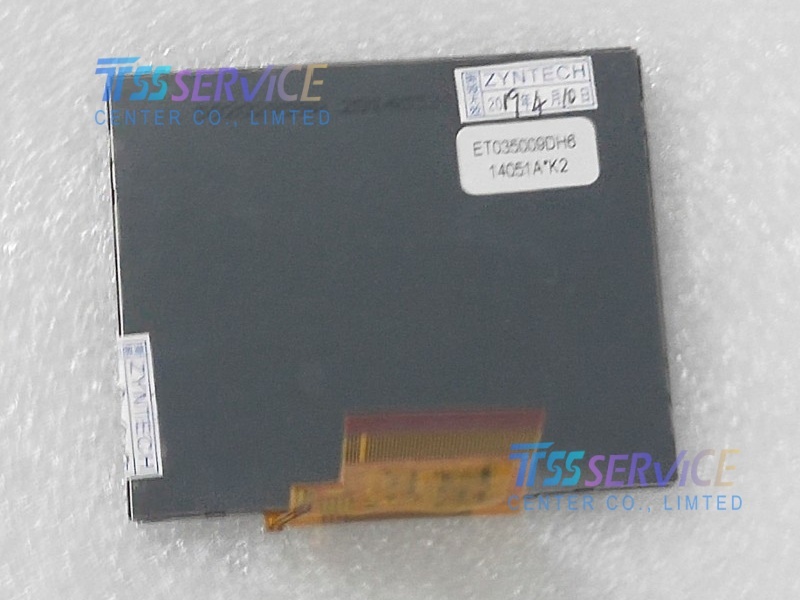

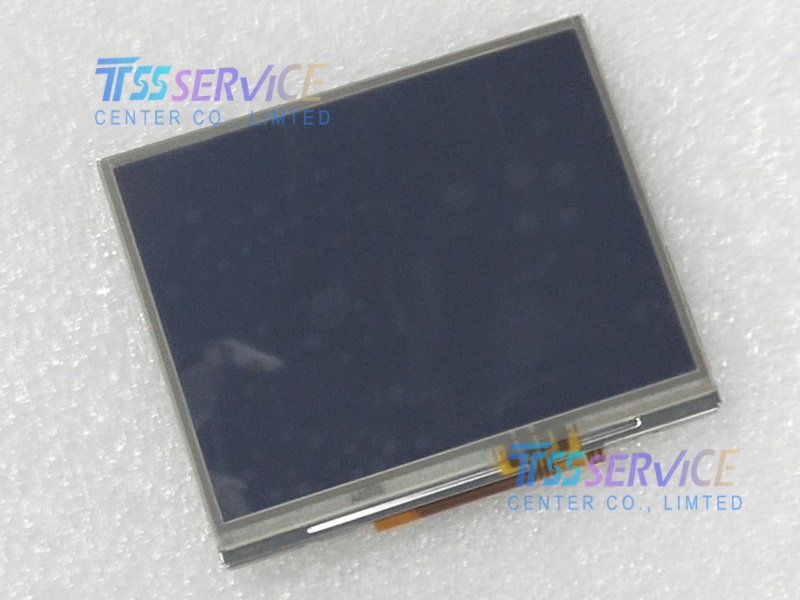

EDT 3.5inch LCD Panel Screen ET035009DH6 For Industrial

Name: EDT 3.5inch LCD Panel Screen ET035009DH6 For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: ET035009DH6
Price: 75 USD
Availability: InStock

SKU: ET035009DH6

Condition: New
Warranty: 90 days
Shipping: DHL/ Fedex/ 4PX express/ SF express
Lead time: 1-3 days
Packaging: Bubble pad+Paper box

0.0 (0 Reviews)

0 Sold

~~$80.00~~ $75.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

ET035009DH6 LCD Display is a 3.5-inch LCD screen from EDT brand with touch. It has a resolution of 320x240 pixels, a input voltage of 3.3V, and a working frequency of 60Hz. With a contrast ratio of 400:1 and a wide operating temperature, this LCD screen is mainly used in these fields: Factory automation equipment field.

SPECIFICATION

Number of dots	320(RGB)×240, 4:3, QVGA	Pixel Format	RGB Vertical Stripe
Active Area	70.08×52.56 mm (H×V)	Outline Area	76.8×63.8×4.9 mm (H×V×D)
Luminance	350 cd/m² (Typ.)	Contrast Ratio	400:1 (Typ.) (TM)
Viewing Angle	75/75/55/75 (Typ.)(CR≥10)	Response (ms)	15/35 (Typ.)(Tr/Td)
