1，Condition: New，Grade A

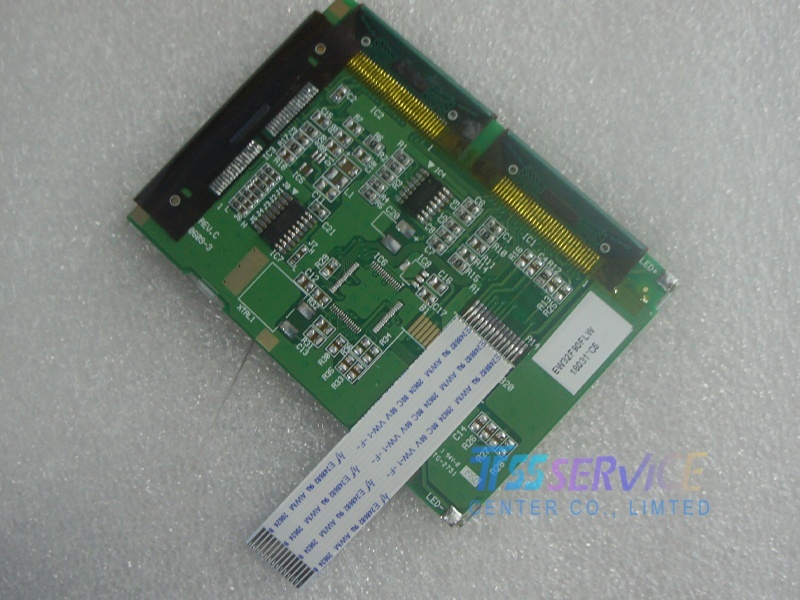

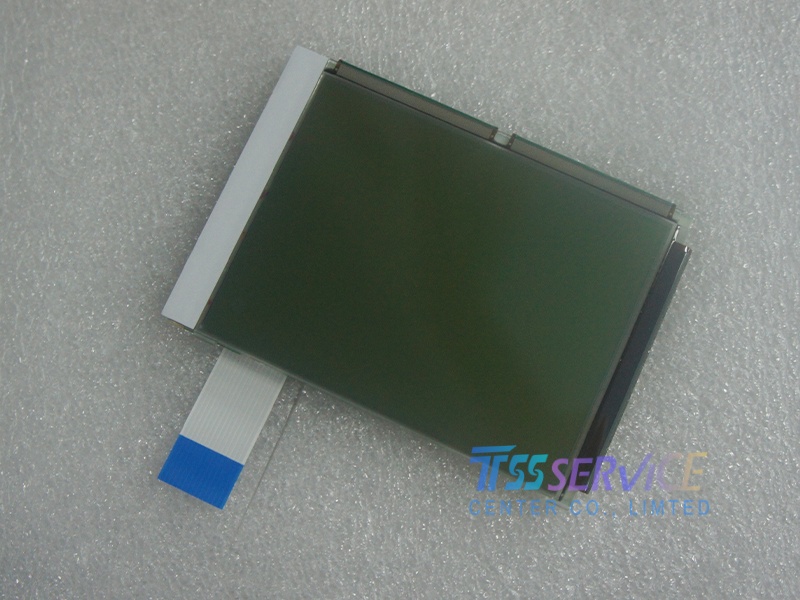

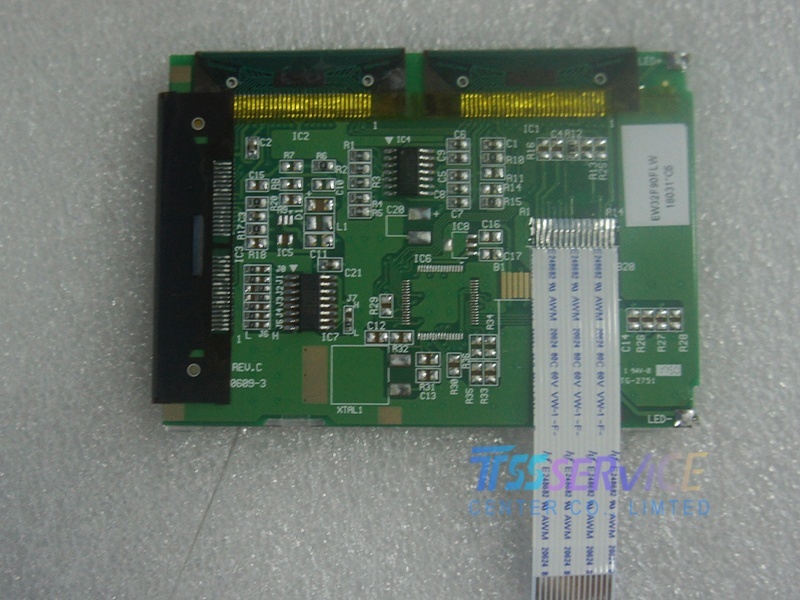

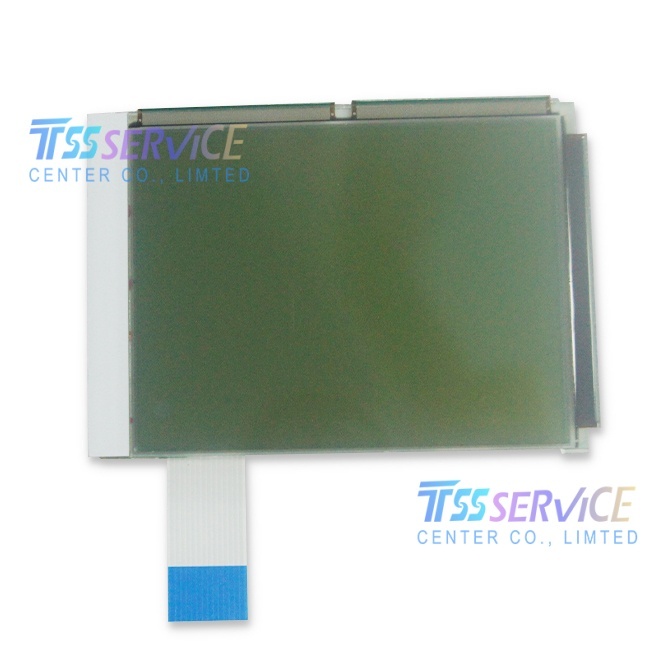

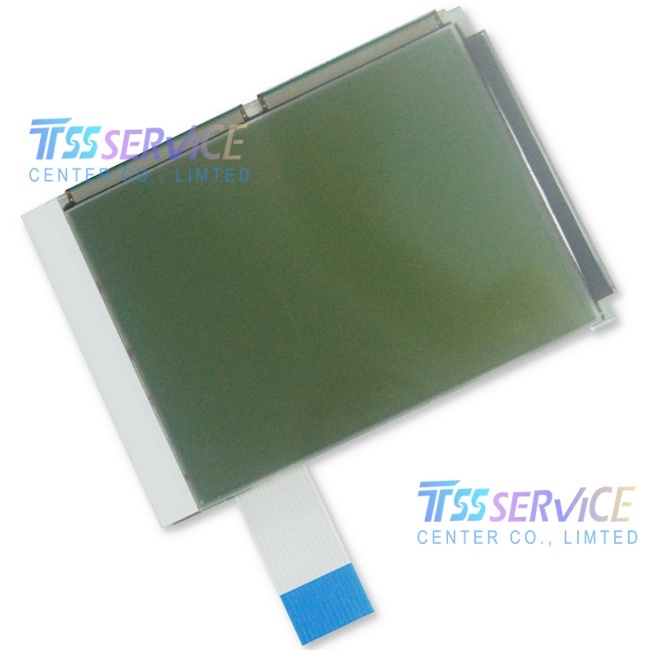

2，Description: EW32F90FLW 3.8 inch LCD Display Panel
3，Warranty: 90 Days
4，Lead Time: 1-3 Working days
5，Shipping: DHL ,FedEx, EMS , SF express or by air.
6，Packaging: Bubble pad+Paper box
7，Note: All LCD display panels will be full tested before shipping.
| Parameter | Description |
|---|---|
| Brand | EDT |
| Model P/N | EW32F90FLW |
| Diagonal Size | 3.8" |
| Panel Type | FSTN-LCD, LCM |
| Resolution | 320×240, QVGA 105PPI |
| Pixel Format | Rectangle |
| Active Area | 76.79(W)×57.59(H) mm |
| Bezel Opening | 78.8(W)×59.6(H) mm |
| Outline Size | 93.8(W)×66.6(H)×6.5(D) mm |
| Luminance | 10 cd/m² (Min.) |
| Contrast Ratio | 5 : 1 (Min.) (TM) |
| Viewing Angle | 50 (Min.)(CR≥2.0)(Φ1-Φ2) |
| Response | 330/330 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | STN, Black/White (Positive), Transflective |
| Color Depth | Monochrome |
| Backlight | WLED, No Driver |
| Refresh Rate | 75Hz |
| Touchscreen | Without |
| Signal Type | Parallel Data (1ch, 4-bit), 14 pins FPC |
| Voltage Supply | 3.0V (Typ.) |
| Storage Temperature | -20 ~ 70 °C |
| Operating Temperature | -20 ~ 70 °C |
Industrial Control Panels: Suitable for factory automation and process control interfaces requiring monochrome displays.
Outdoor Equipment: Transflective technology enables sunlight-readable displays for portable instruments and outdoor terminals
Test & Measurement Instruments: Ideal for laboratory and field testing equipment.
Medical Devices: Can be used in medical monitoring and diagnostic equipment.
Embedded Systems: Compact size makes it suitable for space-constrained industrial applications.
