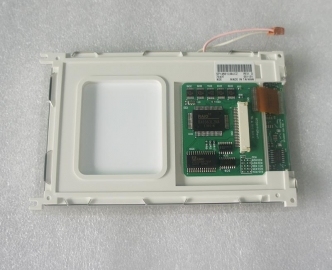

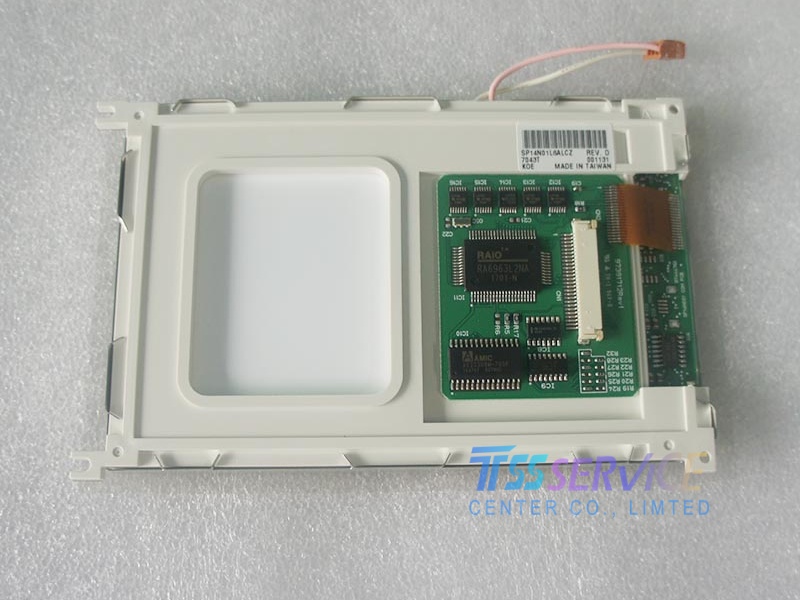

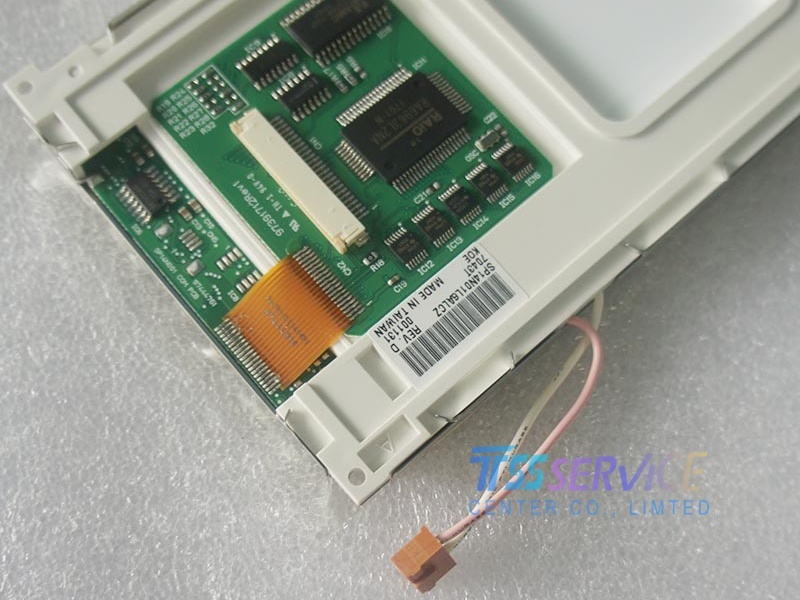

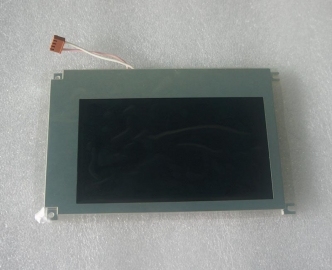

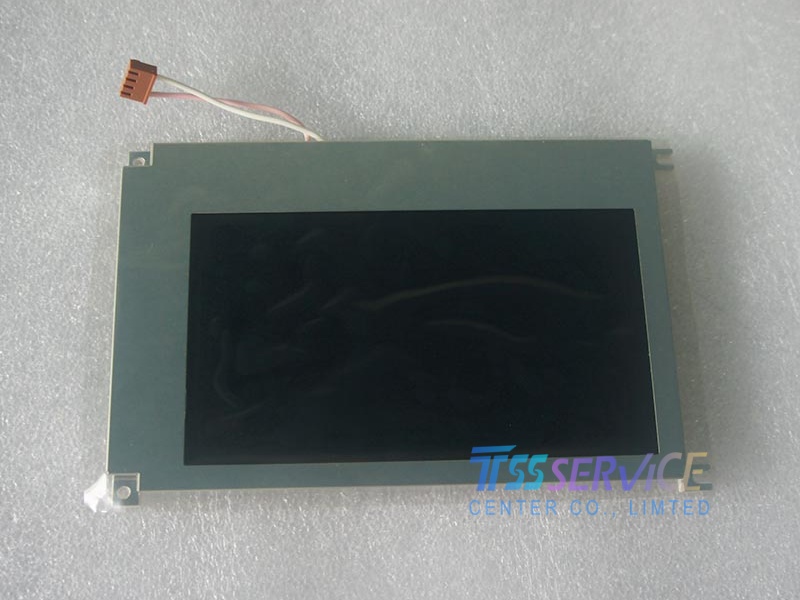

SP14N01L6ALCZ KOE NEW 5.1 inch 240x128 FSTN-LCD Display Panel for Industrial
Product Description:
The SP14N01L6ALCZ is a high-quality 5.1-inch FSTN monochrome LCD display module from Hitachi (KOE), ideal for industrial and embedded applications requiring reliable performance and clear visibility. Featuring a 240×128 resolution, this transmissive display delivers sharp white-on-black graphics with excellent contrast, making it suitable for use in demanding environments. Built with a durable 159.4 × 101 × 11 mm form factor and equipped with a WLED backlight for long-term operation, the SP14N01L6ALCZ offers stable functionality under extreme temperatures, supporting operating conditions from -10°C to 60°C. This original new-in-box LCD module is perfect for applications such as industrial control systems, medical instrumentation, and human-machine interfaces (HMI), where ruggedness and readability are essential.
| Brand |
KOE |
| Model |
SP14N01L6ALCZ |
| Panel-type |
a-Si TFT-LCD, LCM |
| Size |
5.1" |
| Resolution |
240×128 50PPI |
| Active Area |
119.98(W)×63.98(H) mm
|
| Outline Size |
159.4(W)×101(H)×11(D) mm
|
| Luminance |
200 cd/m² (Typ.) |
| Contrast Ratio |
20:1 (Typ.) (TM) |
| Viewing Angle |
40/40/35/55 (Typ.)(CR≥2) |
| Display Colors |
Monochrome |
| Lamp Type |
WLED [1S7P] , 40K hours , W/O Driver |
| Signal Interface |
8-bit parallel 26 pins Connector |
| Touch Screen |
Without |
| Response |
330/150 (Typ.)(Tr/Td) |
| Input Voltage |
5.0V (Typ.) |
| Operating Temp |
-10 ~ 60 °C |
| Storage Temp |
-20 ~ 70 °C |
Specific Applications:
The SP14N01L6ALCZ LCD module is widely used in industrial automation and embedded systems where durability and readability are critical. Typical applications include CNC machine control panels (such as FANUC, Siemens, and Mitsubishi systems), medical diagnostic equipment, test and measurement instruments, and monitoring devices. Its high-contrast FSTN display ensures excellent visibility even under bright ambient lighting, while the wide operating temperature range makes it suitable for both indoor and outdoor industrial environments. Additionally, this display is commonly integrated into handheld PDAs, self-service kiosks, and transportation control units, offering a reliable solution for user interface needs across multiple sectors.
Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
