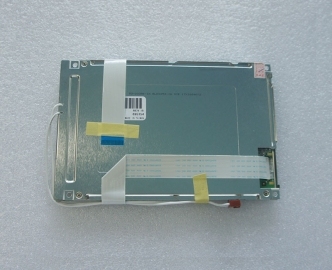

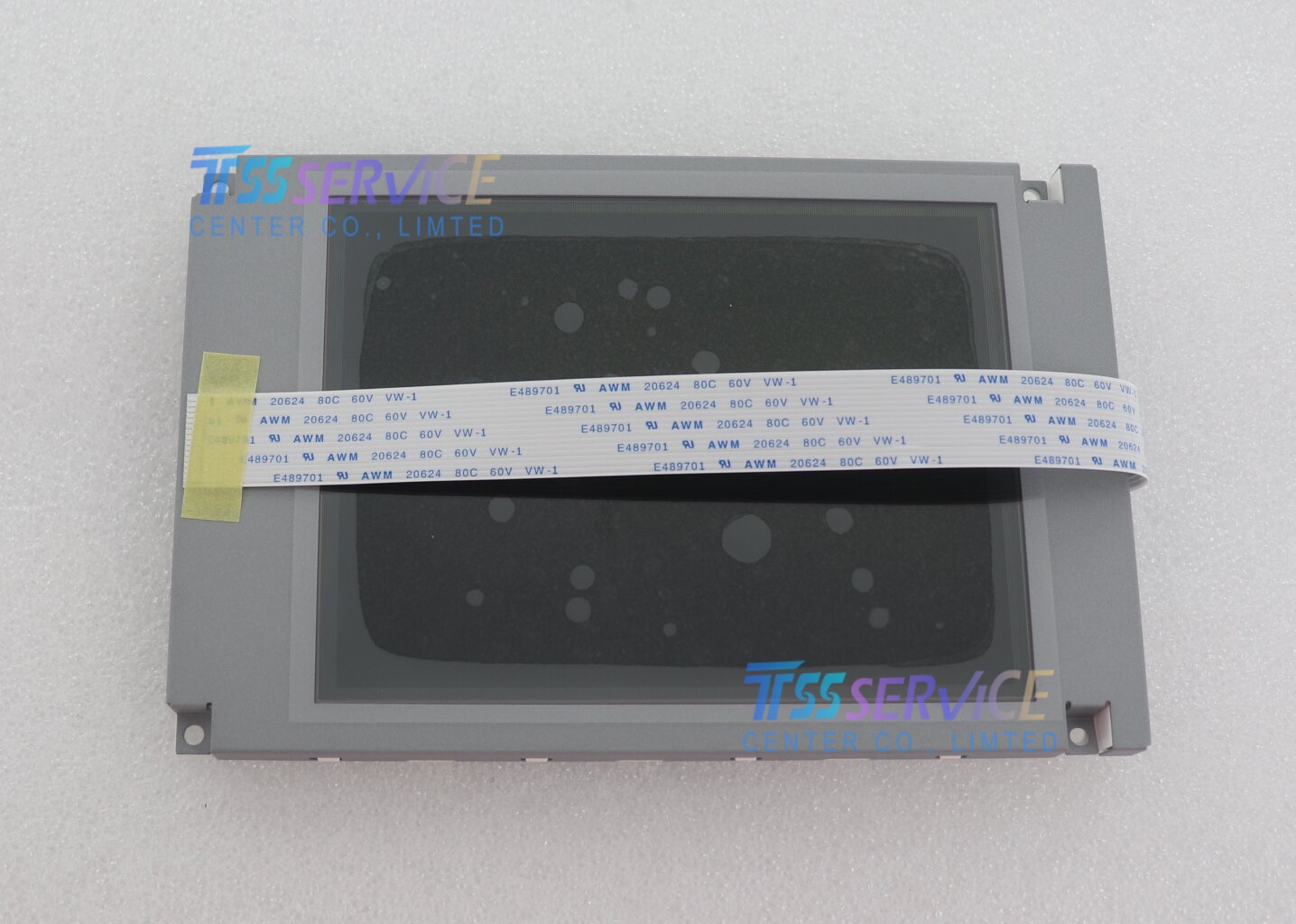

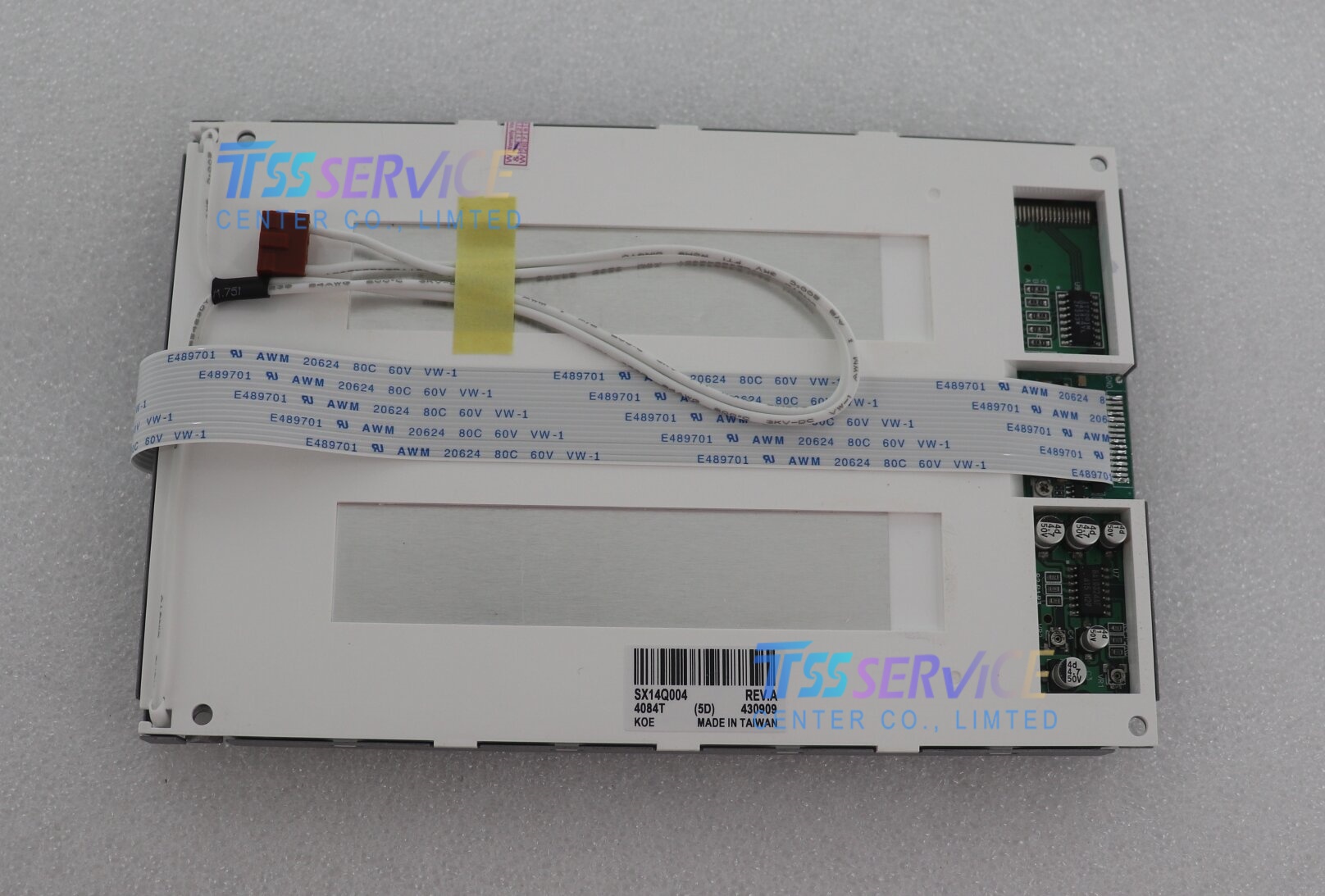

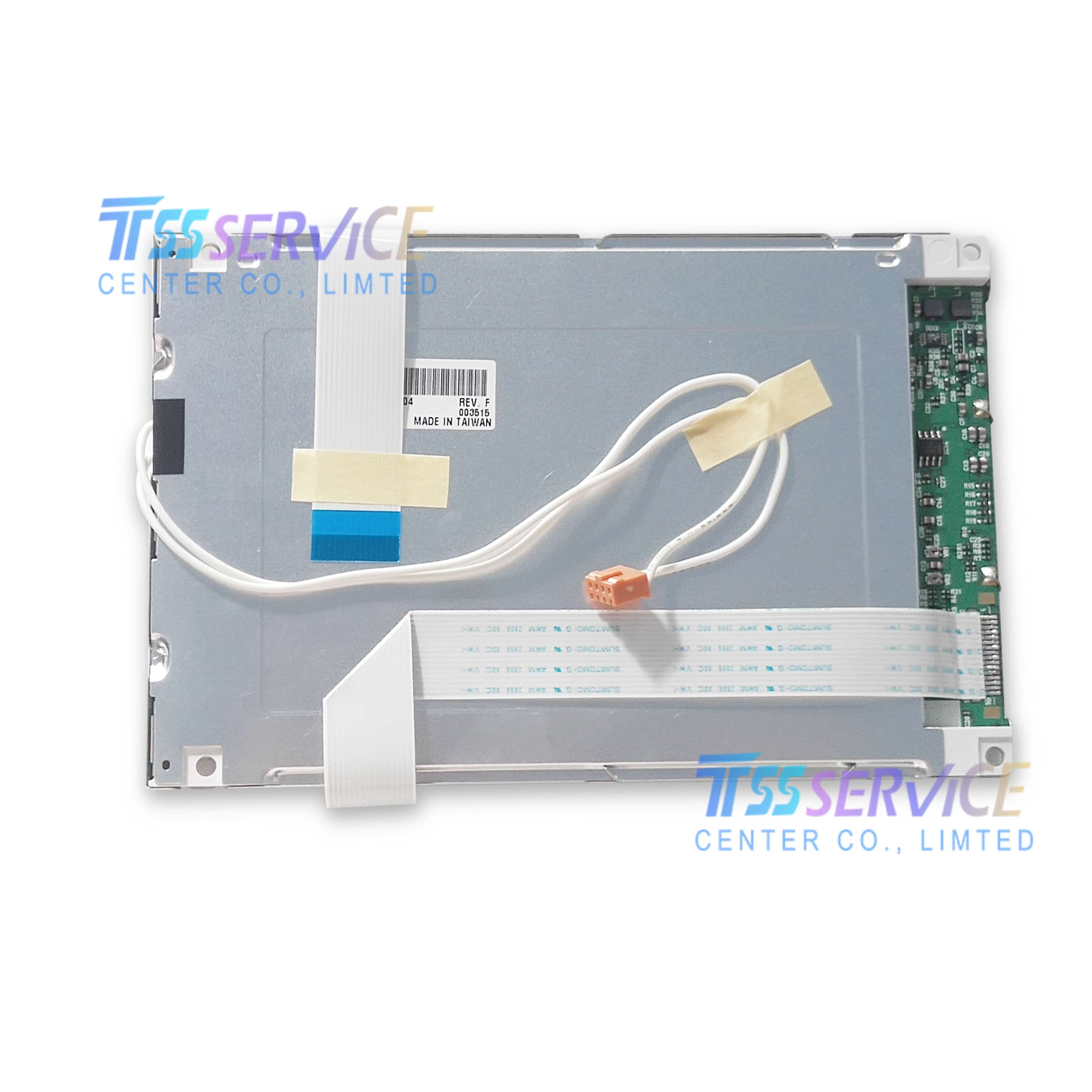

Name: lcd screen SX14Q004 5.7inch 320*240 Industry lcd panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: SX14Q004
Price: 136 USD
Availability: InStock

lcd screen SX14Q004 5.7inch 320*240 Industry lcd panel

SKU: SX14Q004

Model :SX14Q004
Size:5.7"
Resolution:320(RGB)×240, QVGA 70PPI
Interface Type:Parallel Data (1ch, 8-bit) , 16 pins FPC
Pixel Format:RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$138.00~~ $136.00

Received successfully

Coupon Code

CONTINUE SHOPPING

KOE LCD screen SX14Q004 : Main specifications
SX14Q004 is a 5.7-inch industrial TFT-LCD panel offering a clear QVGA resolution of 320 × 240 pixels. Engineered for reliability and durability in demanding environments, this panel provides sharp text and graphics, making it suitable for industrial control systems, handheld terminals, medical instruments, and portable devices. Its robust construction ensures stable operation and long-term performance in challenging conditions. This industrial LCD panel delivers consistent visual quality and dependable functionality, making it an excellent choice for professional applications requiring a compact, resilient, and high-performance display solution.

Brand	KOE
Model	SX14Q004
Panel-type	CSTN-LCD, LCM
Size	5.7"
Resolution	320(RGB)×240, QVGA 70PPI
Active Area	115.2(W)×86.4(H) mm
Outline Size	167(W)×109(H) ×9.2(D) mm
Brightness	200 cd/m² (Typ.)
Contrast Ratio	40:1 (Typ.) (TM)
Viewing Angle	45/45/35/45 (Typ.)(CR≥2)
Display Colors	Color 46% NTSC
Lamp Type	1 pcs CCFL , 50K hours
Signal Interface	Parallel Data (1ch, 8-bit) , 16 pins FPC
Touch Screen	Without
Response	250/200 (Typ.)(Tr/Td)
Input Voltage	3.3V (Typ.)
Operating Temp	0 ~ 60 °C
Storage Temp	-20 ~ 70 °C
