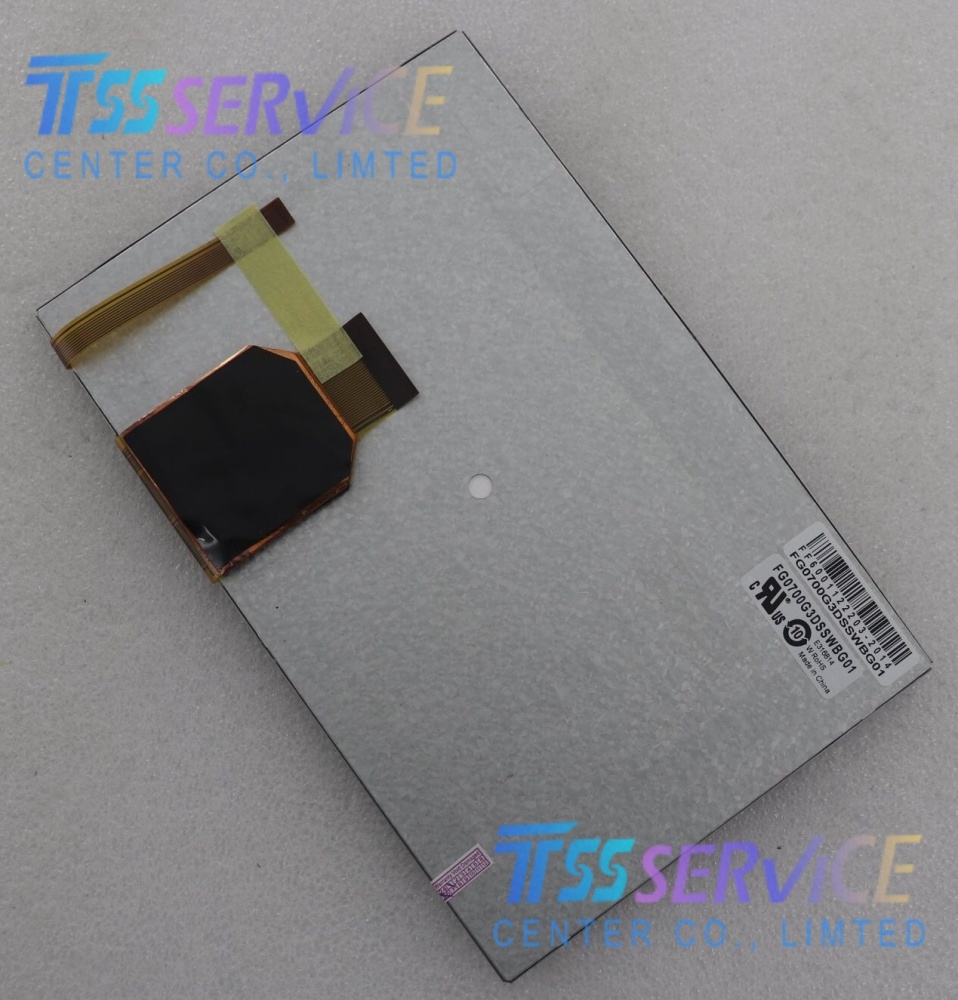

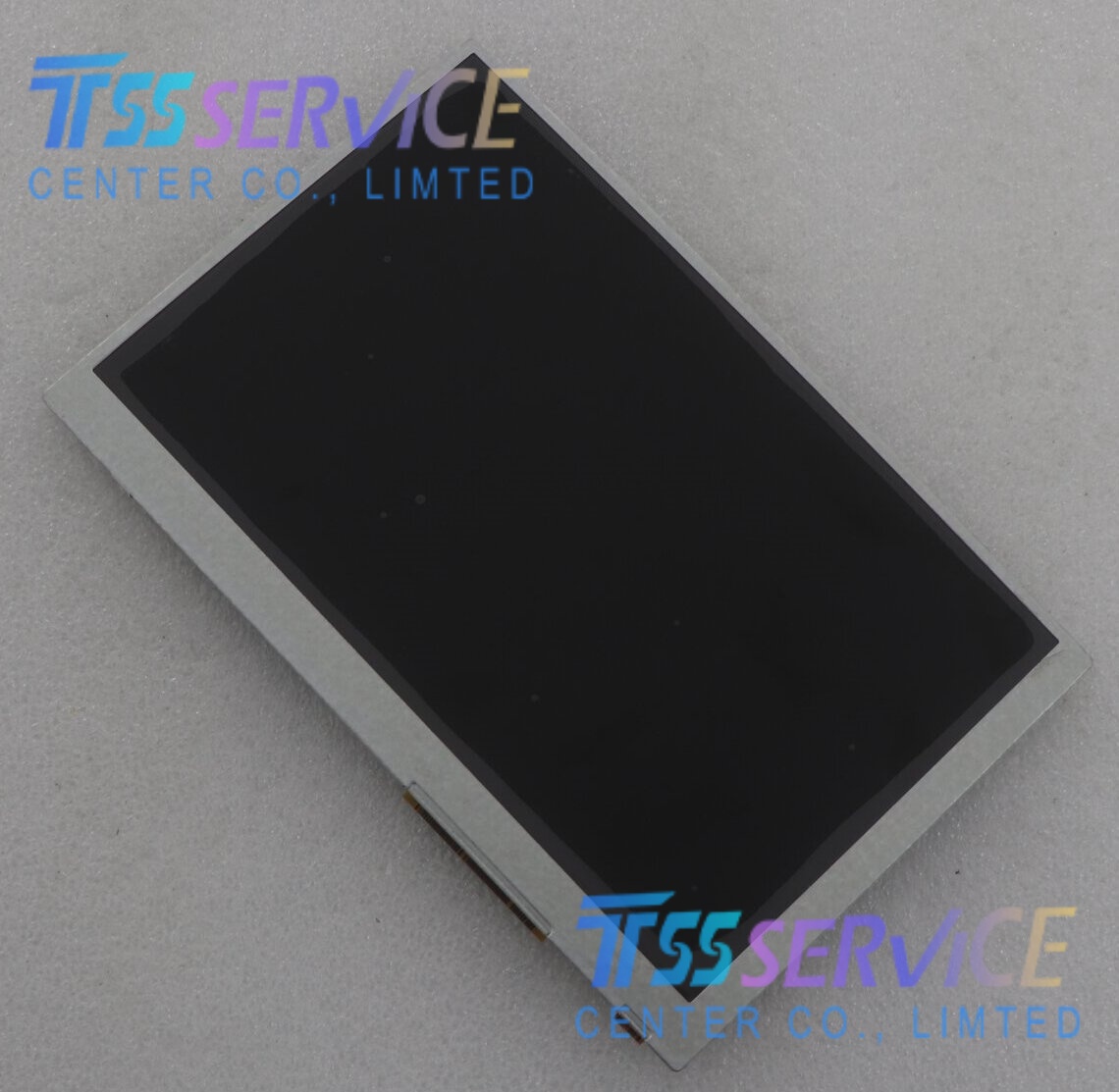

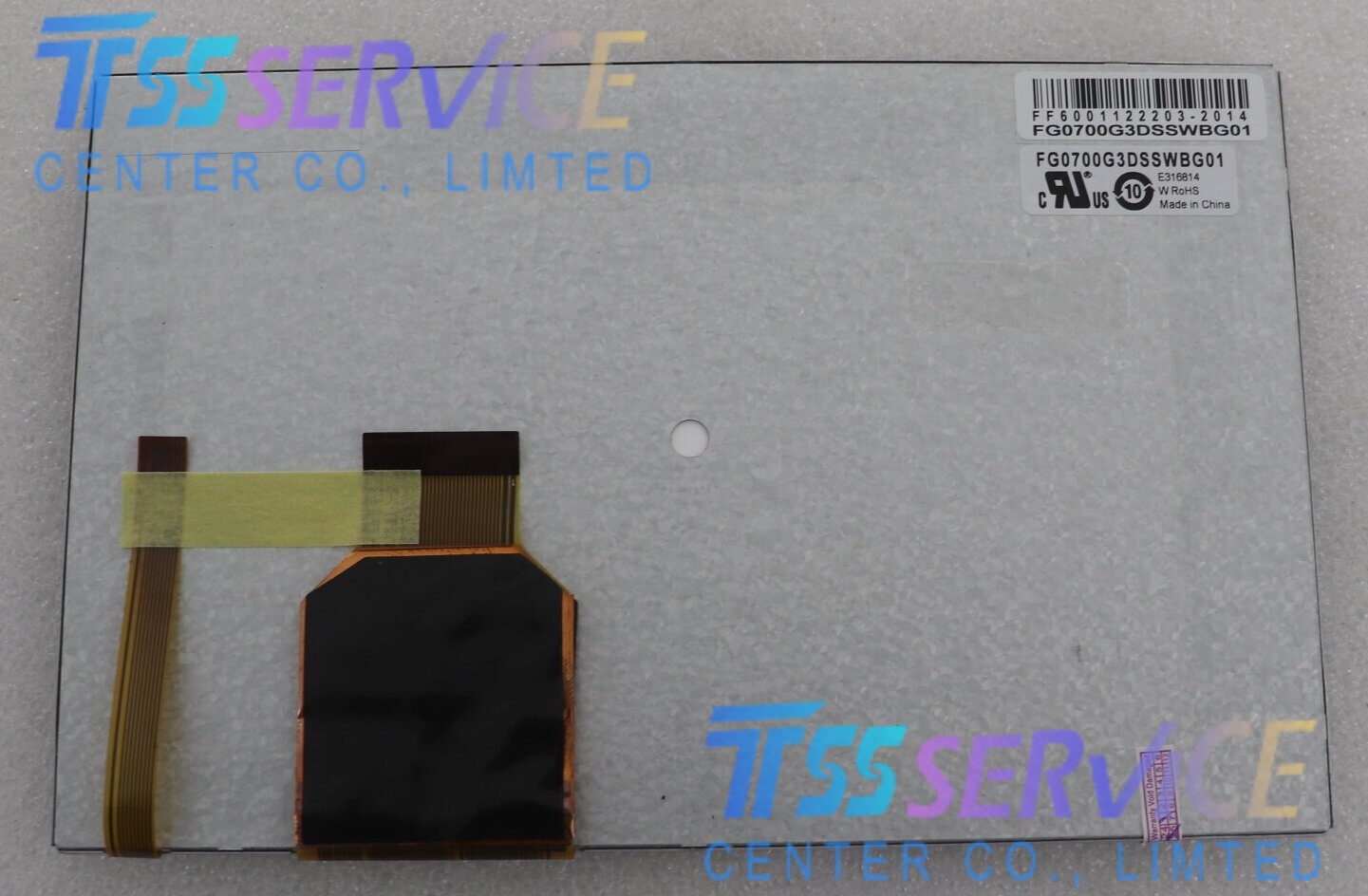

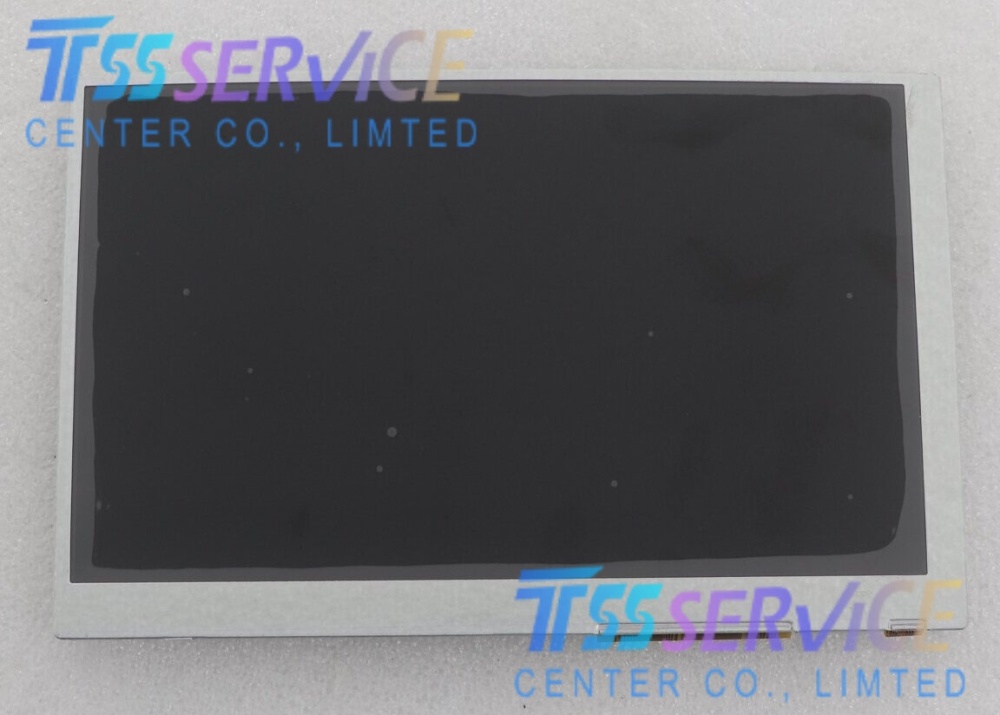

Data Image FG0700G3DSSWBG01 7 Inch 800×480 TFT LCD Panel Industrial HMI Display Screen
| Item |
Detailed Parameter |
| Manufacturer Brand |
Data Image |

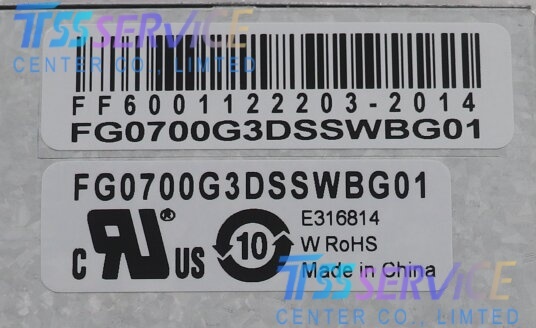

| Model Number |
FG0700G3DSSWBG01 |
| Diagonal Display Size |
7.0 Inch |
| Panel Type |
a-Si TFT-LCD, Transmissive LCM Module |
| Native Resolution |
800(RGB) × 480 (WVGA), 15:9 Aspect Ratio, 133 PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Display Area |
152.4(W) × 91.44(H) mm |
| Visible View Area |
154.9(W) × 93.9(H) mm |
| Overall Outline Dimension |
165(W) × 106.4(H) × 3.6(D) mm |
| Typical Net Weight |
132g |
| Surface Treatment |
Antiglare Matte, 3H Hard Anti-scratch Coating |
| Typical Luminance (Brightness) |
350 cd/m² |
| Typical Contrast Ratio |
400:1 (TM Mode) |
| Display Operating Mode |
TN, Normally White, Transmissive |
| Supported Display Colors |
16.7M True Colors |
| Refresh Frame Rate |
60Hz |
| Touch Panel Function |
Without Touch Screen |
| Backlight Light Source |
3S9P Side-entry WLED, 30,000 Hours Lifespan, Without Built-in LED Driver IC |
| Signal Interface Type |
Parallel RGB (1 Channel, 8-bit TTL), 40 Pins FPC Connector |
| Typical Supply Voltage |
3.3V |
| Operating Temperature Range |
-20 ℃ ~ +70 ℃ |
| Storage Temperature Range |
-30 ℃ ~ +80 ℃ |
