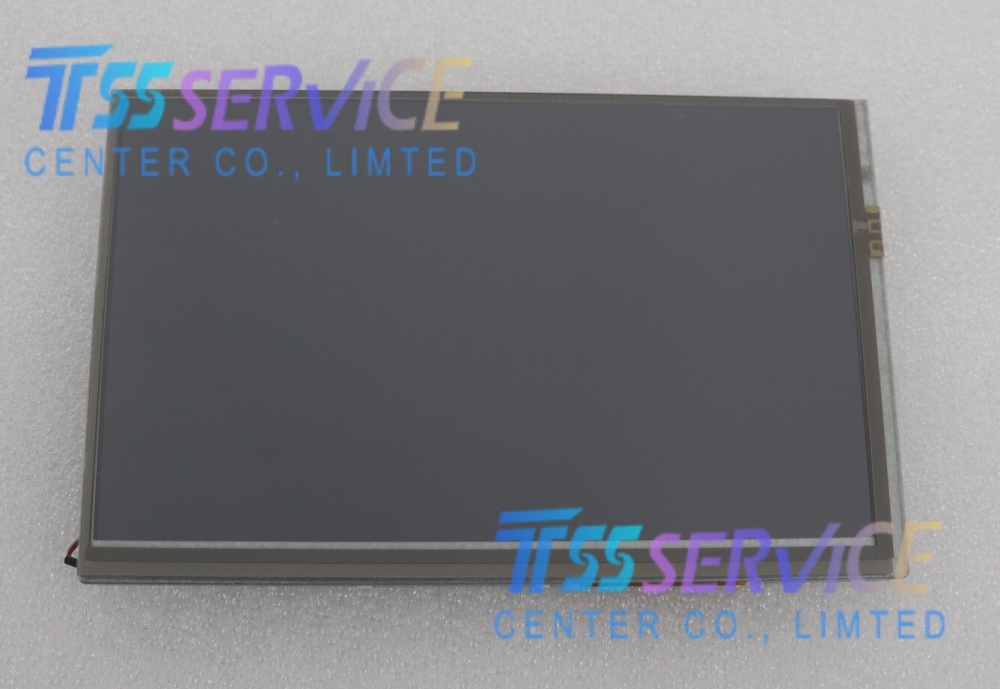

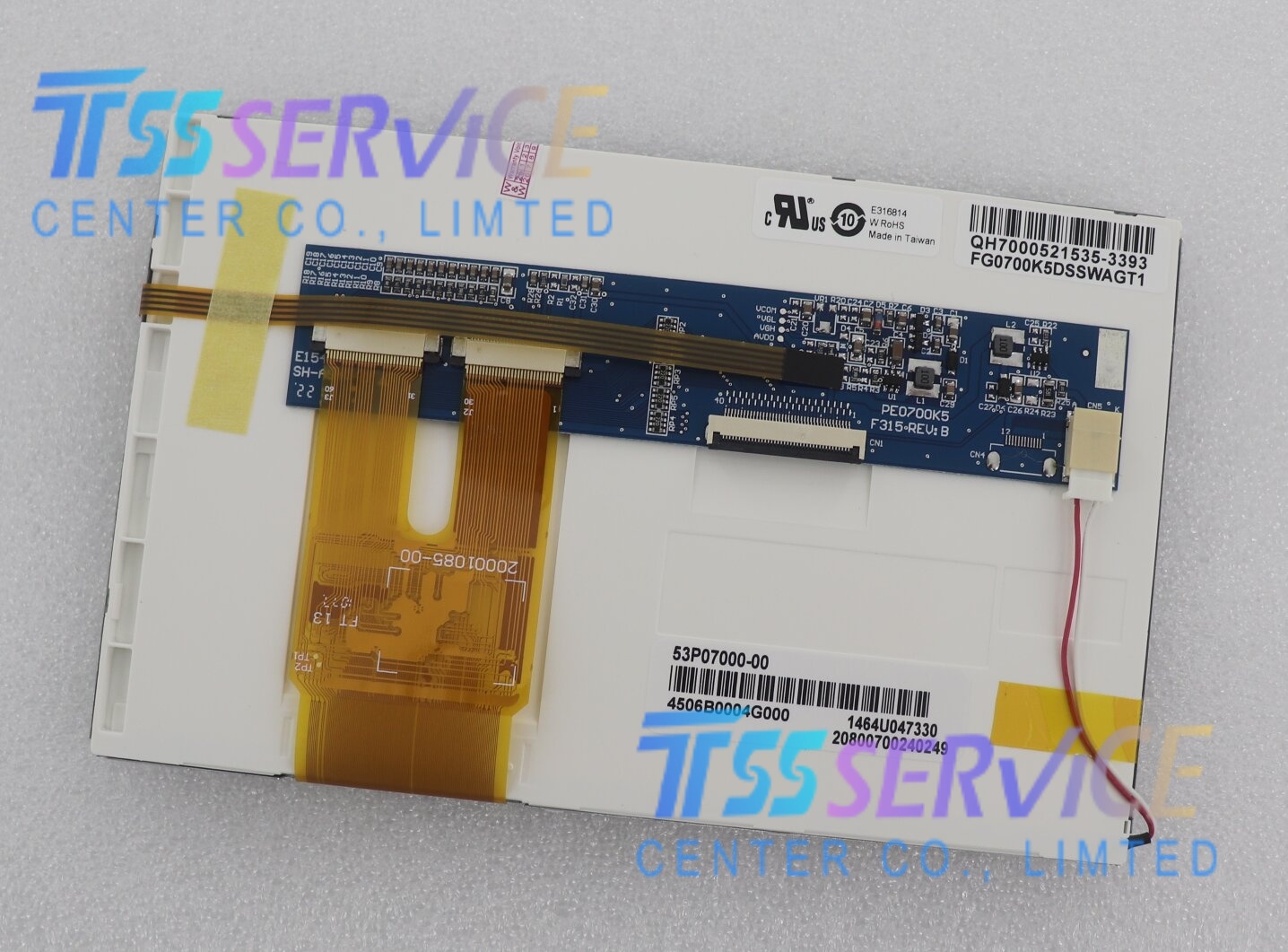

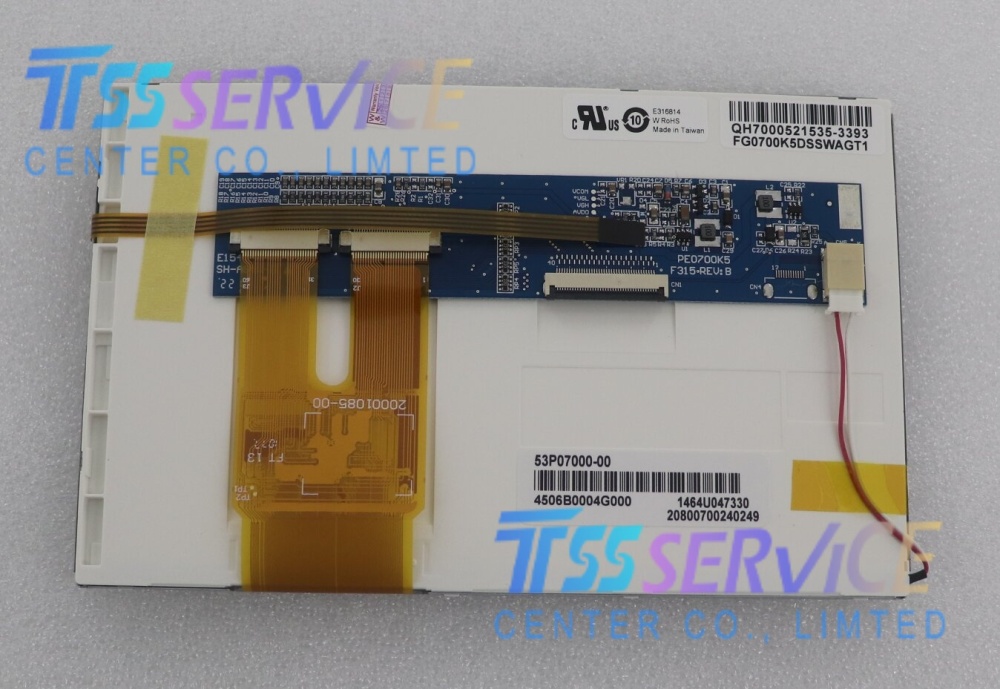

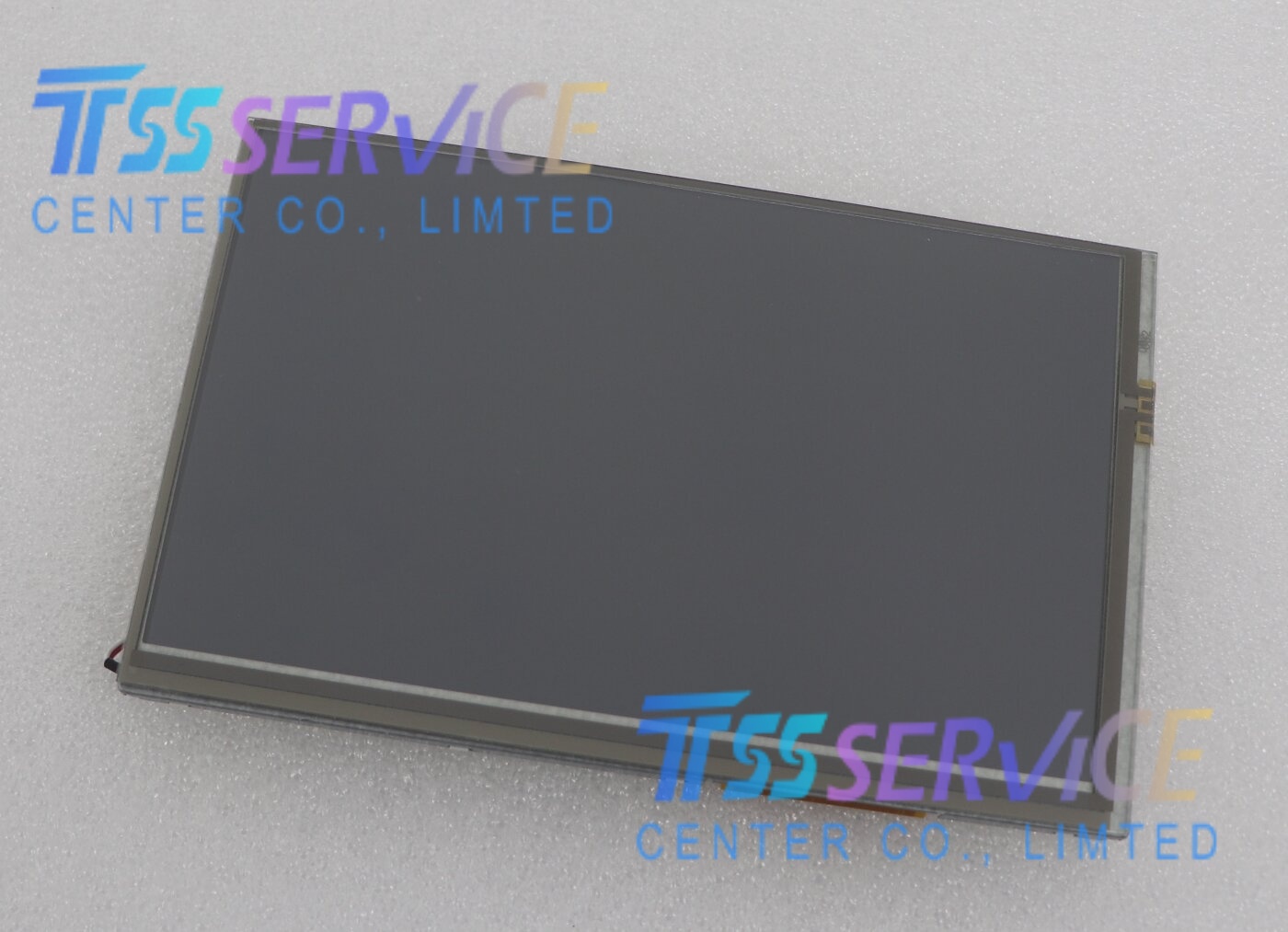

Data Image FG0700K5DSSWAGT1 7 Inch TFT LCD Screen 800×480 Display Panel for Industrial

SKU: FG0700K5DSSWAGT1
Model Number: FG0700K5DSSWAGT1
Brand: DATA IMAGE
Diagonal Size: 7.0 Inch
Native Resolution: 800(RGB) × 480 WVGA, 15:9 Aspect Ratio, 133 PPI
Panel Technology: a-Si TN TFT-LCD
0.0 (0 Reviews)
0 Sold
$68.00 $64.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Data Image FG0700K5DSSWAGT1 7 Inch TFT LCD Screen 800×480 Display Panel for Industrial
  • Data Image FG0700K5DSSWAGT1 7 Inch TFT LCD Screen 800×480 Display Panel for Industrial
  • Data Image FG0700K5DSSWAGT1 7 Inch TFT LCD Screen 800×480 Display Panel for Industrial
  • Data Image FG0700K5DSSWAGT1 7 Inch TFT LCD Screen 800×480 Display Panel for Industrial
  • Data Image FG0700K5DSSWAGT1 7 Inch TFT LCD Screen 800×480 Display Panel for Industrial
  • Data Image FG0700K5DSSWAGT1 7 Inch TFT LCD Screen 800×480 Display Panel for Industrial
  • Data Image FG0700K5DSSWAGT1 7 Inch TFT LCD Screen 800×480 Display Panel for Industrial
  • Data Image FG0700K5DSSWAGT1 7 Inch TFT LCD Screen 800×480 Display Panel for Industrial
  • Data Image FG0700K5DSSWAGT1 7 Inch TFT LCD Screen 800×480 Display Panel for Industrial
  • Data Image FG0700K5DSSWAGT1 7 Inch TFT LCD Screen 800×480 Display Panel for Industrial
1/1
  • Data Image FG0700K5DSSWAGT1 7 Inch TFT LCD Screen 800×480 Display Panel for Industrial
  • Data Image FG0700K5DSSWAGT1 7 Inch TFT LCD Screen 800×480 Display Panel for Industrial
  • Data Image FG0700K5DSSWAGT1 7 Inch TFT LCD Screen 800×480 Display Panel for Industrial
  • Data Image FG0700K5DSSWAGT1 7 Inch TFT LCD Screen 800×480 Display Panel for Industrial
  • Data Image FG0700K5DSSWAGT1 7 Inch TFT LCD Screen 800×480 Display Panel for Industrial
  • Description
Data Image FG0700K5DSSWAGT1 7 Inch TFT LCD Screen 800×480 Display Panel for Industrial
Item Specification Parameter
Model Number FG0700K5DSSWAGT1
Brand DATA IMAGE
Diagonal Size 7.0 Inch
Native Resolution 800(RGB) × 480 WVGA, 15:9 Aspect Ratio, 133 PPI
Panel Technology a-Si TN TFT-LCD, Normally White Transmissive
Backlight 3S8P Built-in WLED, Lifespan ≥20,000 Hours, Integrated LED Driver
Typical Brightness 250 cd/m²
Contrast Ratio 400:1 (Typical)
Viewing Angle L/R/U/D (CR≥10) 70° / 70° / 60° / 60°
Response Time Tr/Td 5ms / 11ms
Refresh Rate 60Hz
Color Depth 262K Colors (6-bit Single Channel)

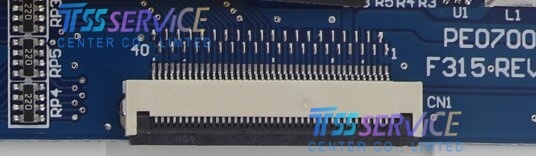

Signal Interface Parallel RGB 6-bit, 40Pin FPC Connector
Logic Supply Voltage 3.3V Standard Industrial Voltage
Active Display Area 152.4 (W) × 91.44 (H) mm
Overall Outline Dimension 165 (W) × 104.44 (H) × 11.06 (T) mm
Net Weight Approx 170g
Surface Treatment Matte Anti-Glare 3H Hard Coating, Anti-scratch
Operating Temperature -10℃ ~ +60℃
Storage Temperature -30℃ ~ +70℃

Applications

  1. Industrial HMI & Factory Automation Terminals
    Compact PLC control panels, small injection molding machine displays, packaging equipment operation screens, assembly line monitoring modules, mini industrial touch control human-machine interfaces.
  2. Automotive & Car Infotainment Navigation
    Aftermarket car central multimedia screens, commercial vehicle auxiliary navigation monitors, construction machinery cabin control displays, forklift dashboard parameter terminals.
  3. POS & Self-Service Commercial Kiosks
    Cash register POS machine display screens, small vending machine control panels, information query kiosk auxiliary modules, charging pile data display terminals.
  4. Portable Medical Diagnostic Equipment
    Mini bedside vital sign monitors, portable blood analysis devices, veterinary handheld testing instruments, medical infusion pump operation screens.
  5. Laboratory & Portable Test Instruments
    Portable environmental gas detectors, small power quality analyzers, optical inspection equipment, industrial handheld data recording terminals.
