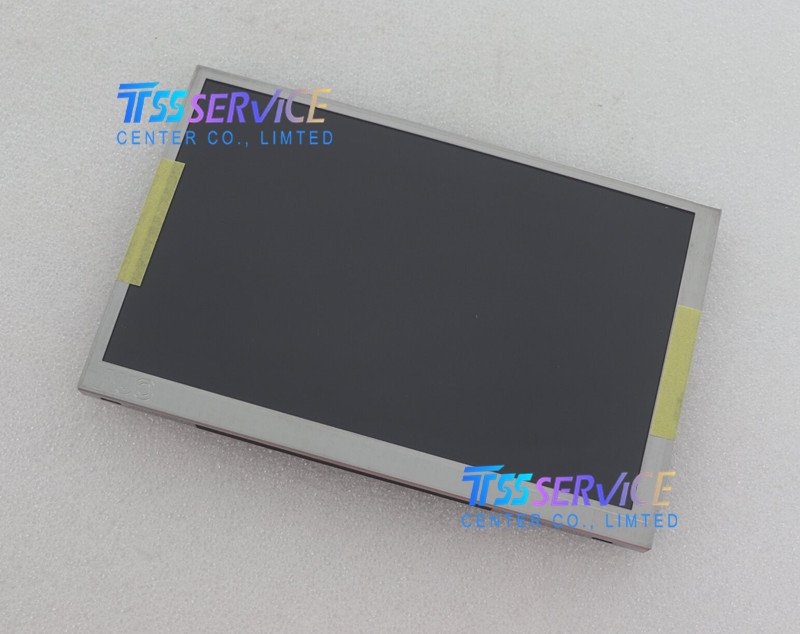

Data Image 7 inch 800×480 FG0700GEDSSWBG02 LCD Display Screen For Industrial

Name: Data Image 7 inch 800×480 FG0700GEDSSWBG02 LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: FG0700GEDSSWBG02
Price: 70 USD
Availability: InStock

SKU: FG0700GEDSSWBG02

Mode: FG0700GEDSSWBG02
Size: 7.0 inch, 15:9 widescreen
Panel Type: a-Si TFT-LCD, LCM, TN, Normally White
Resolution: 800(RGB)×480 (WVGA), 133 PPI

0.0 (0 Reviews)

0 Sold

~~$80.00~~ $70.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Data Image 7 inch 800×480 FG0700GEDSSWBG02 LCD Display Screen For Industrial

Parameter	Specification
Brand	Data Image
Model	FG0700GEDSSWBG02
Size	7.0 inch, 15:9 widescreen
Panel Type	a-Si TFT-LCD, LCM, TN, Normally White
Resolution	800(RGB)×480 (WVGA), 133 PPI
Brightness	560 cd/m² (Typ.)
Contrast Ratio	560:1 (Typ.)
Viewing Angle	70°/70°/60°/50° (U/D/L/R, CR≥10)
Display Colors	262K colors (6-bit)
Backlight	WLED, integrated driver, ~50,000 hrs lifetime
Interface	LVDS (2-ch, 20 pins), 3.3V power
Touch Screen	4-wire resistive touch
Active Area	152.4 × 91.44 mm
Overall Dimension	165 × 106 mm, max thickness 9.5 mm
Surface Treatment	Anti-glare (AG), 3H hard coating
Weight	~200 g (without touch)
Operating Temperature	-20°C ~ 70°C
Storage Temperature	-30°C ~ 80°C
Compliance	RoHS

Typical Applications

Industrial Control: HMI, PLC panels, industrial touch terminals, factory automation displays.
Automotive Displays: In-vehicle infotainment, rear-seat monitors, instrument clusters, commercial vehicle dashboards.
Smart Home & Appliances: Smart refrigerators, washing machines, kitchen equipment control panels.
Medical Devices: Patient monitors, portable diagnostic devices, medical HMI (non-sterile area).
Commercial & Kiosk: Retail POS systems, vending machines, interactive kiosks, public information displays.
