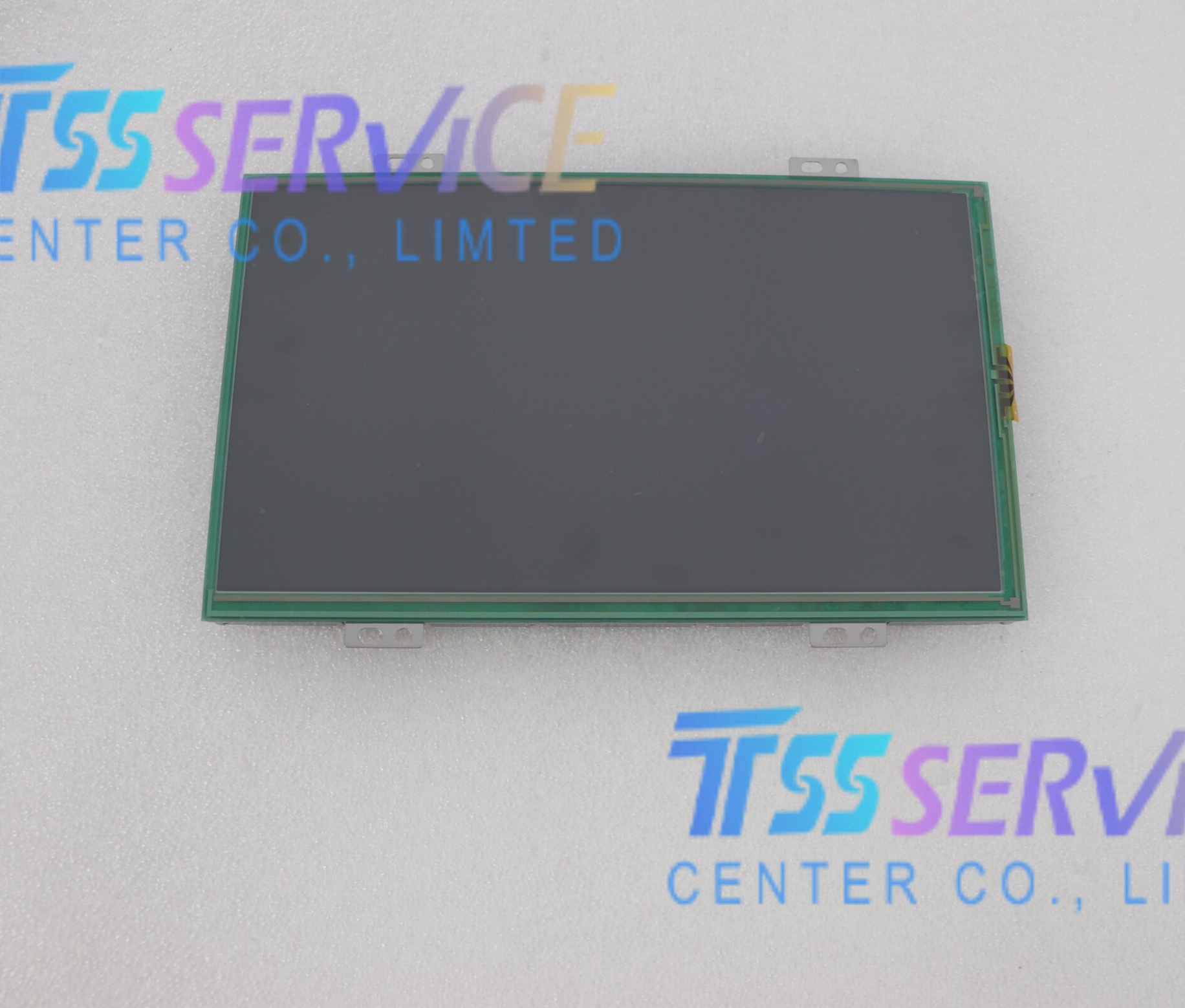

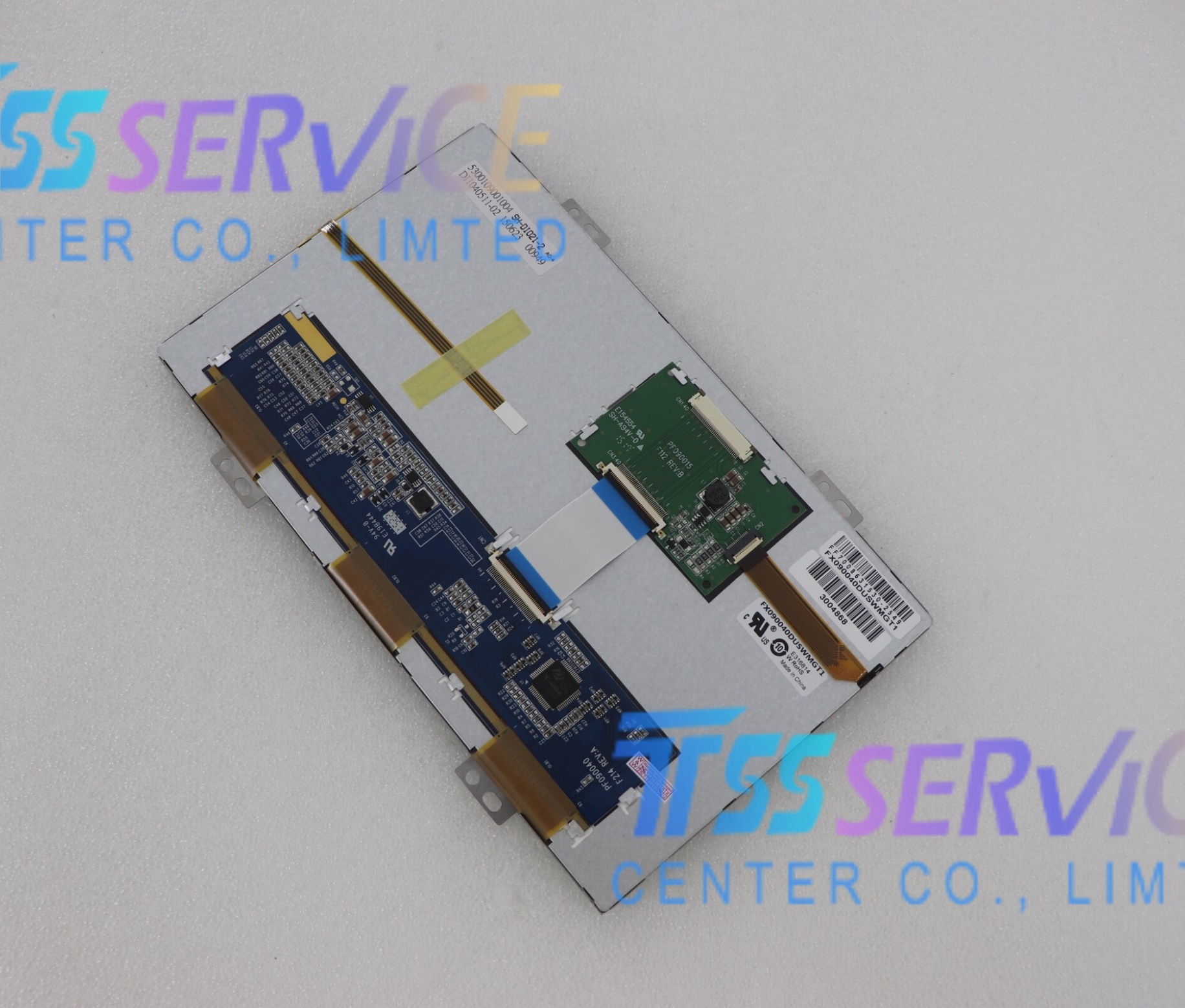

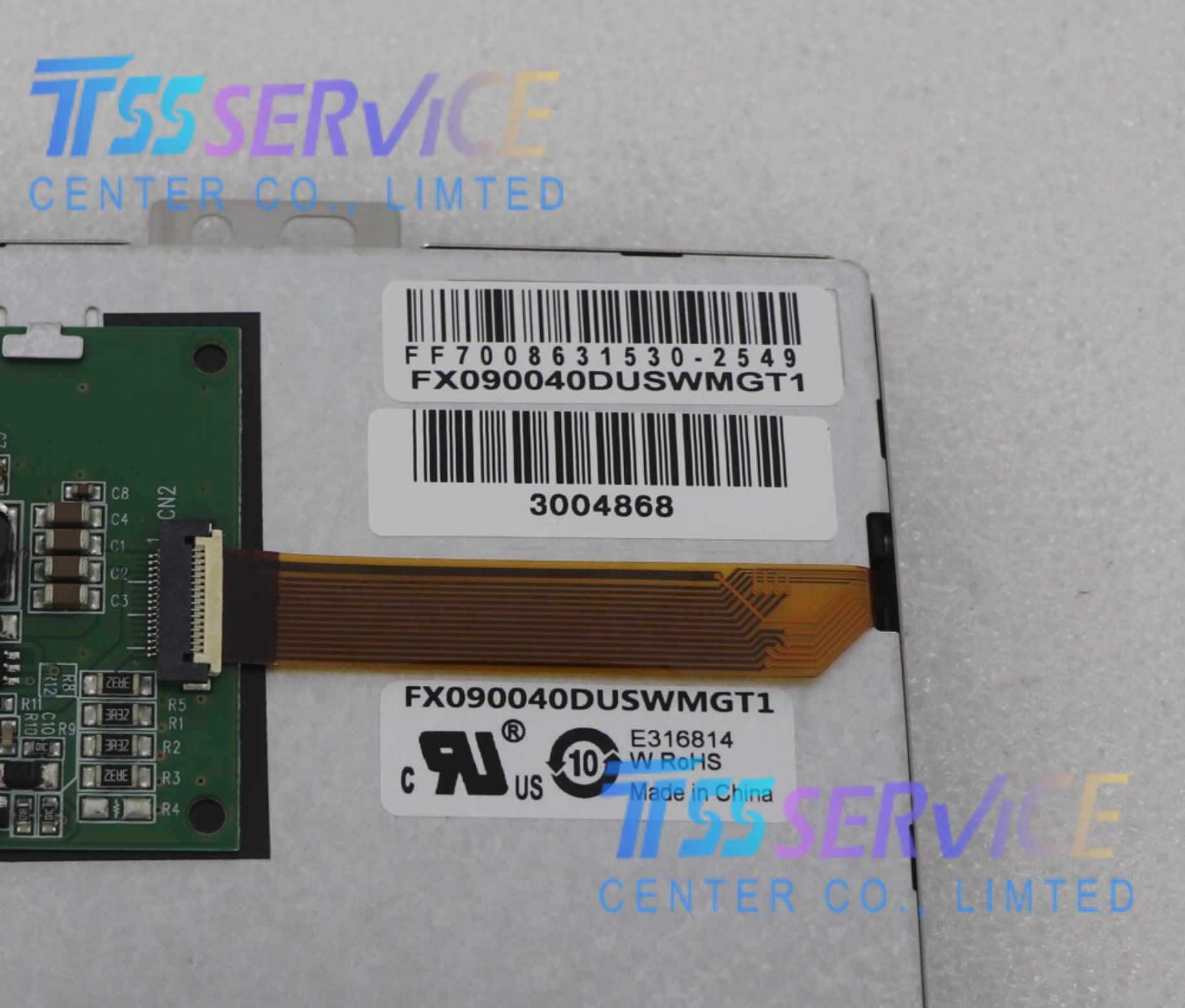

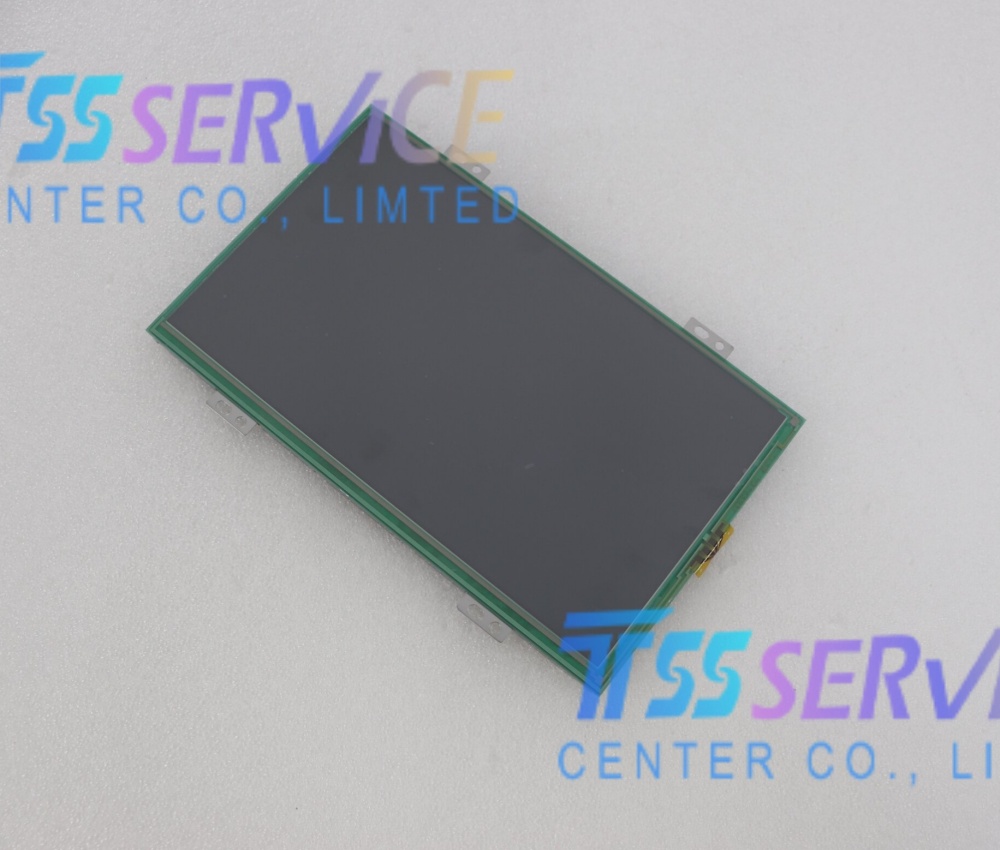

FX090040DUSWMGT1 9 INCH Industrial LCD Display Screen

SKU: FX090040DUSWMGT1
Model P/N: FX090040DUSWMGT1
Diagonal Size: 9"
Panel Type: a-Si TFT-LCD, LCM
Pixel Number: 800×480 (WVGA)
0.0 (0 Reviews)
0 Sold
$133.00 $130.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • FX090040DUSWMGT1 9 INCH Industrial LCD Display Screen
  • FX090040DUSWMGT1 9 INCH Industrial LCD Display Screen
  • FX090040DUSWMGT1 9 INCH Industrial LCD Display Screen
  • FX090040DUSWMGT1 9 INCH Industrial LCD Display Screen
  • FX090040DUSWMGT1 9 INCH Industrial LCD Display Screen
  • FX090040DUSWMGT1 9 INCH Industrial LCD Display Screen
  • FX090040DUSWMGT1 9 INCH Industrial LCD Display Screen
  • FX090040DUSWMGT1 9 INCH Industrial LCD Display Screen
1/1
  • FX090040DUSWMGT1 9 INCH Industrial LCD Display Screen
  • FX090040DUSWMGT1 9 INCH Industrial LCD Display Screen
  • FX090040DUSWMGT1 9 INCH Industrial LCD Display Screen
  • FX090040DUSWMGT1 9 INCH Industrial LCD Display Screen
  • Description
FX090040DUSWMGT1 9 INCH Industrial LCD Display Screen
Item Specification
Brand CRYSTAL COLOR / DATA IMAGE
Model FX090040DUSWMGT1
Size 9.0 inch
Type a-Si TFT-LCD, TN Panel, Normally White, Transmissive
Resolution 800×480 (WVGA)
Active Area 198.0 (W) × 112.5 (H) mm
Brightness 400 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.)
Viewing Angle (CR≥10) 70°/70°/50°/60° (L/R/U/D)
Backlight WLED, long lifespan
Interface 40-pin TTL, RGB
Operating Temp -20°C ~ +70°C
Storage Temp -30°C ~ +80°C
Outline Size 214 (W) × 128 (H) × 10.5 (D) mm
Touch Panel Optional Resistive Touch

Applications(English)

  • Industrial HMI & Control Panels: Factory automation, PLC interfaces, and machinery operation terminals.
  • Medical Equipment: Patient monitors, diagnostic devices, and portable medical instruments.
  • Smart Home & Building Automation: Central control panels for HVAC, security, and lighting systems.
  • Handheld & Mobile Terminals: Logistics data collectors, industrial PDAs, and mobile POS devices.
  • Outdoor & Kiosk Displays: Self-service kiosks, vending machines, and outdoor information terminals.
  •
