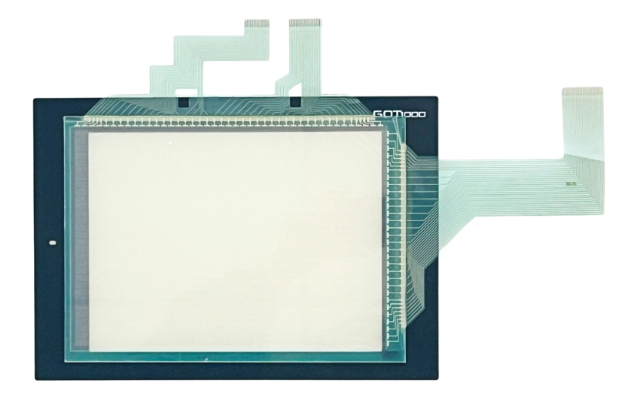

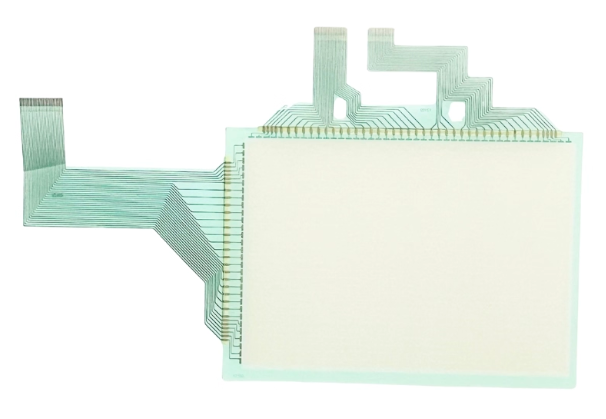

| Parameter | Specification |
|---|---|
| Display Size | 11.6 inches diagonal (294.6 mm) |
| Aspect Ratio | 16:9 (Widescreen) |
| Active Area | 256.3 mm (W) × 144.2 mm (H) |
| Resolution | 1366 × 768 pixels (WXGA, 720p HD) |
| Display Technology | TFT LCD with IPS (In-Plane Switching) or VA panel (depending on variant) |
| Color Depth | 16.7 million colors (24-bit true color) |
| Brightness | 1000 cd/m² (typical) - High Brightness Version |
| Contrast Ratio | 1000:1 (typical) |
| Response Time | 25 ms (Gray-to-Gray typical) |
| Viewing Angles | 178° horizontal, 178° vertical (CR > 10) - near-omnidirectional |
| Backlight Type | White LED (edge-lit, long life) |
| Backlight Lifetime | 50,000 hours (typical to half-brightness) |
| Touch Technology | Projected Capacitive (Multi-touch, supports gestures) |
| Touch Points | Up to 10 simultaneous touches |
| Surface Hardness | 7H pencil hardness (anti-scratch coating) |
| Front Protection | IP66 / IP67 (Type 4X/6/6P/13) when properly installed NEMA 4/4X/12/13 |
| Mounting | Panel mount (front), 4× M4 screw holes |
| Cutout Dimensions | 284 mm × 168 mm (11.18" × 6.61") |
| Overall Dimensions (W×H×D) | 303 mm × 187 mm × 56 mm (11.93" × 7.36" × 2.20") |
| Weight | Approx. 2.2 kg (4.85 lbs) |
| Parameter | Specification |
|---|---|
| Processor | Dual-core ARM Cortex-A9 (or similar high-performance processor) |
| Clock Speed | 800 MHz - 1.0 GHz (depending on firmware) |
| RAM | 1 GB DDR3 (for runtime operation) |
| Internal Storage | 4 GB Flash memory (for OS, applications, data logging) |
| Expansion Storage | SD Card slot (supports up to 32 GB SDHC/SDXC) |
| Real-Time Clock | Battery-backed (CR2032, user replaceable, typical 5-year life) |
| Buffer Memory | 8 MB for logging buffer |
| Interface | Specification |
|---|---|
| Ethernet Port 1 | 10/100/1000BASE-T (Gigabit Ethernet, RJ45) • Supports: Ethernet/IP, Modbus TCP, SLMP (Mitsubishi), FTP, HTTP, SNTP, SMTP |
| Ethernet Port 2 | 10/100BASE-TX (Fast Ethernet, RJ45) • Can be used for separate network, daisy-chaining, or redundancy |
| USB Host Port | USB 2.0 Type A (×2) • For: Keyboard, mouse, barcode scanner, USB flash drive |
| USB Device Port | USB 2.0 Mini-B (for PC connection, project download) |
| Serial Port | RS-422/485 (via terminal block, isolated) • Supports: Mitsubishi PLC protocols, Modbus RTU, ASCII |
| Video Input | DVI-D (optional with specific modules) |
| Audio | Built-in speaker (1W) + 3.5mm audio output jack |
| Expansion Slots | 2× Option board slots (for additional communication, I/O, etc.) |
| Parameter | Specification |
|---|---|
| Input Voltage | 24 V DC (nominal) |
| Voltage Range | 20.4 V DC to 28.8 V DC |
| Current Consumption | 500 mA typical @ 24 V DC (12 W) 800 mA maximum (19.2 W, with full brightness and peripherals) |
| Inrush Current | 15 A maximum for 20 ms |
| Connection | Removable 3-pin terminal block (24V+, 0V, FG) |
| Protection | Reverse polarity, overvoltage (up to 35 V DC), overcurrent, short-circuit |
| Isolation | 1500 V AC (between power and communication circuits) |
| Power Efficiency | >85% typical |
| Parameter | Specification |
|---|---|
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Temperature with Derating | Up to 60°C with brightness reduction |
| Relative Humidity | 10% to 90% (non-condensing) |
| Vibration Resistance | 5 - 8.4 Hz: 3.5 mm amplitude; 8.4 - 150 Hz: 1.0 g (per IEC 60068-2-6) |
| Shock Resistance | 30 g, 11 ms duration, half-sine (per IEC 60068-2-27) |
| Altitude | Up to 2000 m (6560 ft) without derating |
| Cooling | Fanless design (convection cooling only) |
