Simple Status Monitoring: Only need ON/OFF, RUN/STOP, ALARM indications
Text-Only Applications: Primarily displaying numerical data or text messages

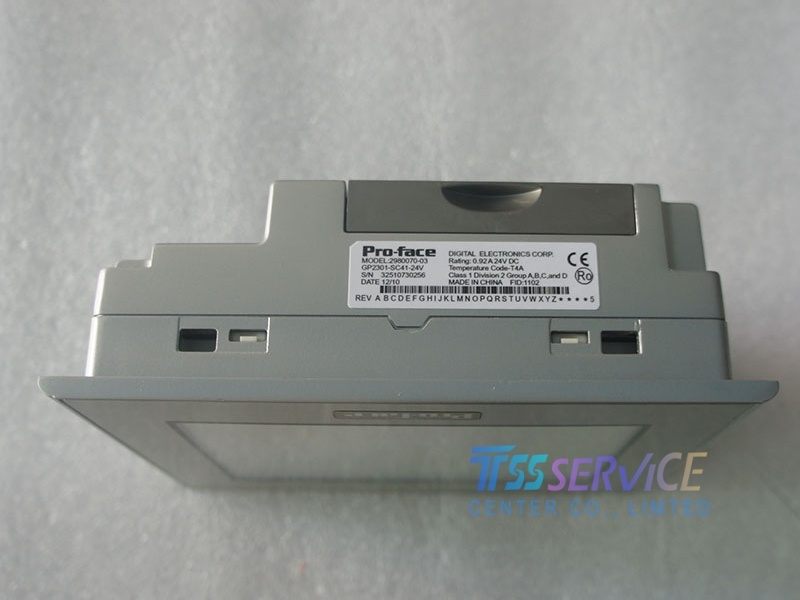

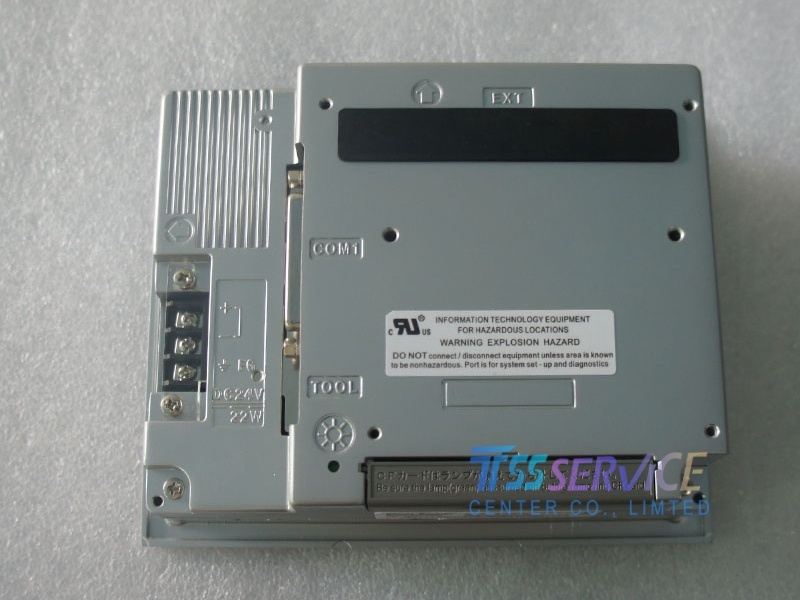

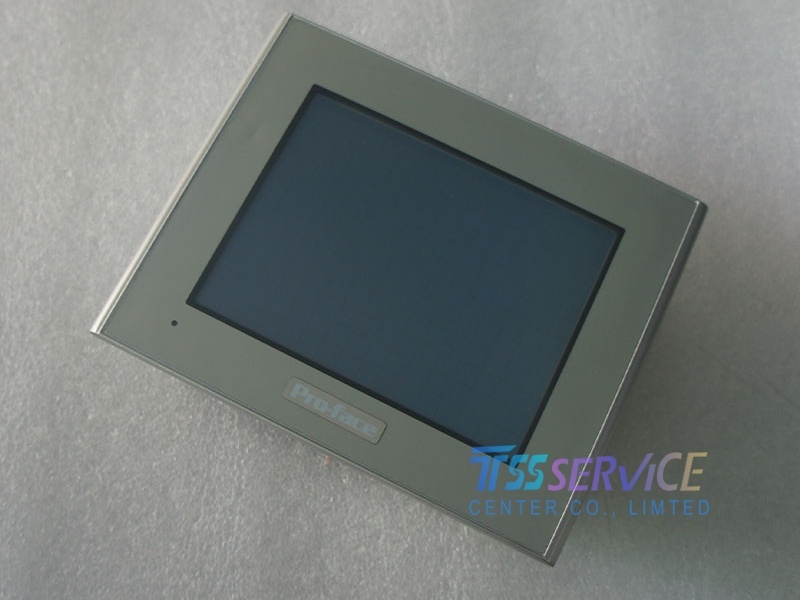

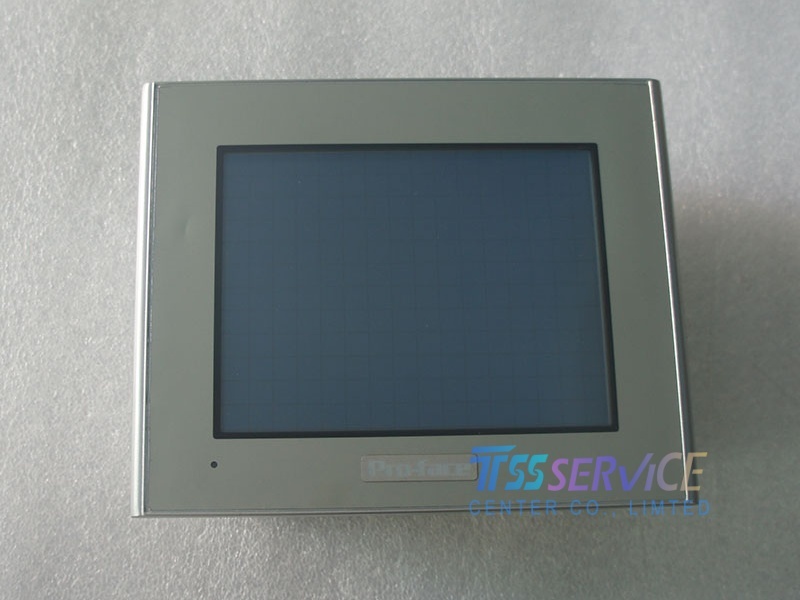

| Parameter | Specification |
|---|---|
| Model Suffix | -LG41- |
| Display Type | STN (Super Twisted Nematic) Monochrome |
| Color/Shade | Blue & White (Blue background, white pixels) or Black & White variant |
| Brightness | 150 cd/m² (typical) |
| Contrast Ratio | 20:1 (typical) |
| Backlight Type | CCFL (Cold Cathode Fluorescent Lamp) |
| Backlight Lifetime | 30,000 - 40,000 hours (to half-brightness) |
| Viewing Angles | Limited (STN characteristic: contrast shifts with angle) |
| Power Consumption | 100 mA typical @ 24 V DC (2.4 W) 150 mA maximum (3.6 W) |
| Typical Application | Cost-sensitive applications where color is not required; status monitoring only |
| Parameter | Specification |
|---|---|
| Model Suffix | -SC41- |
| Display Type | TFT (Thin Film Transistor) Color |
| Color Depth | 4,096 colors (12-bit) or 65,536 colors (16-bit, depending on firmware) |
| Brightness | 200 cd/m² (typical) |
| Contrast Ratio | 200:1 (typical) |
| Backlight Type | CCFL (Cold Cathode Fluorescent Lamp) |
| Backlight Lifetime | 30,000 - 50,000 hours (to half-brightness) |
| Viewing Angles | Better than STN (~70° horizontal, ~50° vertical) |
| Power Consumption | 120 mA typical @ 24 V DC (2.9 W) 200 mA maximum (4.8 W) |
| Typical Application | Applications requiring color differentiation, simple graphics, or better visual clarity |
| Feature | GP2301-LG41-24V (STN Mono) | GP2301-SC41-24V (TFT Color) |
|---|---|---|
| Display Technology | Passive matrix STN | Active matrix TFT |
| Color Capability | Monochrome (2 shades) | 4,096 - 65,536 colors |
| Response Time | 150-300 ms (slow, may have ghosting) | 50-100 ms (faster, better for animations) |
| Viewing Angle | Poor (~45° usable before contrast inversion) | Good (~70° with acceptable color shift) |
| Sunlight Readability | Poor (low contrast, reflective) | Better (higher brightness, but still limited) |
| Image Quality | Low, pixelated, limited grayscale | Sharper, better color rendering |
| Cost Relative | Lower (approximately 70-80% of color version) | Higher |
| Parameter | GP2301-LG41-24V | GP2301-SC41-24V |
|---|---|---|
| Input Voltage | 24 V DC (20.4 - 26.4 V DC) | Same |
| Current (Typical) | 100 mA | 120 mA |
| Current (Max) | 150 mA | 200 mA |
| Power (Typical) | 2.4 W | 2.9 W |
| Power (Max) | 3.6 W | 4.8 W |
| Inrush Current | < 5 A for 20 ms | Same |
| Isolation | 500 V AC (power to comm circuits) | Same |
| Parameter | Specification |
|---|---|
| Overall Dimensions (W×H×D) | 100 mm × 80 mm × 38 mm (3.94" × 3.15" × 1.50") |
| Cutout Dimensions | 92 mm × 72 mm (3.62" × 2.83") |
| Weight | Approx. 0.35 kg (0.77 lbs) |
| Mounting | Panel mount, 4× mounting tabs (M3 screws) |
| Bezel Material | Polycarbonate/ABS blend |
| Sealing | Silicone gasket included for IP65 front seal |
| Parameter | Specification |
|---|---|
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | 10% to 90% (non-condensing) |
| Vibration | 5-8.4 Hz: 3.5 mm amplitude; 8.4-150 Hz: 0.5 g |
| Shock | 15 g, 11 ms duration |
| Altitude | Up to 2000 m (6560 ft) |
