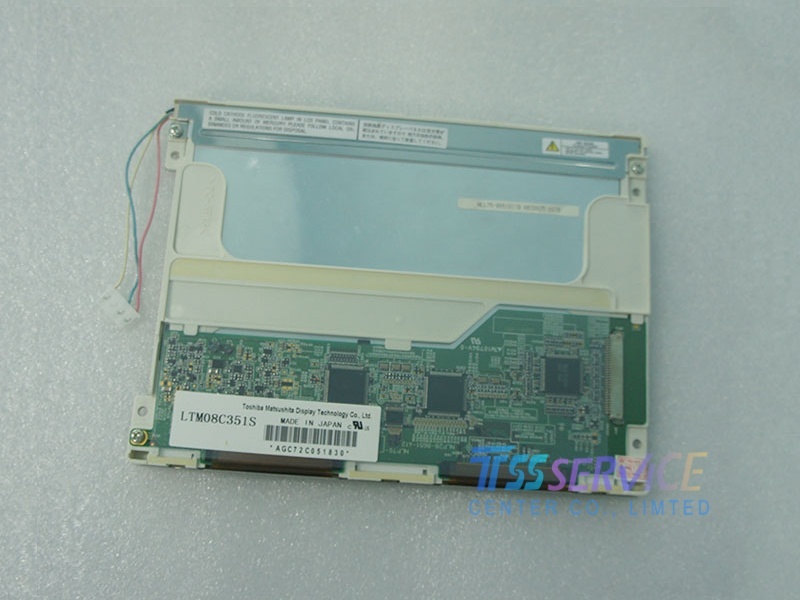

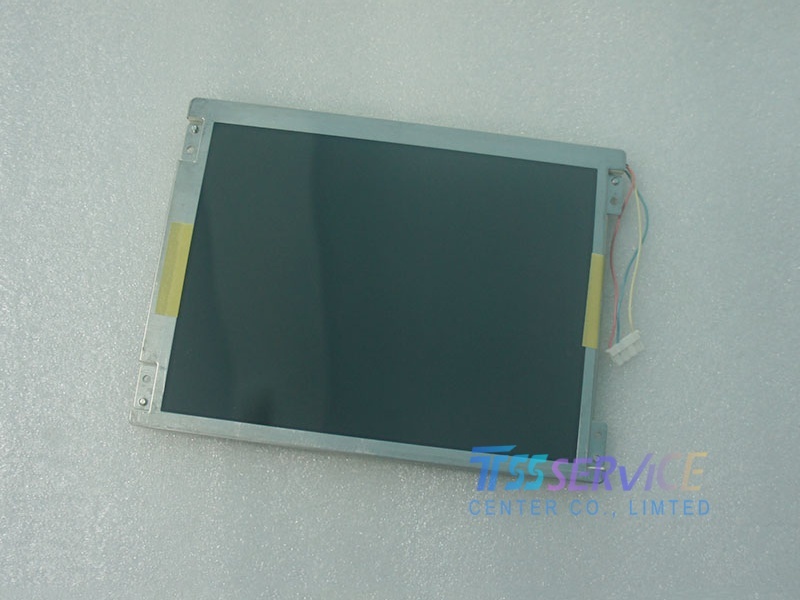

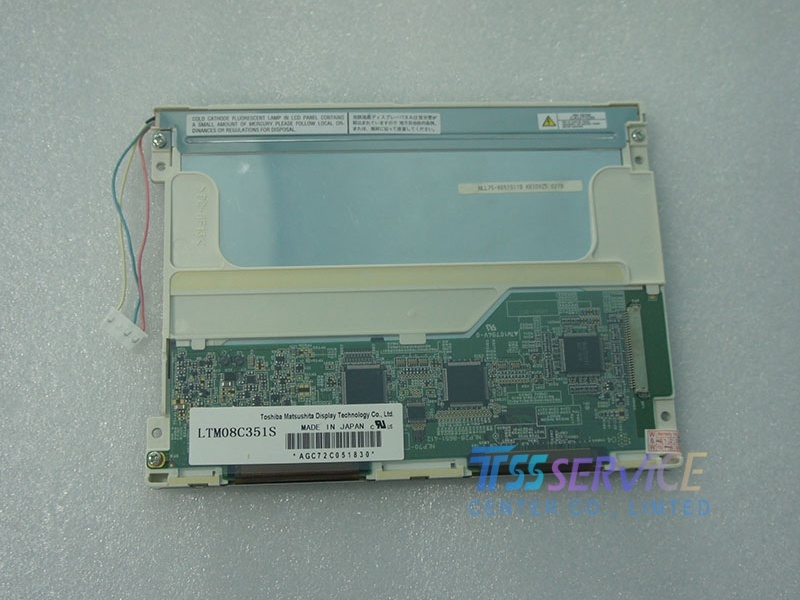

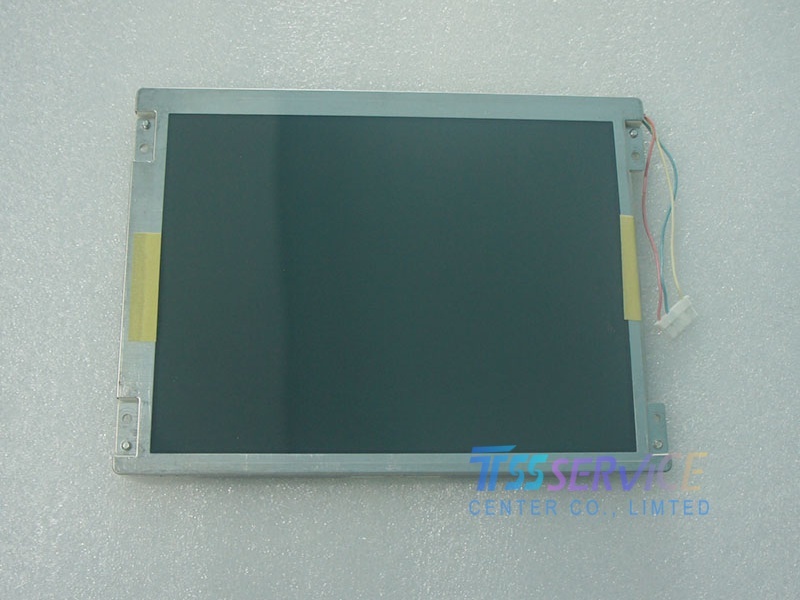

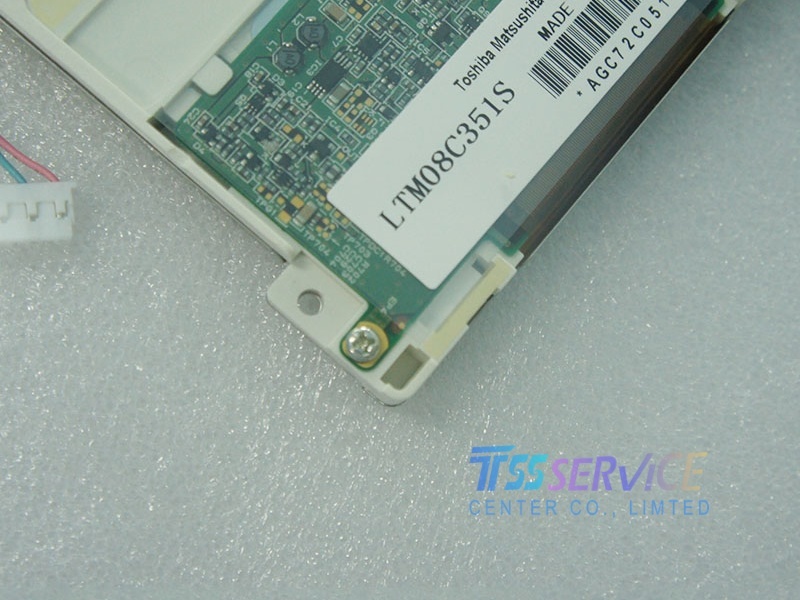

LTM08C351S Toshiba 8.4 inch 800×600 LCD Panel Screen For Industrial
| Parameter |
Details |
| Manufacturer |
Toshiba Matsushita Display Technology (TMD) |
| Model Number |
LTM08C351S |
| Panel Type |
LTPS TFT-LCD, Transmissive, Normally White |
| Diagonal Size |
8.4 inches |
| Resolution |
800 (RGB) × 600 (SVGA, 4:3 Aspect Ratio) |
| Pixel Density |
119 PPI |
| Pixel Pitch |
0.213 × 0.213 mm |
| Active Area |
170.4 (W) × 127.8 (H) mm |
| Outline Dimensions |
199.5 (W) × 149.5 (H) × 12.0 (D) mm |
| Bezel Opening |
173.4 (W) × 130.8 (H) mm |
| Weight |
385 g (Typ.) |
| Brightness |
350 cd/m² (Typ.) |
| Contrast Ratio |
300:1 (Typ.) |
| Color Depth |
262K colors (6-bit) |
| Response Time |
20/25 ms (Typ.) (Tr/Td) |
| Viewing Angle |
50/50/40/50° (L/R/U/D) (Typ., CR≥10) |
| Backlight |
2 × CCFL, Side-light (Top), 50,000 hrs lifespan |
| Interface |
CMOS (1 ch, 6-bit), 30-pin connector |
| Supply Voltage |
3.3V (Typ.) |
| Operating Temp. |
-10°C ~ +60°C |
| Storage Temp. |
-20°C ~ +65°C |
| RoHS |
Compliant |
LTM08C351S is a robust 8.4-inch SVGA industrial LCD module widely deployed in professional and industrial equipment.
- Industrial HMI & Control Panels: Primary application in factory automation systems, PLCs, and machine operation interfaces.
- Medical Diagnostic Equipment: Used in ultrasound machines, patient monitors, and clinical display terminals.
- Industrial Computers & Embedded Systems: Integrated into industrial PCs, single-board computers, and on-board controllers.
- Automotive & Navigation Displays: Found in car navigation systems and specialized vehicle dashboards.
- Test & Measurement Instruments: Deployed in oscilloscopes, signal analyzers, and data acquisition devices.
- Commercial & Banking Terminals: Utilized in ATMs, POS systems, and interactive kiosks.
