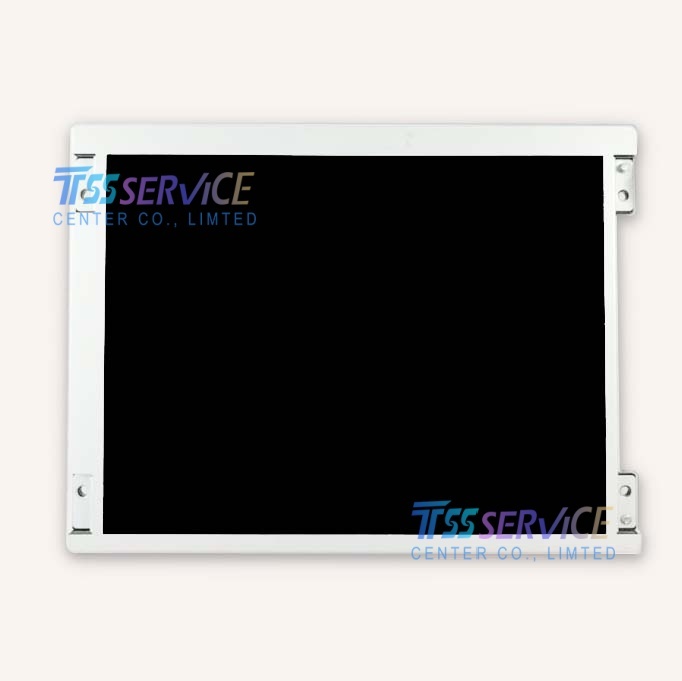

LTA084C270F 8.4" 640*480 TFT-LCD Screen Panel for industrial use

Name: LTA084C270F 8.4" 640*480 TFT-LCD Screen Panel for industrial use
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LTA084C270F
Price: 93 USD
Availability: InStock

SKU: LTA084C270F

1，Condition: New，Grade A

2，Description: LTA084C270F 8.4inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$95.00~~ $93.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The LTA084C270F is an 8.4-inch industrial-grade TFT-LCD module manufactured by Toshiba Matsushita Display Technology . Designed for demanding environments, this panel delivers reliable performance with high brightness, wide operating temperature range, and exceptional longevity, making it an ideal choice for industrial control systems, medical equipment, and embedded HMI applications .

Parameter	Value
Mfr	Toshiba Matsushita
Model Name	LTA084C270F
Display Size	8.4"
Panel Type	LTPS TFT-LCD, LCM
Resolution	800(RGB)×600, 4:3, SVGA
Pixel Format	RGB Vertical Stripe
Display Area	170.4(W)×127.8(H) mm
Panel Weight	460g (Typ.)
Outline Size	199.5(W)×149.5(H)×12(D) mm
Brightness	400 cd/m² (Typ.)
Contrast Ratio	450:1 (Typ.) (TM)
Viewing Angle	60/60/50/50 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	8/17 (Typ.)(Tr/Td) ms
Display Colors	262K
Touch Screen	Without
Power Consumption	5.9W (Typ.)
Light Source	2 pcs CCFL, 50K hrs, Without Driver
Interface	LVDS (1 ch, 6-bit), 20 pins Connector
Input Voltage	3.3V (Typ.)
Operating Temp.	-20 ~ 70 °C
Storage Temp.	-30 ~ 80 °C

Applications

Industrial Control Panels (HMI) – CNC machines, factory automation systems
Medical Diagnostic Equipment – Patient monitoring, imaging devices
Test and Measurement Instruments – Portable diagnostic tools
Embedded Systems – Legacy system upgrades and refurbishment
