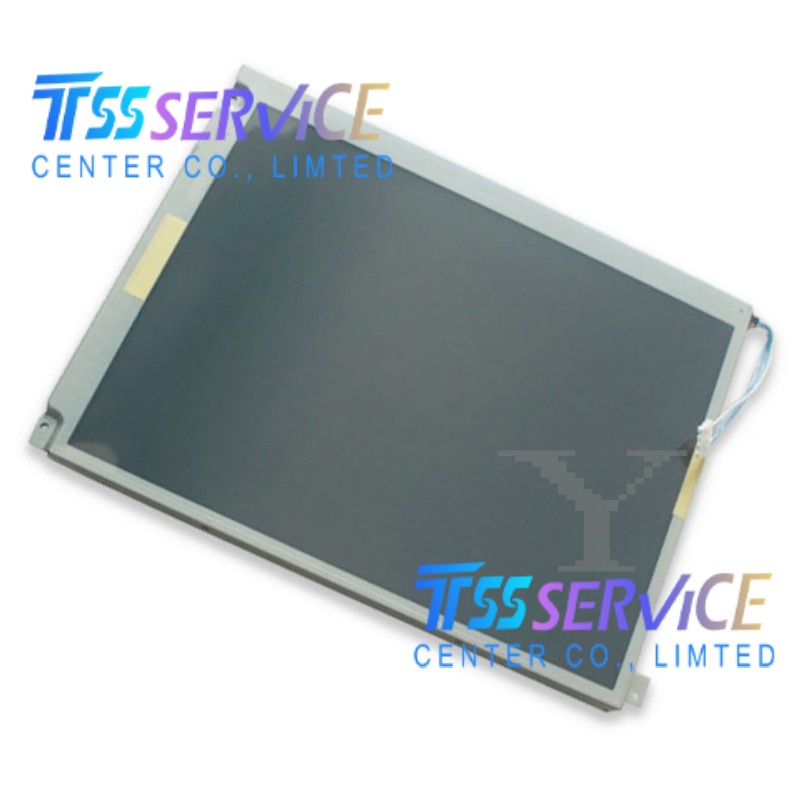

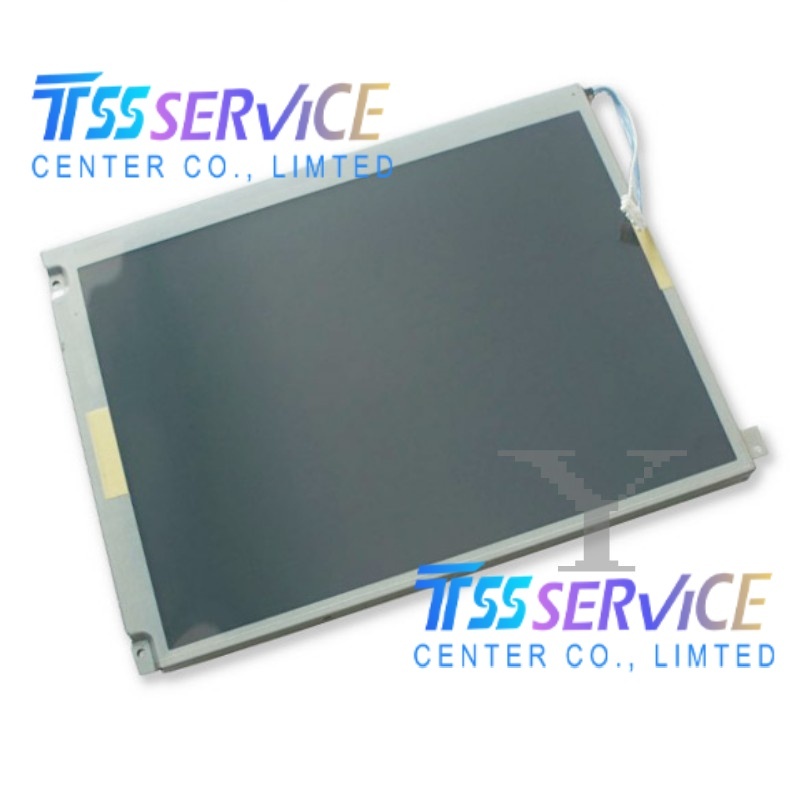

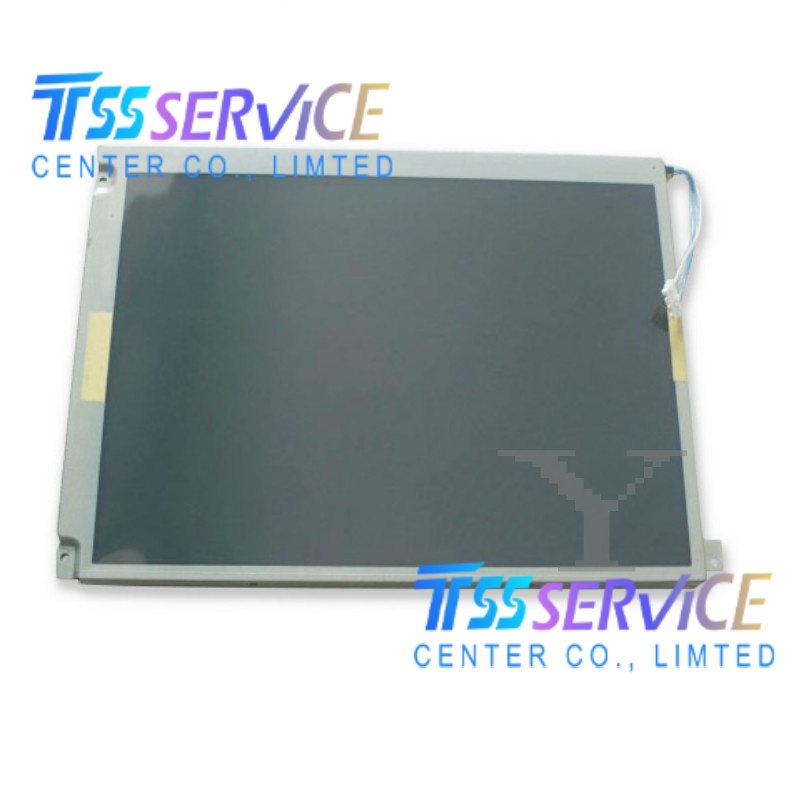

Kyocera T-51512D121J-FW-A-AFN 12.1 inch a-Si TFT-LCD Panel Display Screen for Industrial
| Parameter |
Specification |
| Manufacturer |
Kyocera |
| Part Number |
T-51512D121J-FW-A-AFN |
| Display Type |
a‑Si TFT‑LCD, Transmissive, TN Normally White |
| Diagonal Size |
12.1 inches |
| Resolution |
800(RGB) × 600 (SVGA) |
| Active Area |
246.0 (W) × 184.5 (H) mm |
| Pixel Format |
RGB Vertical Stripe |
| Brightness |
400 cd/m² (Typical) |
| Contrast Ratio |
500:1 (Typical) |
| Display Colors |
262K (6‑bit) |
| Response Time |
6/19 (Typ.)(Tr/Td) |
| Viewing Angle (CR≥10) |
65/65/45/75 (Typ.)(CR≥10) |
| Backlight |
CCFL (Cold Cathode Fluorescent Lamp) |
| Backlight Lifetime |
50,000+ hours (Typical) |
| Interface |
CMOS (1 ch, 6-bit) , 41 pins Connector |
| Input Voltage |
3.3 V (Typical) |
| Operating Temperature |
-20°C to +70°C |
| Storage Temperature |
-20 ~ 80 °C |
| Refresh Rate |
60 Hz |
| RoHS Compliance |
Non‑compliant (CCFL contains mercury) |
| Application Grade |
Industrial |
This module is widely used in industrial control and embedded equipment requiring stable performance in harsh environments:
- Industrial Automation & Control
- HMI (Human‑Machine Interface) panels, PLC displays, and machine tool interfaces
- Factory automation systems, assembly line monitors, and process control equipment
- Test & Measurement Instruments
- Benchtop oscilloscopes, signal analyzers, data loggers, and industrial multimeters
- Portable test equipment for engineering, manufacturing, and field service
- Medical & Healthcare Devices
- Patient monitors, diagnostic instruments, and medical cart displays
- Clinical and laboratory equipment with reliable long‑term operation
- Transportation & Heavy Equipment
- Vehicle dashboards, forklift control panels, and construction machinery interfaces
- Marine navigation systems, railway monitoring, and aerospace cabin displays
- Embedded & Industrial Computing
- Industrial panel PCs, ruggedized workstations, and embedded computing systems
- POS terminals, industrial printers, and office automation equipment
- Outdoor & Industrial Signage
- Outdoor kiosks, industrial information displays, and agricultural machinery interfaces
- Harsh‑environment signage with stable visibility
