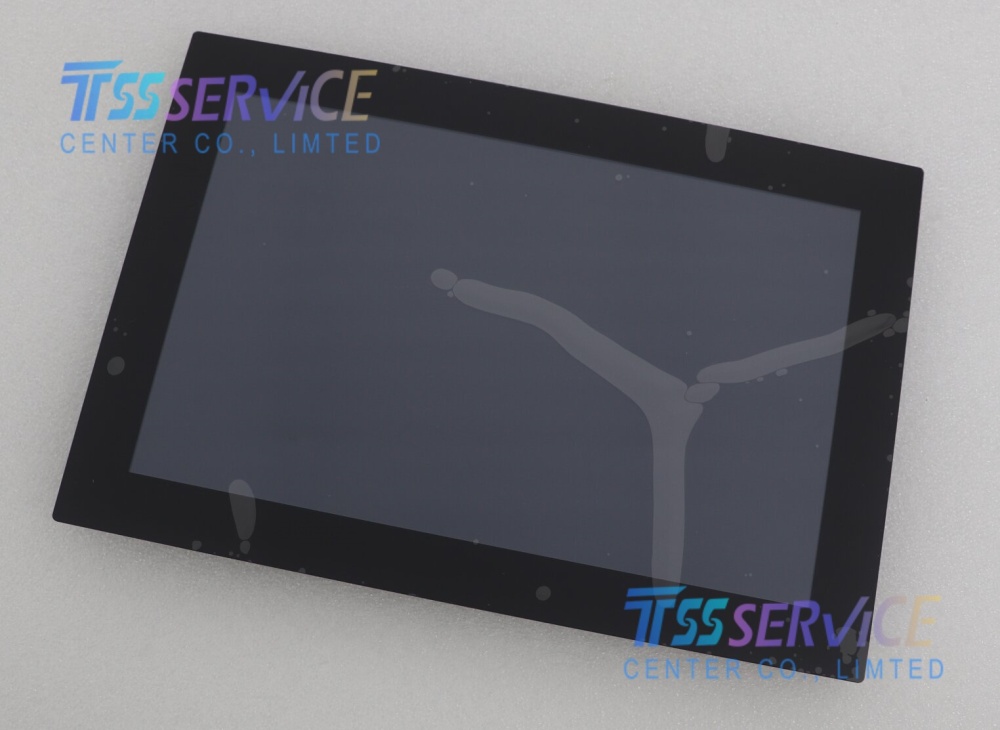

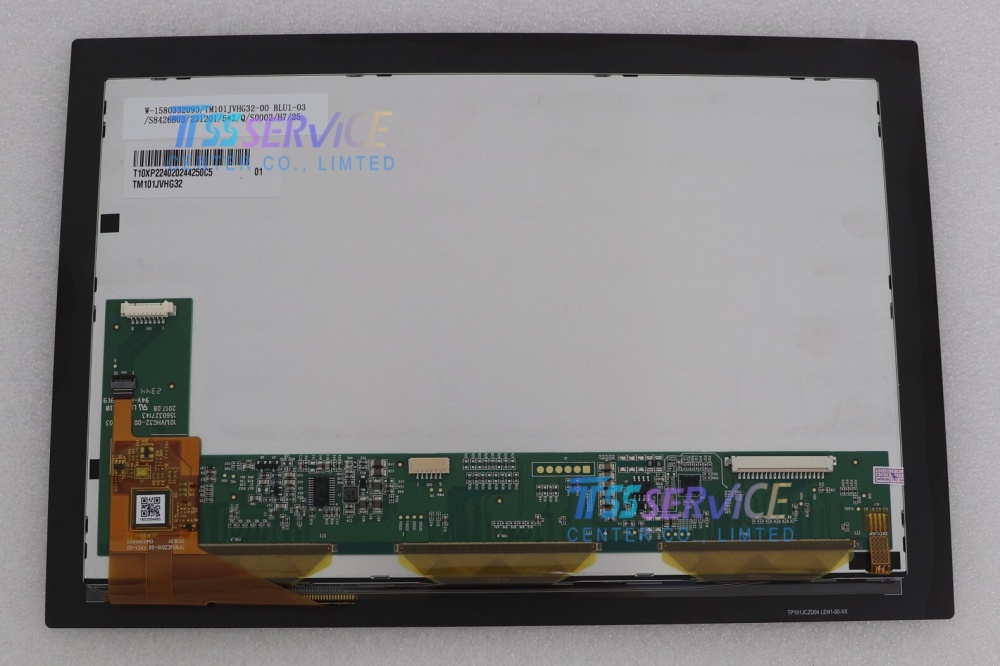

Part no : TM101JVHG32-01
Brand : Tianma
INCH : 10.1 Inch
Resolution 1280x800
LCD Panel for Industrial Machine
industrial display panel, high brightness LCD, open frame display.| Parameter | Specification |
|---|---|
| Model Number | TM101JVHG32-01 (Ref: TM101JDHG32) |
| Manufacturer | Tianma (天马) |
| Panel Type | a-Si TFT-LCD, Liquid Crystal Module |
| Screen Size | 10.1 inches (Diagonal) |
| Resolution | 1280 (RGB) × 800 pixels (WXGA) |
| Pixel Density | 149 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Brightness | 1000 cd/m² (Typical), Ultra-High Brightness |
| Contrast Ratio | 800:1 (Typical) |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Display Area | 216.96 (W) × 135.6 (H) mm |
| Outline Dimensions | 229.8 (W) × 149.0 (H) × 9.61 (D) mm |
| Surface Treatment | Hard Coating (3H) |
| Backlight Type | WLED (White LED), Edge-lit |
| Backlight Driver | Integrated LED Driver |
| Signal Interface | LVDS (1 channel, 6/8-bit) |
| Connector Model | Typically FI-SE20P-HFE (20 pins, 1.25mm pitch) |
| Input Voltage | 3.3V (Typical) |
| Power Consumption | ~3.86W (Typical, including backlight) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Color Depth | 16.7M colors (8-bit) or 262K colors (6-bit + FRC) |
| Application Status | Mass Production |
