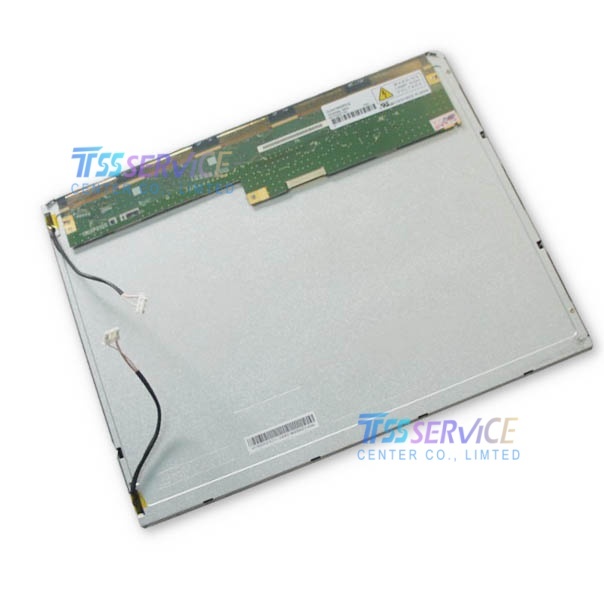

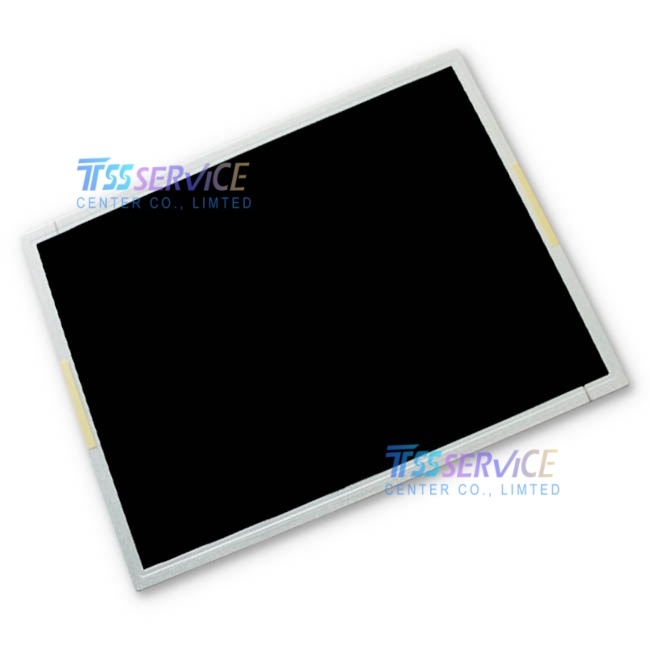

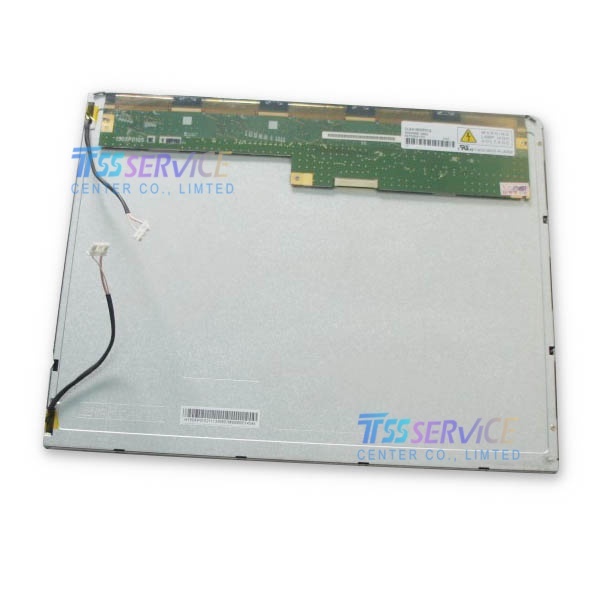

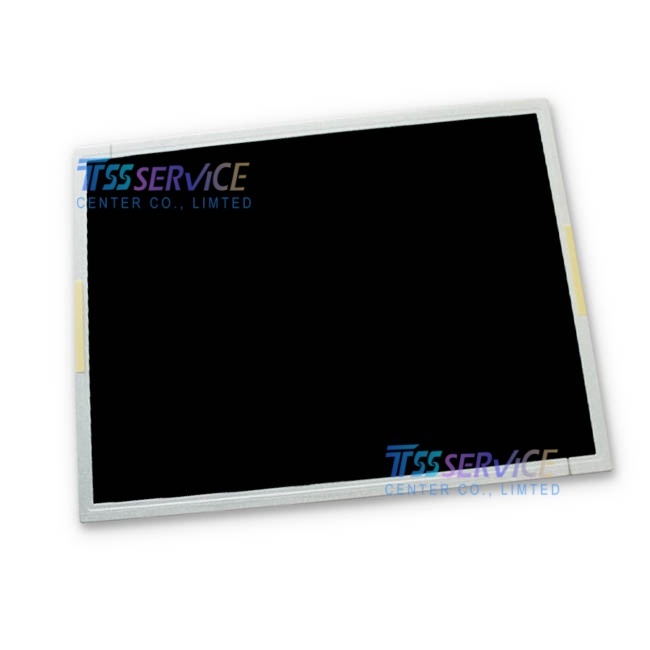

Part no : CLAA150XP01
Brand : CPT
INCH :15"
Resolution 1024*768
LCD Panel for Industrial Machine
| Parameter | Specification |
|---|---|
| Model Number | CLAA150XP01 |
| Manufacturer | Chunghwa Picture Tubes (CPT) |
| Panel Type | a-Si TFT-LCD, Transmissive |
| Screen Size | 15.0 inch (Diagonal) |
| Resolution | 1024(RGB)×768 [XGA] |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 304.128(H) × 228.096(V) mm |
| Outline Dimensions | 326.5(H) × 253.5(V) × 11.5(D) mm |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 16.2M (65% CIE1931) |
| Backlight Type | CCFL (2 pcs), 40K Hours Life |
| Interface | 20 pins LVDS (1 ch, 8-bit) |
| Supply Voltage | 3.3V (Typ.) |
| Operating Temp | 0 ~ 50 °C |
☛Shipment:
About the International Shipping:
The products depending on the item's customs value,will be subject to the customs processing.
As the buyer, you should be aware of:
★the delays from the customs inspection.
★the import duties and taxes which buyers must pay.
★The import duties and taxes are not included in the items fix price or shipping cost Cause these charges are the buyers' responsibility directly.
☛Delivery Details:
We will arrange the shipment within 1-3 working days asap after got your payment. And the tracking number and commercial inovice will be given to the customers asap. (only the standard speedpak or expedited shipping service). Expedited Shipping by DHL/FEDEX/4PX express Courier etc. But sometimes it is highly depended on buyer's payment, the courier company and local customs/duties.
✔☛Shipment detail:
box, including the seller's handling time, the buyers'destination ZIP Code, the time of the orders acceptance, shipping service selected and also the exact receipt of the cleared payment.
So the delivery times may be vary, especially during the shipping high peak periods.
Hope you understand, thanks!
☛Return Policy:
After received the items and in the event of an issue arising,please send us messages within 5 Days of receipt.
Whether the money back or replacement (at buyer's choice)
Please provide the detailed explanation, photos or videos needed when send us messages.
Unwanted product returns: The merchandise must be in the new, unused, uninstalled condition only.
☛About us:
We have specialized in LCD-Business for 20 years(NEC, SHARP, HITACHI, AUO, SAMSUNG, KOE, TIANMA LG Display, Samsung, Innolux, SHARP, MISTBISH,etc)
We are willing to provide the good service,professional technology and excellent products to you.
If you have any general questions and please contact us via sally@winnihk.com we will give you a exact reply within 24hours
