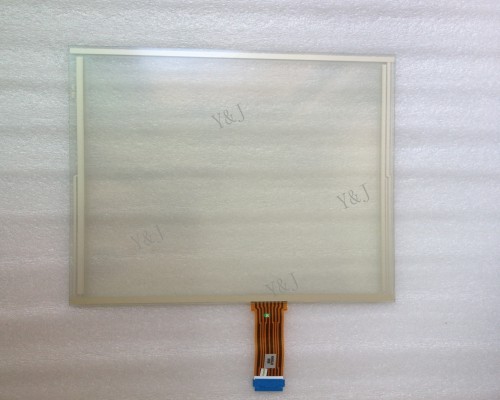

15 inch AMT9546 8-Wire Resistive Touch screen
Specifications
- Model: AMT9546
- Manufacturer: AMT (Apex Material Technology, Taiwan)
- Touch Type: 8-wire analog resistive touch screen, Glass-Film-Glass (GFG) industrial grade
- Diagonal Size: 15 inch, 4:3 aspect ratio
- Matching LCD: Standard 15-inch 1024×768 XGA industrial TFT display

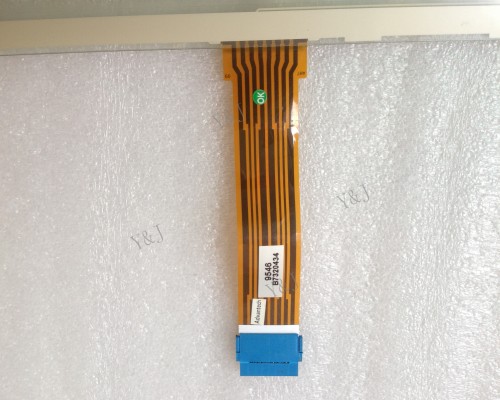

- FPC Cable: 8-pin yellow flexible cable, outlet on the right side of touch glass
- Surface Material: Hardened cover glass, surface hardness ≥3H
- Light Transmittance: ≥80%
2. Mechanical Dimensions
- Overall outer dimension: 333.5 mm (Width) × 257 mm (Height)
- Active touch sensing area: 308 mm (W) × 232 mm (H)
- FPC tail length: 114 mm
- Total thickness: Standard industrial GFG thickness
- Net weight: ~500 g
3. Electrical Touch Parameters
- X-axis resistance range: 300Ω ~ 900Ω
- Y-axis resistance range: 200Ω ~ 800Ω
- Insulation resistance: >20 MΩ @ DC 25V
- Operating voltage: 5V DC, compatible with PenMount industrial touch controllers
- ESD resistance: 10KV contact discharge, no coordinate drift
- Linear error: ≤1.2% (higher precision than 4-wire touch)
- Touch service life: Over 1,500,000 single-point press cycles
- Operation force: 0.1N ~ 0.8N, supports gloves, finger, plastic stylus
Typical Applications
-
- Large-size industrial HMI control panels & PLC operation terminals
- CNC machine tools, injection molding machines, robot teach pendants
- Factory automation monitoring and testing equipment
- Medical auxiliary non-diagnostic display devices
- Self-service kiosks, industrial POS, vending machine control screens
- Intelligent warehouse monitoring touch terminals
- Original replacement touch digitizer for broken 15-inch industrial monitor
-
