| Parameter | Specification Details |
|---|---|

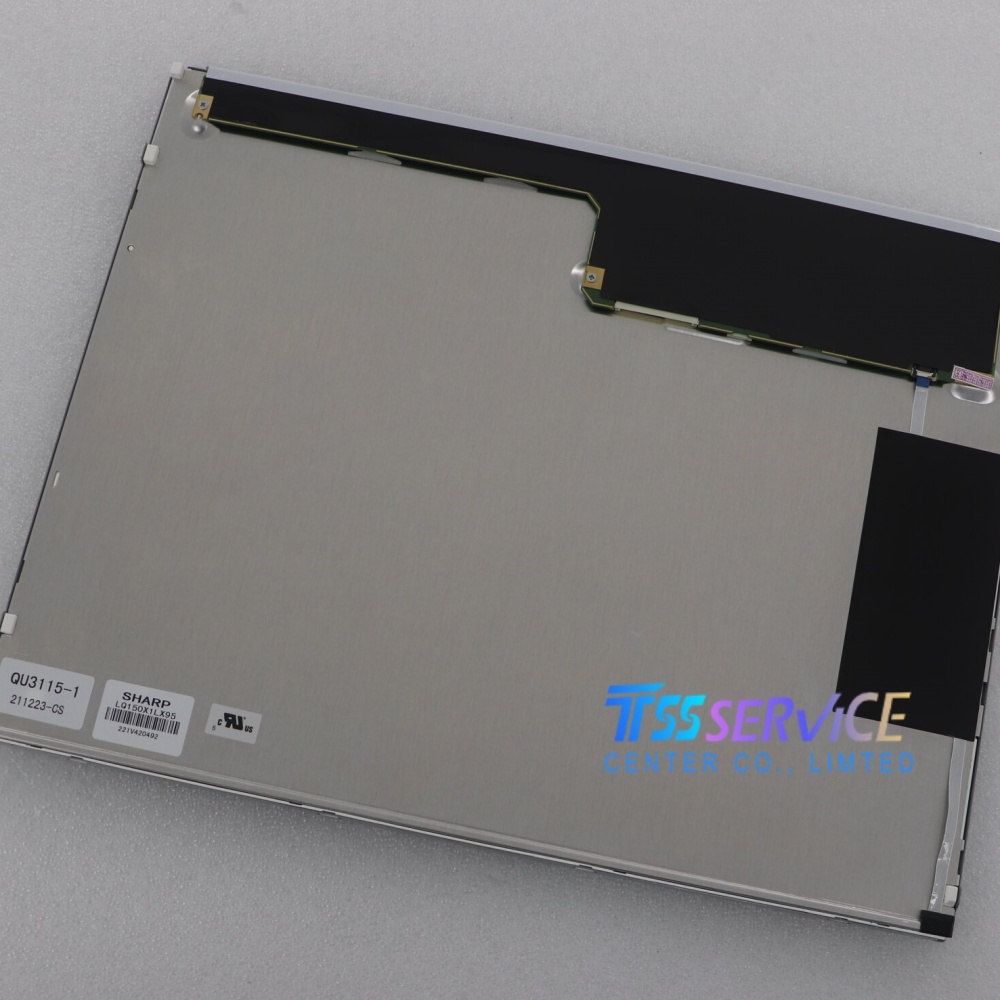

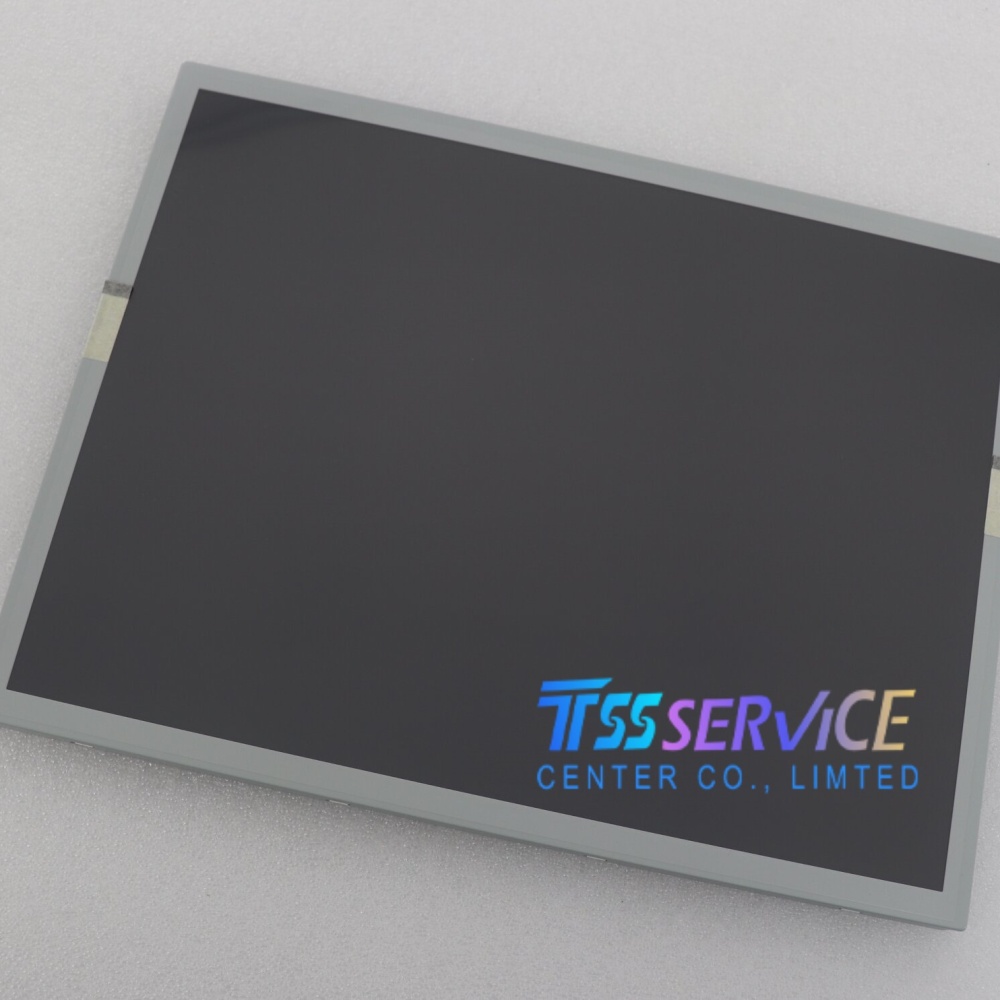

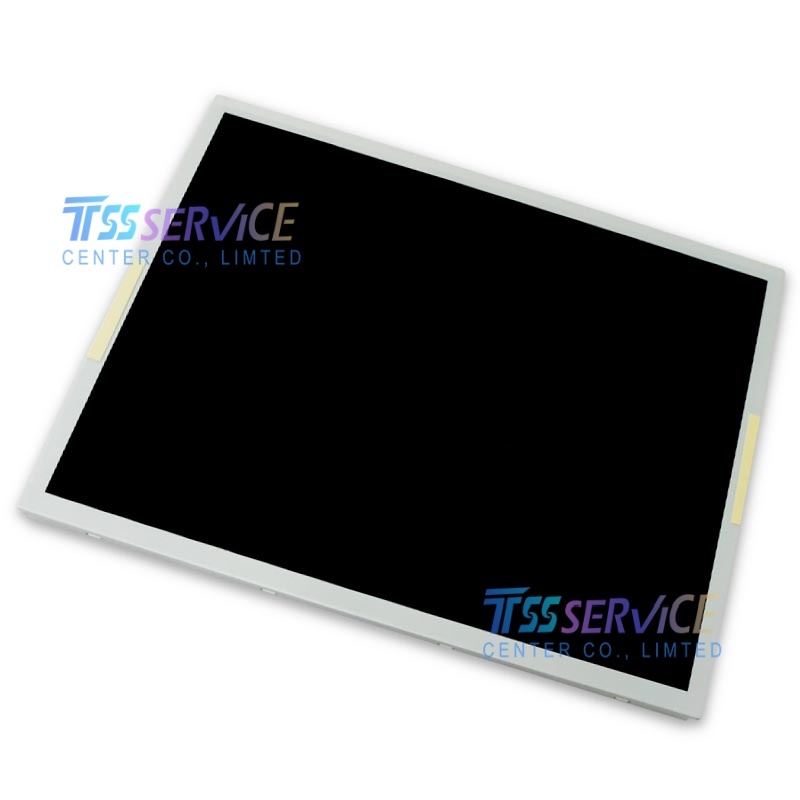

| Model Number | LQ150X1LX25 (Part of LQ150X1 Series) |
| Manufacturer | Sharp (SHARP) |
| Panel Type | a-Si TFT-LCD, Active Matrix |
| Diagonal Size | 15.0 inches |
| Resolution | 1024 (RGB) × 768 pixels (XGA) |
| Aspect Ratio | 4:3 |
| Pixel Pitch | Approx. 0.297 mm (H) × 0.297 mm (V) |
| Display Area | 304.128 (W) × 228.096 (H) mm |
| Outline Dimensions | Approx. 326.5 (W) × 253.5 (H) × 10.1~11.5 (D) mm (Varies slightly by sub-model) |
| Display Mode | Transmissive, Normally White (TN or ASV depending on specific batch) |
| Surface Treatment | Anti-Glare (Haze ~25-28%), Hard Coating (2H-3H) |
| Brightness | Typical: 350 ~ 400 cd/m² (Industrial grade often higher than consumer) |
| Contrast Ratio | Typical: 500:1 to 800:1 |
| Display Colors | 16.2M (6-bit + FRC) or 262K colors |
| Viewing Angle | 80°/80°/80°/80° (Typical for TN); Wider for ASV variants |
| Backlight Type | WLED (White LED) with LED Driver |
| Interface | LVDS (Low Voltage Differential Signaling), typically 20-pin or similar industrial connector |
| Operating Temp. | -20°C to +70°C (Standard Industrial Range) |
| Storage Temp. | -25°C to +70°C |
| Compliance | RoHS Compliant |
