Part no : LQ150X1LX95
Brand : Sharp
INCH : 15 Inch
Resolution 1024(RGB)×768
LCD Panel for Industrial Machine
industrial LCD module, medical display panel, wide temperature LCD| Parameter | Specification |
|---|---|
| Model Number | LQ150X1LX95 |
| Manufacturer | Sharp (SHARP) |
| Panel Type | a-Si TFT-LCD Module |
| Diagonal Size | 15.0 inches |
| Resolution | 1024 (RGB) × 768 (XGA) |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Colors | 262K colors (6-bit or 8-bit depending on interface) |
| Brightness | Typical 350 cd/m² (may vary slightly by batch) |
| Contrast Ratio | Typically 800:1 |
| Viewing Angle | Wide view (e.g., 80/80/80/80 degrees) |
| Backlight Type | WLED (White LED) with integrated driver |
| Backlight Life | > 70,000 hours |
| Surface Treatment | Anti-glare (Haze) |
| Interface | TTL / LVDS (Specific pinout requires datasheet verification) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -25°C to +70°C |
| Vibration Resistance | 1.0G (9.8 m/s²) |
| RoHS Compliance | Yes |
| Special Features | 180° rotation support, Landscape mode, Compatible with PSWG |

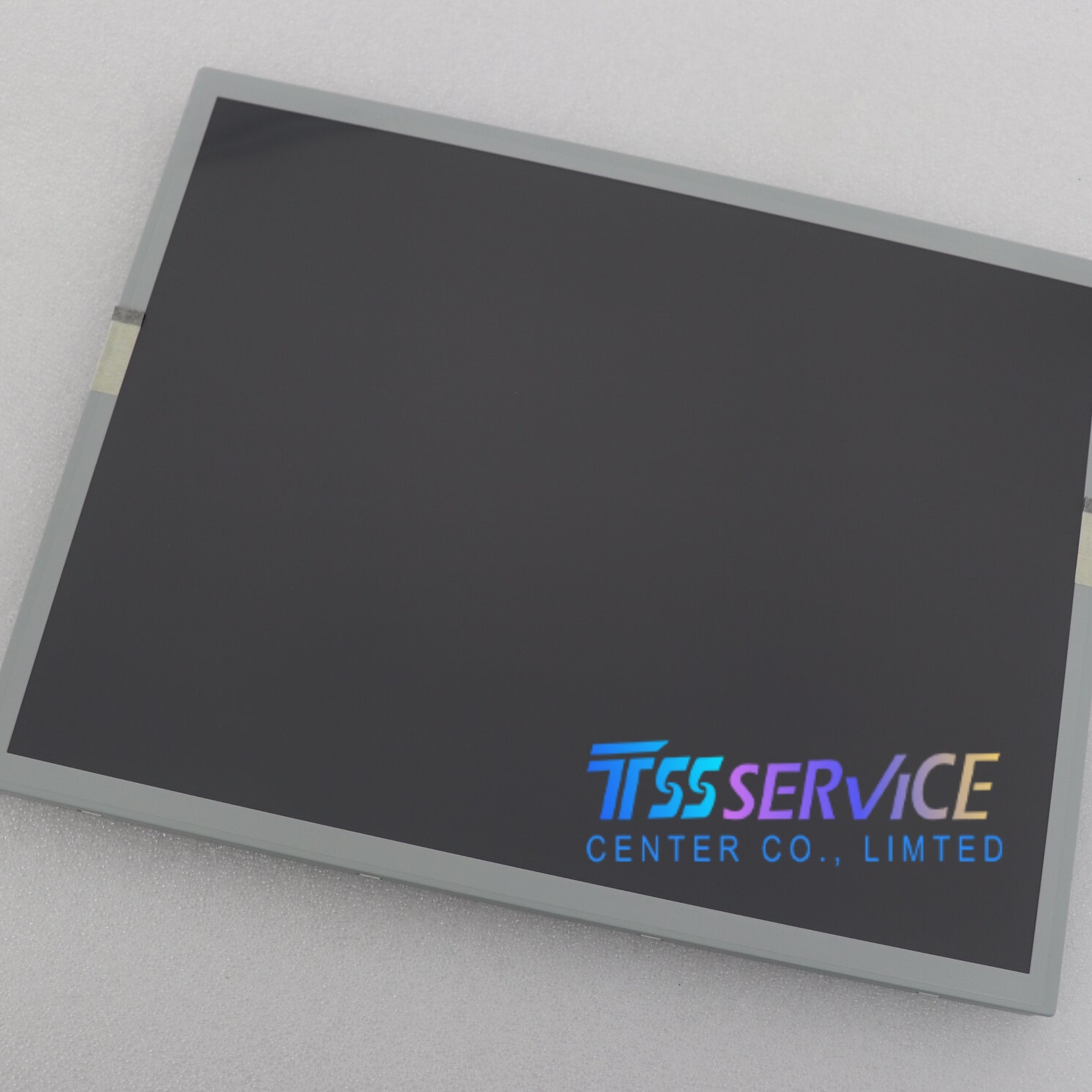

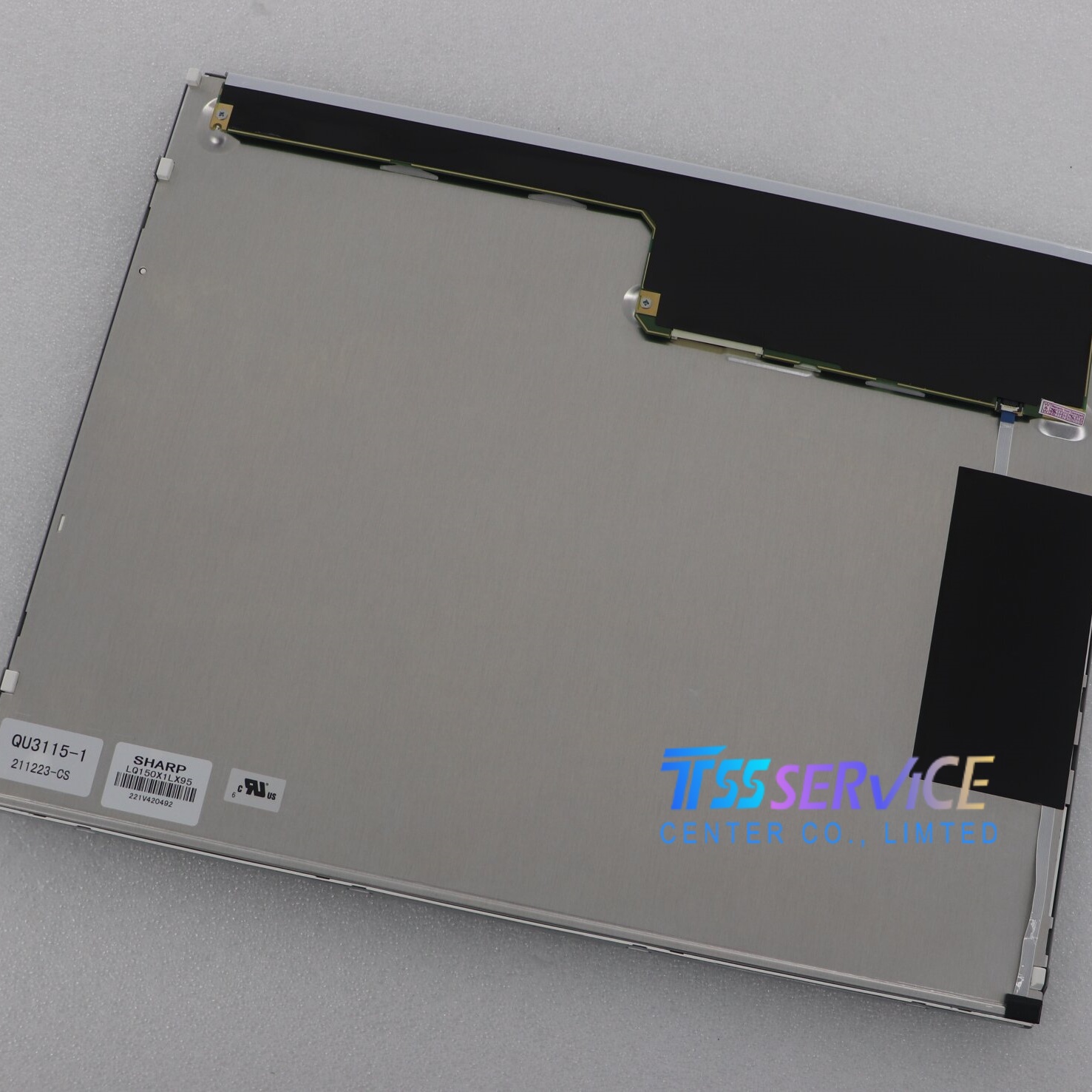

SHARP LQ150X1LX95 1024(RGB)×768
