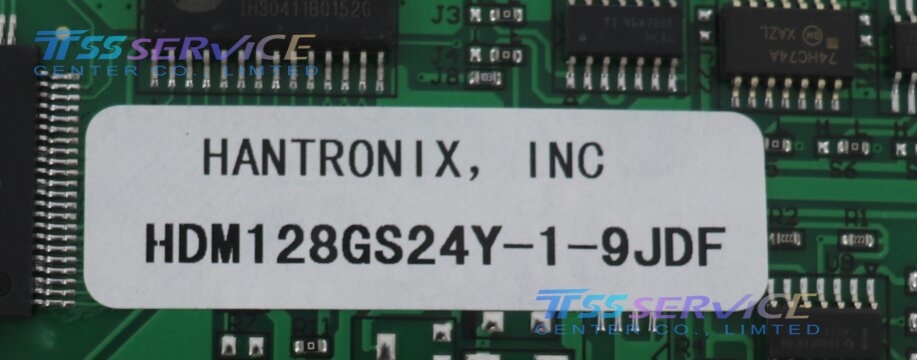

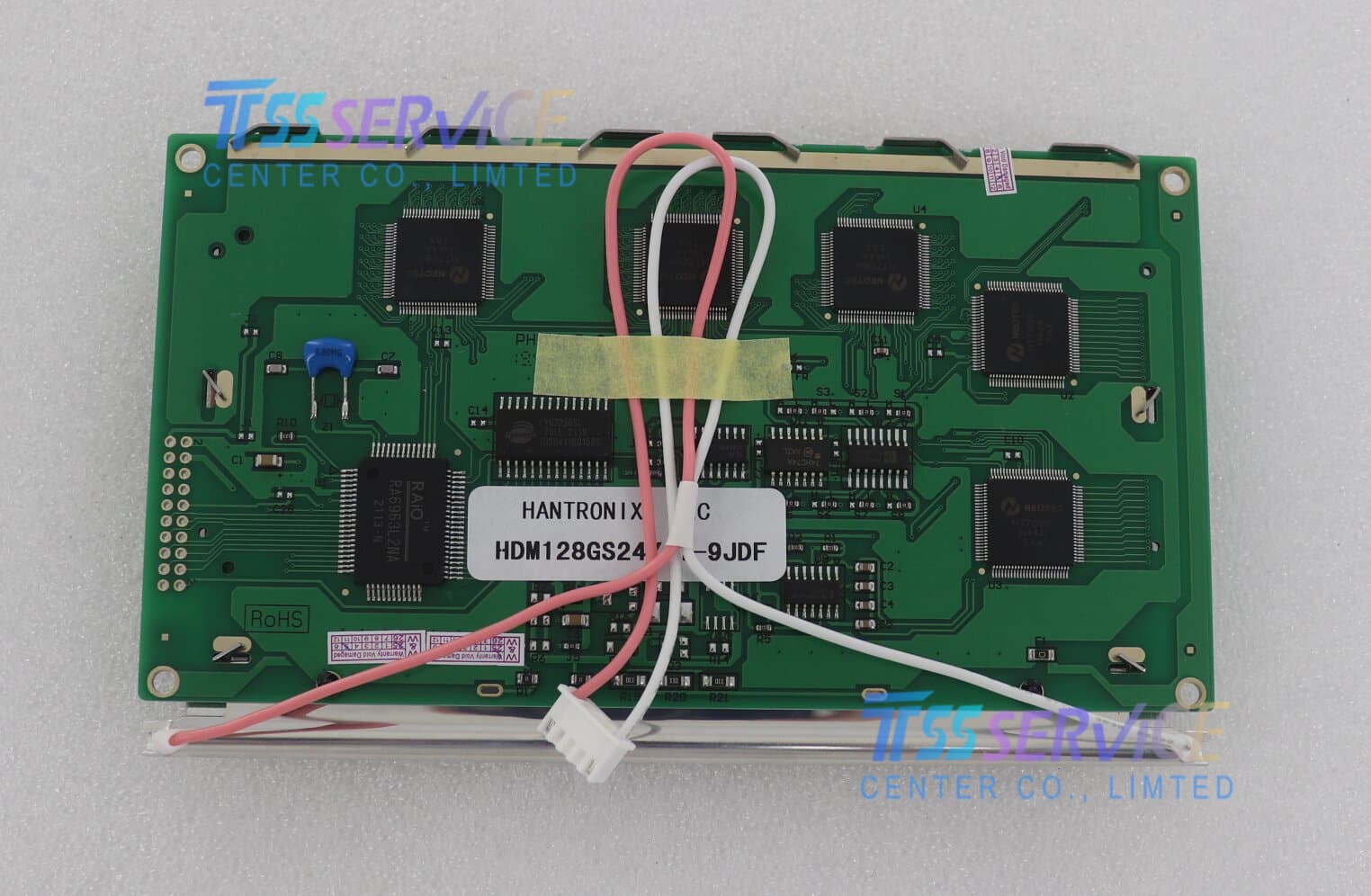

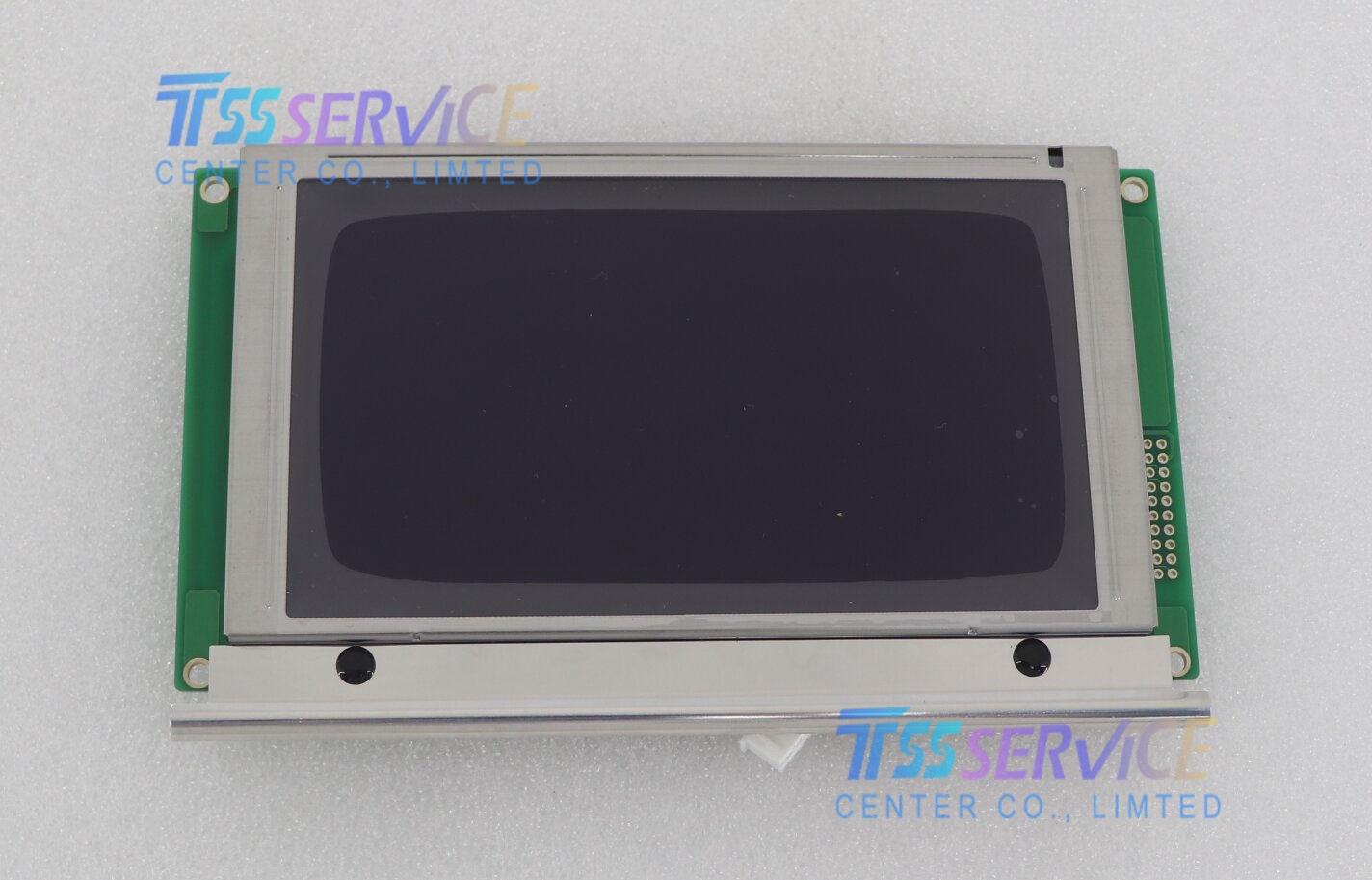

HDM128GS24Y-1-9JDF | Hantronix 5.4" FSTN Industrial Graphic LCD Module
HDM128GS24Y-1-9JDF is an industrial monochrome FSTN graphic LCD module manufactured by Hantronix with 240×128 dots resolution, built-in T6963C controller and single CCFL backlight unit. Featuring transmissive display mode, standard 20-pin parallel interface and 5V single power supply, this robust screen is widely used as replacement display for legacy industrial controllers, testing instruments, medical devices and original equipment retrofit projects。
| Parameter Item |
Detailed Specification |
| Part Number |
HDM128GS24Y-1-9JDF |
| Manufacturer |
Hantronix (USA brand) |
| Screen Size |
5.4 inch FSTN Graphic LCD |
| Native Resolution |
240(H) × 128(V) dot matrix |
| Display Type |
FSTN Transmissive, Normally White, Monochrome |
| Active View Area |
128.0mm(W) × 74.0mm(H) |
| Overall Outline Size |
170.0(W) × 102.0(H) × 14.0(T) mm |
| Dot Pitch |
0.45mm × 0.45mm, Dot Size:0.40×0.40mm |
| Backlight |
Built-in Single CCFL backlight, external inverter needed |
| Built-in IC |
Toshiba T6963C onboard LCD controller |
| Signal Interface |
20Pin standard parallel MCU 8-bit data bus |
| Logic Supply Voltage |
DC 5.0V ±5% |
| Typical Contrast Ratio |
300:1 |
| Viewing Angle |
L/R:45°, U/D:35°(CR≥10) |
| Operating Temperature |
0℃ ~ +50℃ |
| Storage Temperature |
-20℃ ~ +60℃ |
| Surface Treatment |
Anti-glare hard coating front glass |
| Product Status |
Obsolete original industrial spare display for equipment repair |
