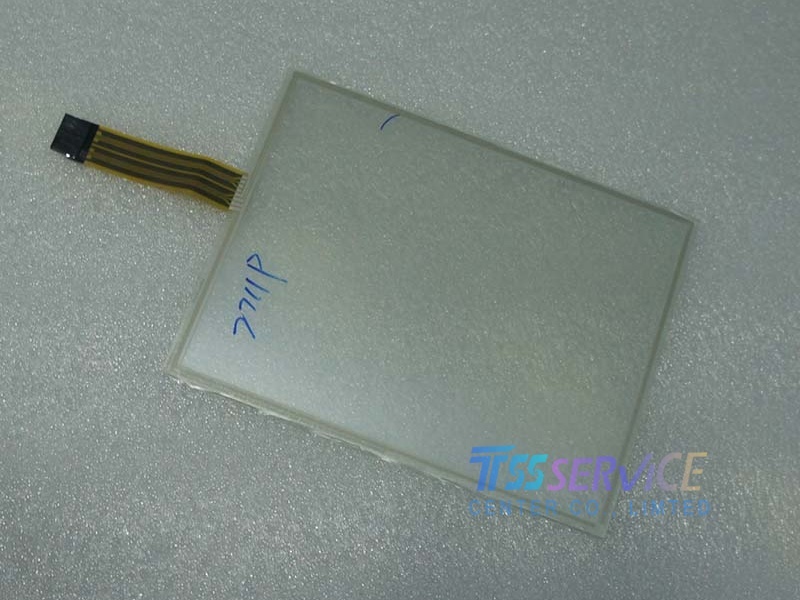

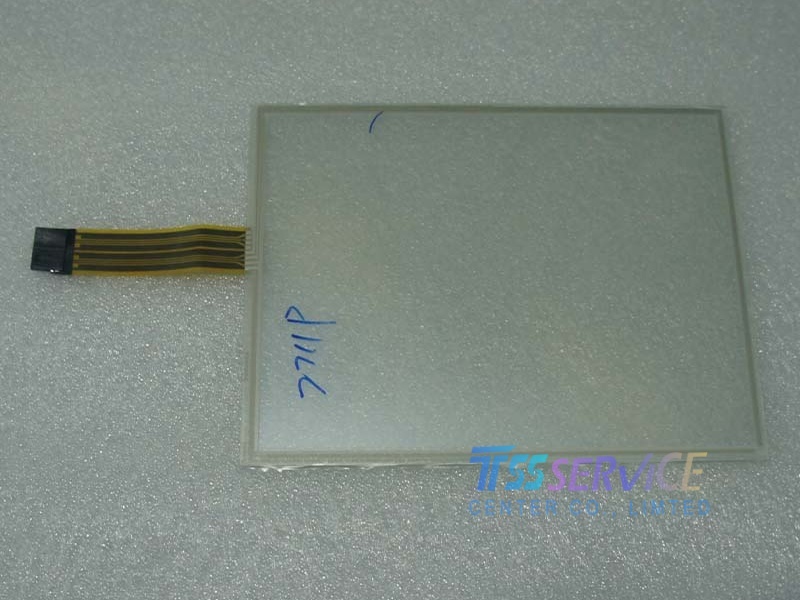

Restore precise touch response and optical clarity to your Rockwell Automation PanelView Plus 1000 series HMI. This industrial-grade digitizer is engineered for direct replacement on model 2711P-T10C4D1, minimizing downtime and maintenance costs. Widely used in manufacturing, water treatment, and energy control panels where reliable HMI interaction is critical.Note: This product is a replacement touch digitizer/glass layer only, NOT a complete PanelView Plus HMI terminal. Designed for maintenance engineers and MRO buyers to restore touch functionality without replacing the entire unit.
| Parameter |
Detailed Specification |
Compliance & Fit Note |
| Compatible Original Model |
Allen-Bradley 2711P-T10C4D1 PanelView Plus 1000 HMI Terminal |
1:1 matches original factory mounting holes, interface and electrical specifications, fully plug-and-play compatible |
| Display Size |
10.4 inches diagonal (264.2mm) |
Matches original factory 4:3 standard VGA display panel, no visual deviation or touch dead zones |
| Touch Technology |
4-wire Analog Resistive |
Complies with industrial touch standards, high-precision single-touch, compatible with original factory touch driver, no additional calibration required |
| Active Touch Area |
211 mm (W) × 158 mm (H) |
1:1 corresponds to the original factory active display area, full coverage without touch dead zones |
| Interface Type |
Original factory-matched FPC flexible flat cable interface |
No soldering required, directly connects to the original factory motherboard interface, zero modification for installation |
| Front Ingress Protection Rating |
IP65 (NEMA 4/4X/12) |
Achieves the same dustproof, splash-proof, and oil-resistant standards as the original factory when properly installed, compliant with IEC 60529 industrial protection specifications |
| Operating Temperature |
0°C ~ 50°C (32°F ~ 122°F) |
Fully matches the original factory operating environment requirements, suitable for harsh industrial sites |
| Storage Temperature |
-40°C ~ 70°C (-40°F ~ 158°F) |
Meets global long-distance transportation and storage environment requirements |
| Mechanical Lifespan |
≥1,000,000 touch operations |
Industrial-grade durability, far exceeding commercial touch product standards |
| Mounting Compatibility |
Matches original factory panel cutout dimensions 270 mm × 212 mm |
No modification to cabinet cutout required, direct replacement of the original touch glass |
Core Product Advantages
1. Factory-Grade Precision Fit, Zero-Calibration Quick Replacement
Strictly molded according to the original factory drawings of the Allen-Bradley PanelView Plus 2711P series, with 1:1 replication of mounting dimensions, cable interface and touch parameters. After replacement, no HMI program modification, no touch calibration, no additional debugging is required, and it can work normally when powered on, greatly reducing equipment downtime and maintenance time.
2. Industrial-Grade Durability for Harsh Industrial Scenarios
- Adopts industrial-grade PET substrate and high-sensitivity conductive coating, with strong anti-electromagnetic interference capability, maintaining stable touch performance even in complex electromagnetic environments in factories
- Surface hardened scratch-resistant treatment, oil and chemical corrosion resistance, suitable for complex use scenarios such as workshops and outdoor cabinets
- IP65 front protection, which can resist low-pressure water flushing and dust intrusion after correct installation, in line with NEMA 4/4X/12 industrial enclosure standards
- Wide temperature design, stable full-load operation at 0-50°C, meeting the requirements of most industrial site environments
3. Full-Process Quality Inspection, 100% Pre-Shipment Full Testing
Each piece of 2711P-T10C4D1 touch glass undergoes strict full-item testing before leaving the factory to ensure product quality:
- Full-area test of touch linearity and sensitivity, no dead zones, no drift
- Full test of interface continuity and electrical performance, 100% compatible with the original factory motherboard
- High and low temperature cycle test to ensure stability in extreme environments
- Mechanical strength and protection performance test, in line with industrial-grade standards
Model Number Decoding & Compatibility Specification
2711P-T10C4D1 Original Model Decoding, Precision Fit
This product is designed for PanelView Plus terminals defined by the following model number breakdown:
2711P: Allen-Bradley PanelView Plus Series Industrial HMIT: Touch-enabled terminal model (distinguished from keypad-only "K" models)10: 10.4-inch display specificationC: Color display terminal4: Ethernet + dual serial port communication configurationD: English keypad layout version1: Hardware revision identifier
Extended Compatibility: This touch glass is also compatible with the full 2711P-T10Cxx series PanelView Plus terminals of the same size and specification. If you need to confirm the compatibility of other models, please contact our technical engineers.
Quick Installation Guide
- Power Off Before Operation: Be sure to disconnect the 24V DC power supply of the HMI unit before installation to avoid equipment damage caused by static electricity and short circuits.
- Disassembly: Loosen the unit mounting screws, remove the front panel, and disconnect the cable interface of the original touch glass.
- Replacement Installation: Clean dust and residual adhesive in the panel, align the new touch glass with the mounting position and fix it, and plug in the cable interface.
- Power-On Test: Restore the unit installation, it can work normally after power on, no additional touch calibration is required.
- ESD Protection: Please wear an anti-static wrist strap during the whole operation to avoid electrostatic breakdown of touch components.
