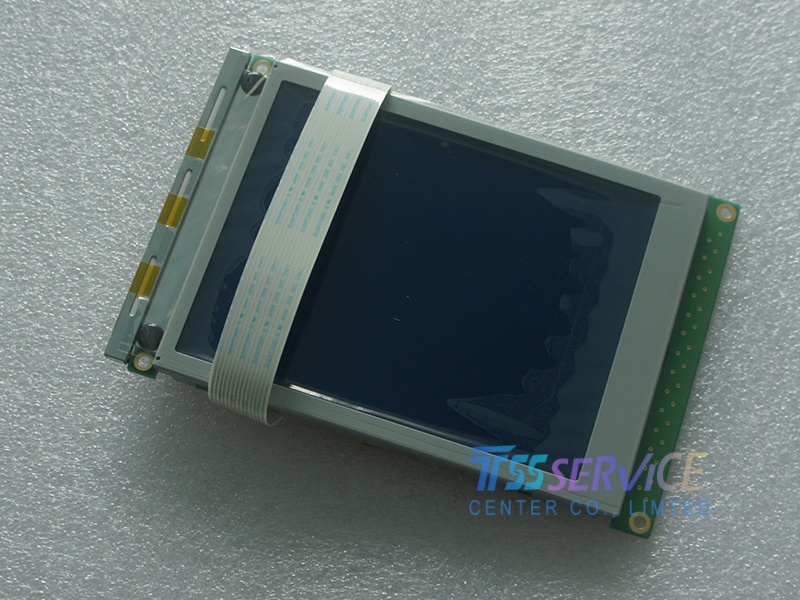

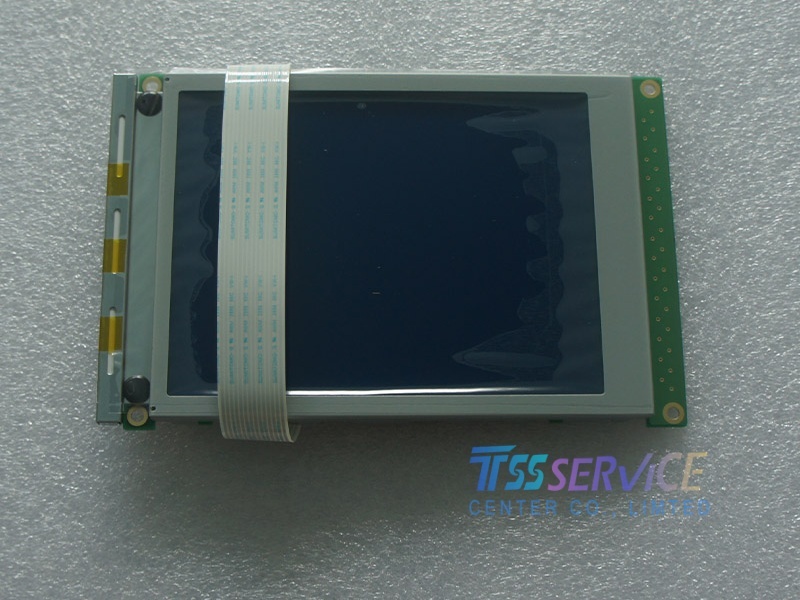

DMF-50840NB-FW-AKE-AS | Optrex (Kyocera) 5.7" QVGA Blue STN Monochrome Graphic LCD Module
DMF-50840NB-FW-AKE-AS is a 5.7-inch industrial monochrome STN graphic LCD module manufactured by Optrex (Kyocera Display), belonging to classic DMF-50840 series. It adopts blue background & white font transmissive STN technology, single CCFL backlight, onboard graphic controller, 4-bit parallel MCU interface and full metal shielding frame. The suffix AKE-AS stands for fixed FPC pin definition, industrial assembly version, non-RoHS original industrial variant. It is widely used as original matching screen for injection molding machines, laboratory analytical instruments, mining control terminals, legacy medical diagnostic equipment and maintenance replacement spare screens for discontinued automation devices.
| Parameter Item |
Specification Details |
| Full Model Number |
DMF-50840NB-FW-AKE-AS |
| Manufacturer |
Optrex (Kyocera Display) |
| Display Diagonal |
5.7 inch, landscape, 4:3 |
| Native Resolution |
320(H) × 240(V) dots (QVGA monochrome graphic) |
| LCD Technology |
STN / FSTN, Blue background, white character, Transmissive |
| Dot Size |
0.33 mm (W) × 0.33 mm (H) |
| Dot Pitch |
0.36 mm (W) × 0.36 mm (H) |
| Active View Area (AA) |
120.0 mm (W) × 90.0 mm (H) |
| Overall Outline Dimension |
167.1(W) × 109.0(H) × 11.0(D) mm (exclude CCFL cable) |
| Typical Brightness |
60 cd/m² (IL=4.0mA) |
| Typical Contrast Ratio |
5:1 |
| Viewing Direction Reference |
6 o'clock |
| Viewing Angle (CR≥2) |
Horizontal ±45°, Vertical -40° / +25° |
| Response Time (Tr / Td) |
270 ms / 400 ms typical |
| Backlight System |
Single CCFL white lamp, service life ≥25,000 hours, external inverter required |
| Signal Interface |
4-bit parallel MCU bus, dedicated AKE-AS 14-pin FPC flat cable connector |
| Built-in Controller |

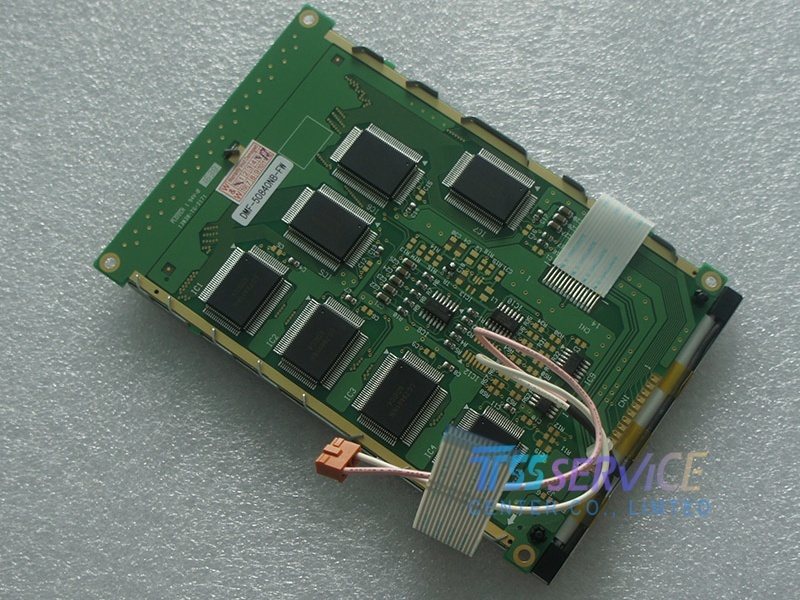

Integrated SID13700 graphic driver IC, support text, curve, bitmap display |
| Logic Supply Voltage VCC |
4.5V ~ 5.5V DC (Typical 5V) |
| LCD Driving Voltage |
Adjustable 19.9 ~ 24.9V |
| Duty / Bias |
1/240 duty cycle, 1/14 bias |
| Operating Temperature |
0°C ~ +50°C |
| Storage & Transport Temp |
-20°C ~ +60°C |
| Touch Function |
No integrated touch panel |
| Housing Structure |
Metal shielding frame, anti-electromagnetic interference |
| Net Weight |
Max 230 g |
| Environmental Compliance |
Non-RoHS original industrial version |
| Production Status |
Discontinued original production, only stock available for equipment maintenance replacement |
