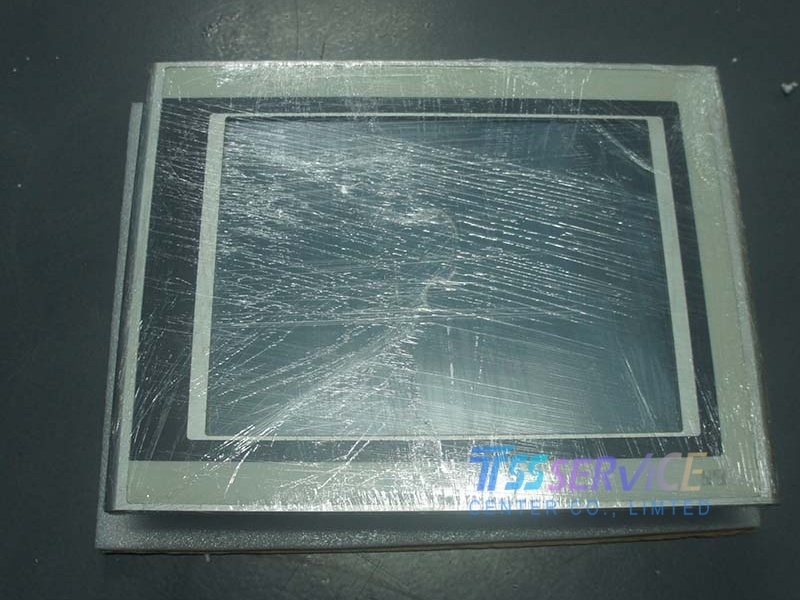

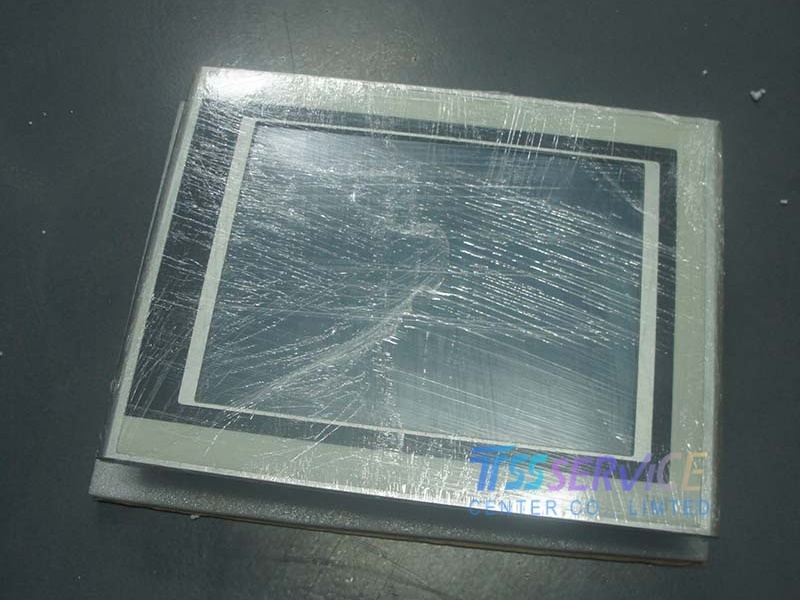

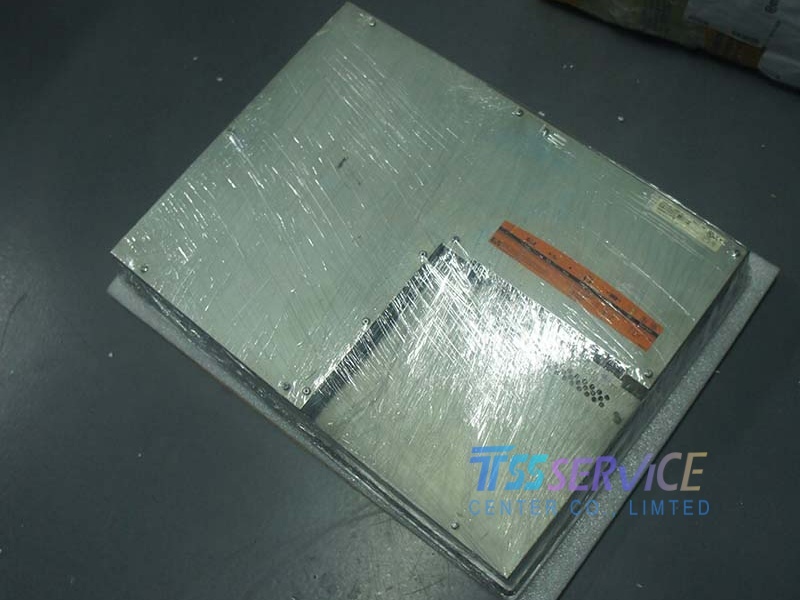

New Touch Screen 4PP120.1505-31
Category Specification
General Information
Model Number 4PP120.1505-31
Series B&R Power Panel 100/200
Type Industrial HMI (Human-Machine Interface) / Panel PC
Display
Display Size 15"
Display Type Color TFT Active Matrix LCD
Resolution 1024 x 768 pixels (XGA)
Display Colors 16.7 million
Brightness 330 cd/m²
Backlight Life 35,000 hours (at half brightness)
Contrast Ratio 300:1
Viewing Angles Horizontal: 65°; Vertical: 50/55°
Touch Screen Analog Resistive (12-bit resolution, 78% transmission)
Processor & Memory
CPU Geode SC2200, 266 MHz
SDRAM 64 MB (144-pin SO-DIMM socket)
Storage CompactFlash Type I slot
Communication Interfaces
Ethernet 1x 10/100Base-T (RJ45 connector)
Serial Ports 1x RS232 (modem-capable, not electrically isolated)
USB Ports 2x USB 1.1 (Type A, 1.5-12 Mbps)
Expansion Slots aPCI slots available
Electrical Characteristics
Power Supply 24 VDC
Power Consumption 30 W typical
Current Spike Max. 20 A for <1 ms during startup
Battery Battery-buffered real-time clock
Environmental
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Protection Rating IP65 (front panel) / IP20 (rear housing)
Cooling Method Fan-free operation
Physical Specifications
Dimensions (W x H x D) 435 x 330 x 71.5 mm (17.1 x 13.0 x 2.8 in)
Weight Approx. 6.3 kg (13.9 lbs)
Construction Material Naturally anodized aluminum (front)
Software & Compatibility
Operating System Automation Runtime, BIOS, Windows CE, or Windows XP Embedded
Programming Software B&R Automation Studio
Compatibility Software compatible with B&R 2000 PLC family
