| General Information |
|
| Model Number |
4PP220.057-K06 |
| Series |
B&R Power Panel 400 (PP420) |
| Type |
Integrated Industrial HMI / Panel PC |
| Display |
|
| Display Size |
5.7" |
| Display Type |
Color TFT Active Matrix LCD |
| Resolution |
320 x 240 pixels (QVGA) |

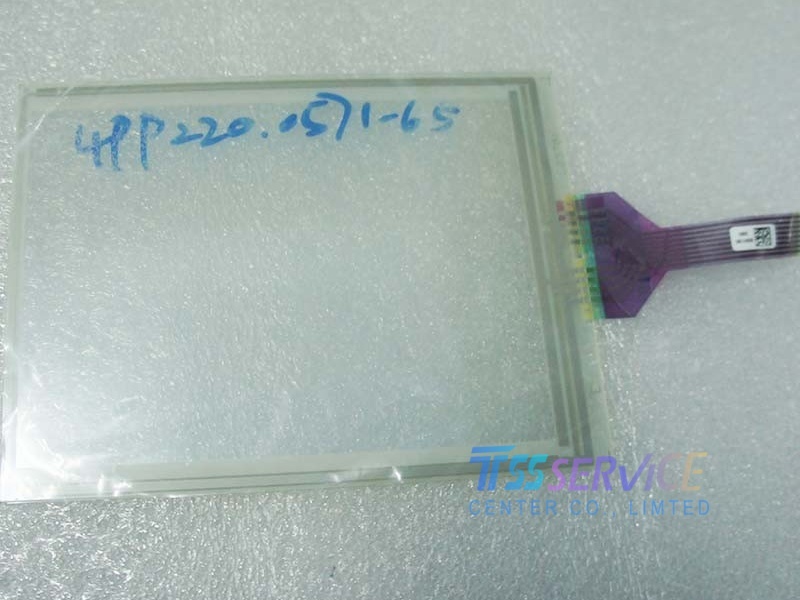

| Touch Screen |
Analog Resistive Touch Panel |
| Backlight |
LED Backlight |
| Backlight Life |
Approx. 50,000 hours |
| Processor & Memory |
|
| CPU |
32-bit, 200 MHz (Intel compatible) |
| SDRAM |
64 MB (Standard configuration) |
| SRAM |
512 KB (Battery-backed) |
| CompactFlash |
External slot (Type I) for storage expansion |
| Communication Interfaces |
|
| Ethernet |
1x 10/100Base-T (RJ45 connector) |
| Serial Ports |
1x RS232 (Interface 2) |
| USB Ports |
1x USB (Type A, for USB devices) |
| CAN Bus |
1x CAN interface (Interface 1) |
| Electrical Characteristics |
|
| Power Supply |
24 VDC (+25% / -20%) |
| Power Consumption |
Max. 12 W (Typically 7 W) |
| Battery |
CR2032 (for RTC and SRAM backup) |
| Environmental |
|
| Operating Temperature |
-10°C to +55°C (14°F to 131°F) |
| Storage Temperature |
-20°C to +65°C (-4°F to 149°F) |
| Protection Rating |
IP65 (Front panel) / IP20 (Rear housing) |
| Humidity |
5% to 85% (non-condensing) |
| Physical Specifications |
|
| Dimensions (W x H x D) |
197 x 140 x 60 mm (7.76 x 5.51 x 2.36 in) |
| Cut-out Dimensions |
186 x 132 mm (7.32 x 5.20 in) |
| Weight |
Approx. 1.2 kg (2.65 lbs) |
| Software & Compatibility |
|
| Operating System |
Runs on B&R Automation Runtime |
| Programming Software |
B&R Automation Studio (Version 3.0 or higher recommended) |
| Certifications |
CE, UL, cUL |
