1. Display & Touch Screen
| Parameter | Specification | Notes |
|---|---|---|
| Display Type | 5.7" Monochrome LC-display -1-10 | High-contrast for excellent readability |
| Resolution | QVGA, 320 x 240 pixels -1 | |
| Backlight / Brightness | LED backlight (typical for Power Panel series) | Long lifetime |

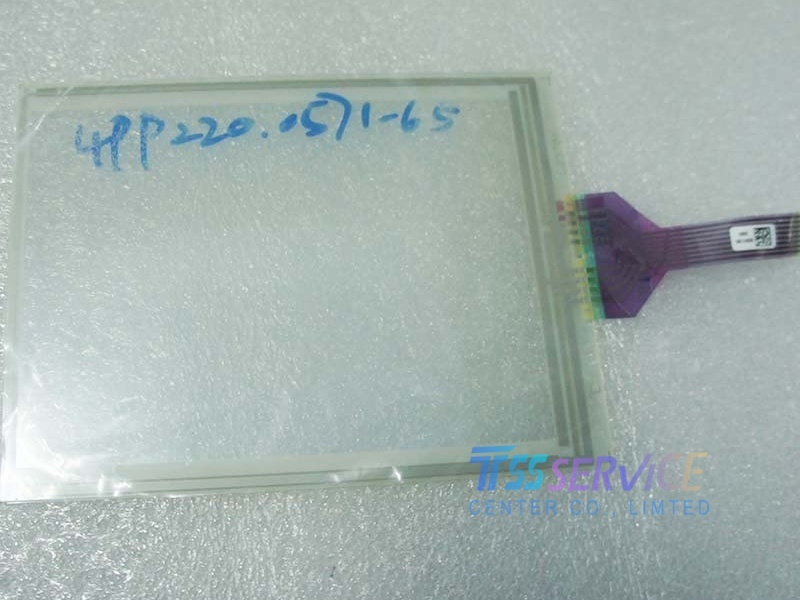

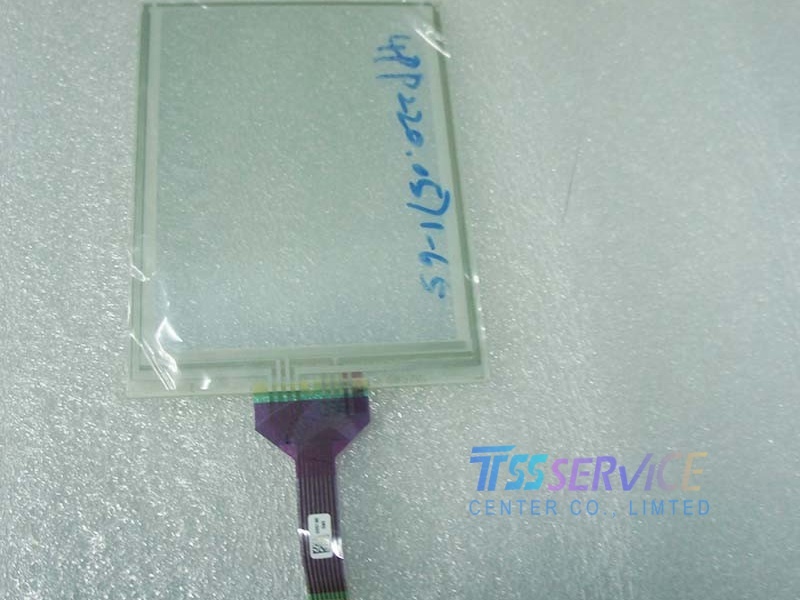

| Touch Screen Type | Analog Resistive -1-7-10 | Precise input, operable with gloves |
| Front Protection | IP65 -1-10 | Dust-tight and protected against water jets |
2. Processor & Memory
3. Power Supply & Electrical
4. Interfaces & Connectivity
| Interface | Type / Specification | Notes |
|---|---|---|
| Ethernet | 10/100 Mbps -1-7-10 | Standard RJ45 connector |
| USB | 2 x USB ports -1-7-10 | For connectivity to peripherals |
| Serial | RS232 (modem-capable, not isolated) -1-7 | |
| Expansion Slot | 1 x aPCI slot -1-10 | For fieldbus or additional interfaces |
| Storage Slot | CompactFlash Type I -1-7-10 | For data storage and application loading |
| Operating Mode Switches | 2 x 16-digit switches -7 | For mode selection and configuration |
5. Physical & Environmental Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Dimensions (HxWxD) | Approx. 190 x 150 x 60 mm (typical Power Panel 200 size) | Actual dimensions may vary slightly |
| Weight | 1700 g (1.7 kg) -1 | Some sources list ~1.76 kg -1 |
| Operating Temperature | 0°C to +55°C -6 | Some variants support -25°C to +60°C -6 |
| Storage Temperature | -40°C to +85°C -6 | |
| Enclosure Rating (Rear) | IP20 -4-6 | Protection against solid objects |
| Cooling | Fan-free operation -7 | Passive cooling for reliability |
6. Key Features & Functionality
| Feature | Description |
|---|---|
| User Interface | Combines touch screen with possible function keys (specific layout depends on configuration) -7 |
| Mounting | Supports both horizontal and vertical mounting placements -7 |
| Software Compatibility | Software compatible with B&R 2000 PLC family -7 |
| Status LEDs | 2 status LEDs (User and Compact Flash) -7 |
| Operating System | Can run BIOS or Automation Runtime (B&R's real-time OS) -7 |
| Multilingual Support | Supports multiple languages via software configuration |
7. Typical Applications
| Industry | Application Example |
|---|---|
| Manufacturing | Machine control panels, production line HMIs -6 |
| Automotive | Assembly line operator terminals -5-10 |
| Food & Beverage | Processing equipment interfaces (IP65 front allows washdown) -5-10 |
| Packaging | Labeling machine controls, filling line terminals -5 |
| Material Handling | Conveyor system control stations, warehouse terminals |
