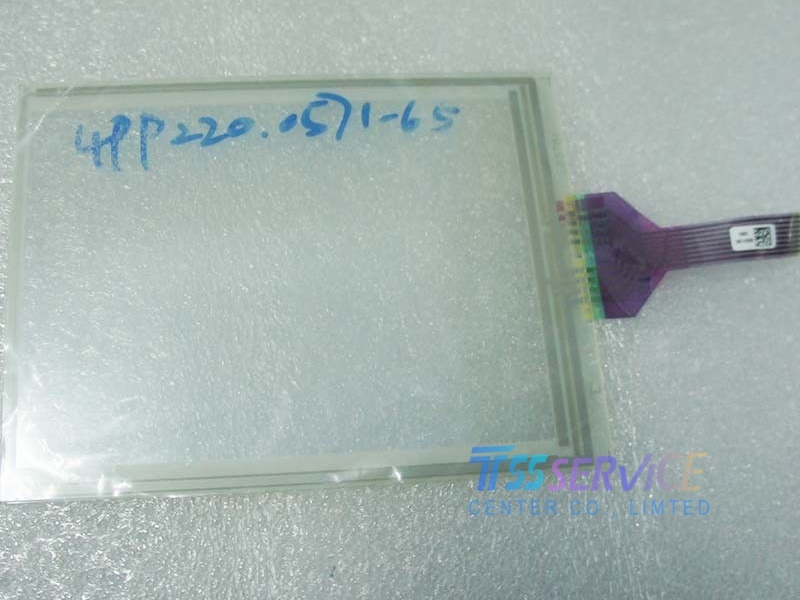

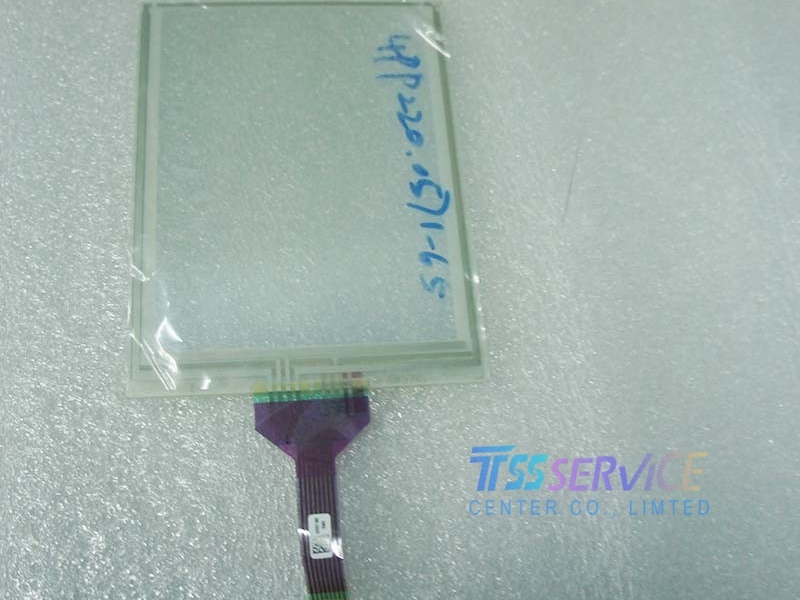

New Touch Screen 4pp220.0571-65
Category Specification
General Information
Model 4PP220.0571-65
Series Power Panel PP420
Type Industrial HMI (Human Machine Interface) / Panel PC
Display
Display Size 5.7"
Display Type QVGA Monochrome LCD
Resolution 320 x 240 pixels
Touch Screen Resistive analog
Memory & Storage
SDRAM 128 MB
SRAM 512 KB (battery-backed)
Data Storage CompactFlash slot (Type I)
Expansion Slot 1 aPCI slot
Communication Interfaces
Network Ethernet 10/100 (ETH)
Serial RS232
USB 2x USB (Type A and Mini-USB)
Electrical Characteristics
Power Supply 24 VDC
Power Consumption Typically 12 W
Nominal Current 0.5 A
Environmental
Operating Temperature -10°C to +55°C (14°F to 131°F)
Protection Rating IP65 (front panel)
Physical Specifications
Weight Approx. 1.76 kg (3.88 lbs)
