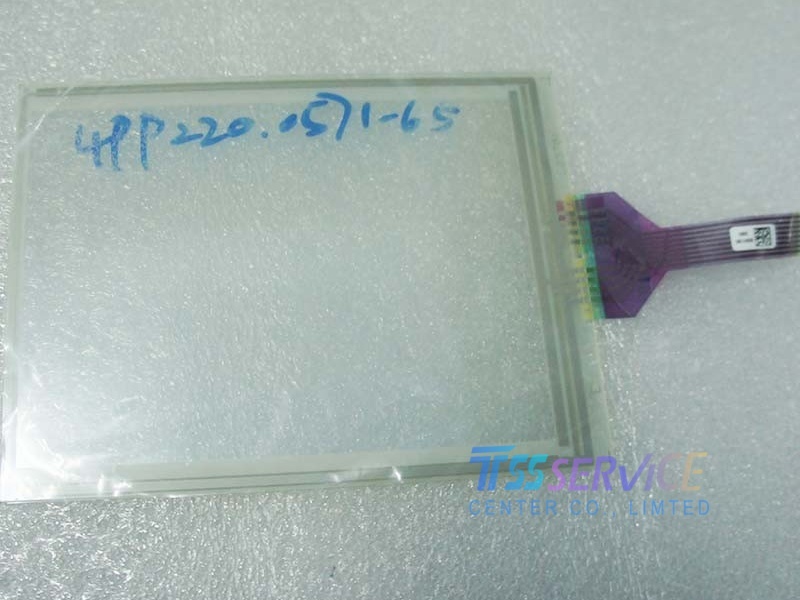

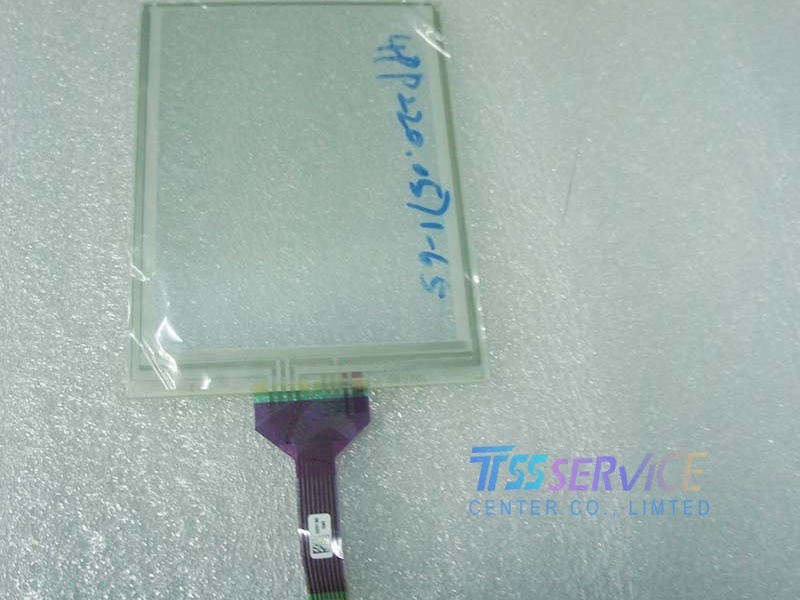

New Touch Screen 4pp220.0571-K23
1. Display Specifications
Parameter Specification Notes
Display Type 5.7" Monochrome LCD
Resolution 320 × 240 pixels QVGA
Display Grayscale 8 shades of gray Provides clear visual contrast for text and graphics
Touch Screen Type Resistive Analog Touchscreen Durable, can be operated with gloved hands
2. Communication Interfaces
Interface Type Notes
Ethernet Yes For network connectivity
POWERLINK Yes Real-time fieldbus communication
CF Card Slot CompactFlash card slot For data storage and application loading
3. Electrical Specifications
Parameter Specification Notes
Input Voltage 24 VDC ±25% Wide voltage tolerance for industrial compatibility
Nominal Power Consumption 12 W Under normal operation
Maximum Power Consumption 17 W Under extreme usage
Startup Current 20 A maximum for <1 ms Prevents component damage and eases loading on power supplies
Electrical Isolation Built-in Protects against voltage spikes and ground loops
Bleeder Resistance ≥47 kOhm Ensures safe discharge of residual voltages on shutdown
4. Physical & Environmental Specifications
Parameter Specification Notes
Front Panel Protection IP65 Dust-tight and protected against water jets
Operating Temperature 0°C to +50°C Standard industrial temperature range
Maximum Operating Altitude 3000 meters Stable performance at elevation
Reset Button Externally accessible Enables quick system reboots without opening enclosures
LED Indicators 2 LEDs: Green (user-configurable) + Yellow (CF card activity) Aids in system diagnostics and monitoring data storage
5. Key Features & Benefits
Feature Benefit
5.7" Monochrome Display Clear, 8-shade grayscale visualization for essential graphical elements and text; simplified operation without color processing load
Resistive Touchscreen Reliable operation with gloved hands in industrial settings
Ethernet + POWERLINK Flexible connectivity for network integration and real-time fieldbus communication
IP65 Front Protection Withstands dust, water spray, and harsh environments
Wide Voltage Tolerance (±25%) Ensures compatibility with various industrial power supplies
Electrical Isolation Prevents ground loop issues and protects internal circuits from external voltage surges; improves device longevity
External Reset Button Reduces downtime during maintenance or troubleshooting
Diagnostic LEDs User-configurable green LED and yellow CF LED for monitoring system status and CompactFlash operations
