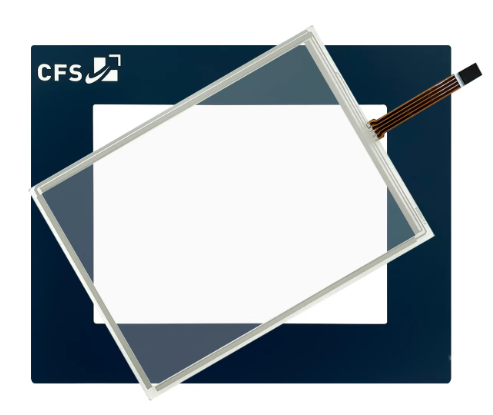

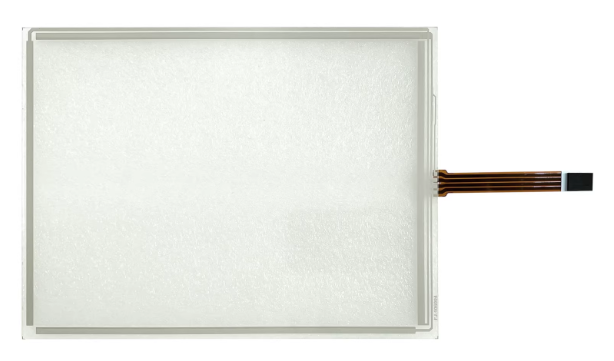

New Touch Screen 4PP220.1043-K08

SKU: 4PP220.1043-K08
It integrates a 10.4-inch TFT color display with an analog resistive touchscreen, combining operator control, visualization, and control functionality into a single, space-saving unit . Designed for industrial automation applications, it features a robust processor, multiple communication options, and IP65 front protection for reliable operation in harsh environments .
0.0 (0 Reviews)
0 Sold
$56.00 $55.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • New Touch Screen 4PP220.1043-K08
  • New Touch Screen 4PP220.1043-K08
  • New Touch Screen 4PP220.1043-K08
  • New Touch Screen 4PP220.1043-K08
1/1
  • New Touch Screen 4PP220.1043-K08
  • New Touch Screen 4PP220.1043-K08
  • Description
New Touch Screen 4PP220.1043-K08

1. Display Specifications

Parameter Specification Notes
Display Type 10.4" TFT Color LCD
Resolution 640 × 480 pixels (VGA)
Display Colors 256 colors
Contrast Ratio 600:1
Brightness 350 cd/m² Background lighting brightness
Touch Screen Type Analog Resistive Durable, can be operated with gloved hands
Touch Controller Hampshire, serial, 12-bit 78% transmission degree

2. Processor & Memory

Parameter Specification Notes
CPU Geode SC2200 Processor
DRAM Memory 64 MB
Flash Memory (Firmware) 2 MB For system firmware
Cooling System Passive heat sink Fanless operation

3. Communication Interfaces

Interface Type Notes
Serial Interface RS232
CF Card Slot CompactFlash card slot For data storage and application loading

4. Electrical Specifications

Parameter Specification Notes
Input Power 24 VDC
Starting Current 20 A maximum For <1 millisecond
Power Consumption 17 W typical / 22 W maximum

5. Physical & Environmental Specifications

Parameter Specification Notes
Front Panel Protection IP65 Dust-tight and protected against water jets
Rear Panel Protection IP20 With CompactFlash card installed
Operating Temperature 0°C to +50°C
Storage Temperature -20°C to +70°C Safe transport within same range
Maximum Operating Altitude 3000 meters
Packaging Dimensions (Shipping) 35 × 25 × 9 cm
Gross Weight (Shipping) 1.0 kg

6. Key Features & Benefits

Feature Benefit
10.4" TFT Color Display Large, clear visualization with 640×480 resolution and 256 colors
Analog Resistive Touch Reliable operation with gloved hands in industrial settings
Fanless Passive Cooling No moving parts for enhanced reliability and reduced maintenance
IP65 Front Protection Withstands dust, water spray, and harsh environments
Wide Operating Temperature Suitable for demanding industrial conditions (0°C to +50°C)
High Altitude Capability Usable up to 3000m elevation
