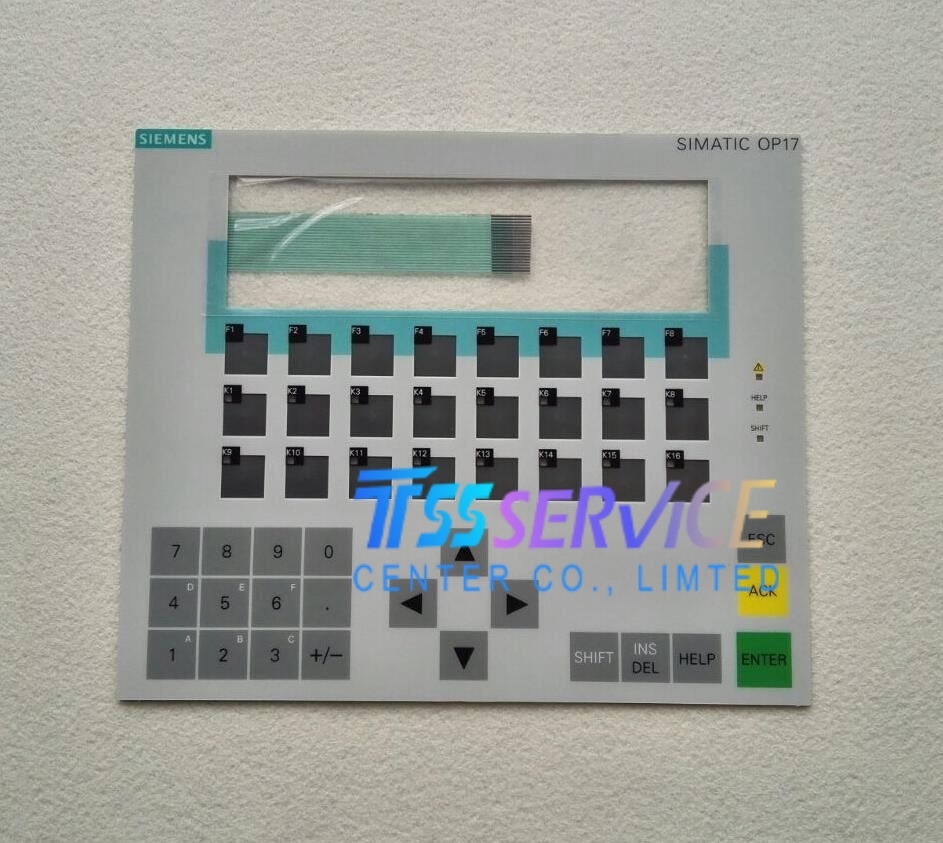

6AV3617-1JC00-0AX1 Membrane Keypad use on Siemens SIMATIC OP17 model
Specifications
Basic Information
-
- Product Name: Replacement Membrane Switch / Membrane Keypad
- Compatible Display: Monochrome LCD text screen (4×20 / 8×40 character)
- Overall Outline Size: 233 mm (W) × 161 mm (H)
- Weight: Approx. 0.18 kg
Keypad Mechanical & Material Parameters
- Surface Overlay: Matte anti-abrasion PET film, industrial screen printing with color-coded keys (ESC yellow, ACK yellow, ENTER green)
- Circuit Substrate: Double-layer conductive polyester PET base
- Conductive Trace: Silver paste circuit with anti-oxidation coating
- Actuation Structure: Integrated metal dome tactile switch
- Key Layout:
- 16 F-function keys (F1–F16)
- Numeric keypad (0–9, +/-)
- 4-direction navigation arrow keys
- Function shortcut keys: ESC, ACK, ENTER, SHIFT, INS, DEL, HELP
- Actuation Force: 120–160 gf
- Mechanical Lifespan: ≥1,000,000 presses per single key
- Connection: Integrated FPC flat cable for direct plug to HMI mainboard
- Rear Adhesive: Industrial high-adhesion double-sided tape for front frame bonding
- Flame Retardant Grade: UL94 V-0
Electrical Parameters
- Working Signal Voltage: 24 V DC logic circuit
- Contact Resistance (Pressed): 15–60 Ω
- Open Circuit Insulation Resistance: ≥100 MΩ
- Dielectric Withstand Voltage: 500 V AC / 1 minute no breakdown
- Leakage Current: ≤1 μA
- Operating Signal Current: Microamp level low power consumption
Electrical Specifications
-
- Working Signal Voltage: 24 V DC logic circuit
- Contact Resistance (Pressed): 15–60 Ω
- Open Circuit Insulation Resistance: ≥100 MΩ
- Dielectric Withstand Voltage: 500 V AC / 1 minute no breakdown
- Leakage Current: ≤1 μA
- Operating Signal Current: Microamp level low power consumption
Environmental Specifications
-
- Operating Temperature: 0 ℃ ~ +55 ℃
- Storage Temperature: -20 ℃ ~ +70 ℃
- Humidity: 5%–90% RH non-condensing
- Front Panel Protection Class: IP65 when assembled with original rubber gasket
- Resistance: Resist machine oil, weak acid, workshop dust
Typical Applications
-
- Repair & refurbishment of legacy industrial machine control panels
- Packaging machinery, injection molding machines, printing equipment operation terminals
- Small production line monitoring, water treatment, HVAC, pump station control HMIs
- Old factory automation retrofit without replacing the complete OP17 host unit
