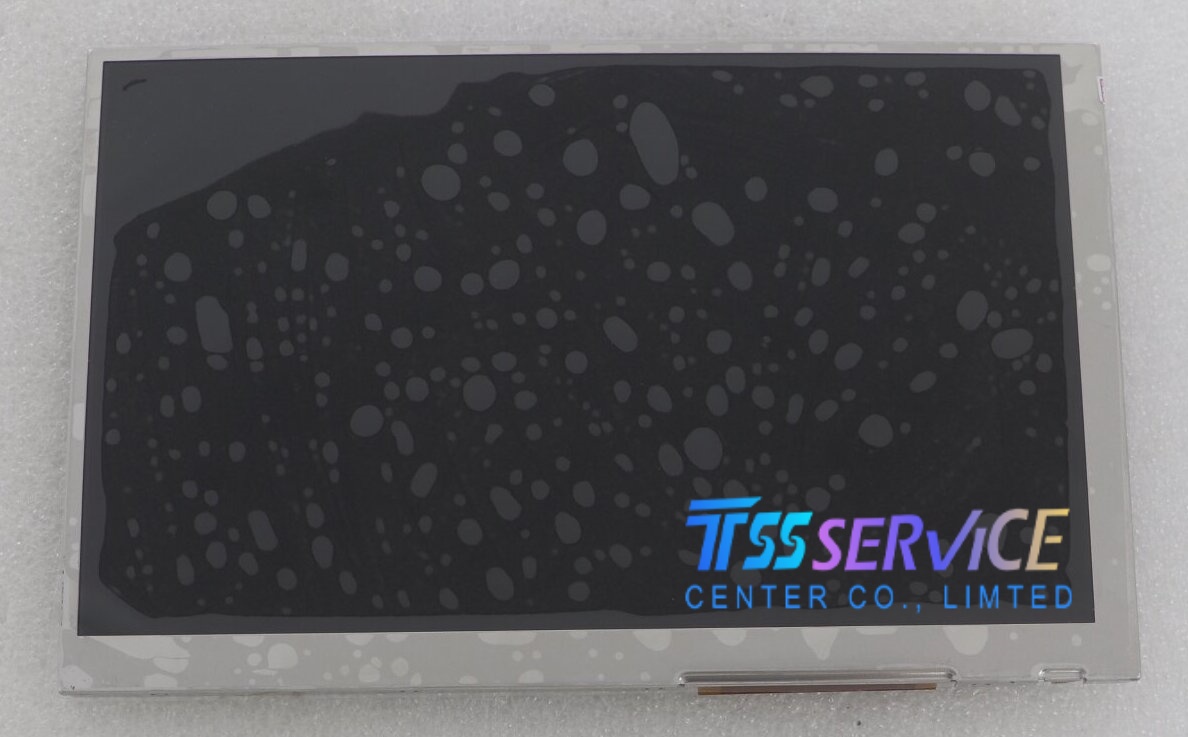

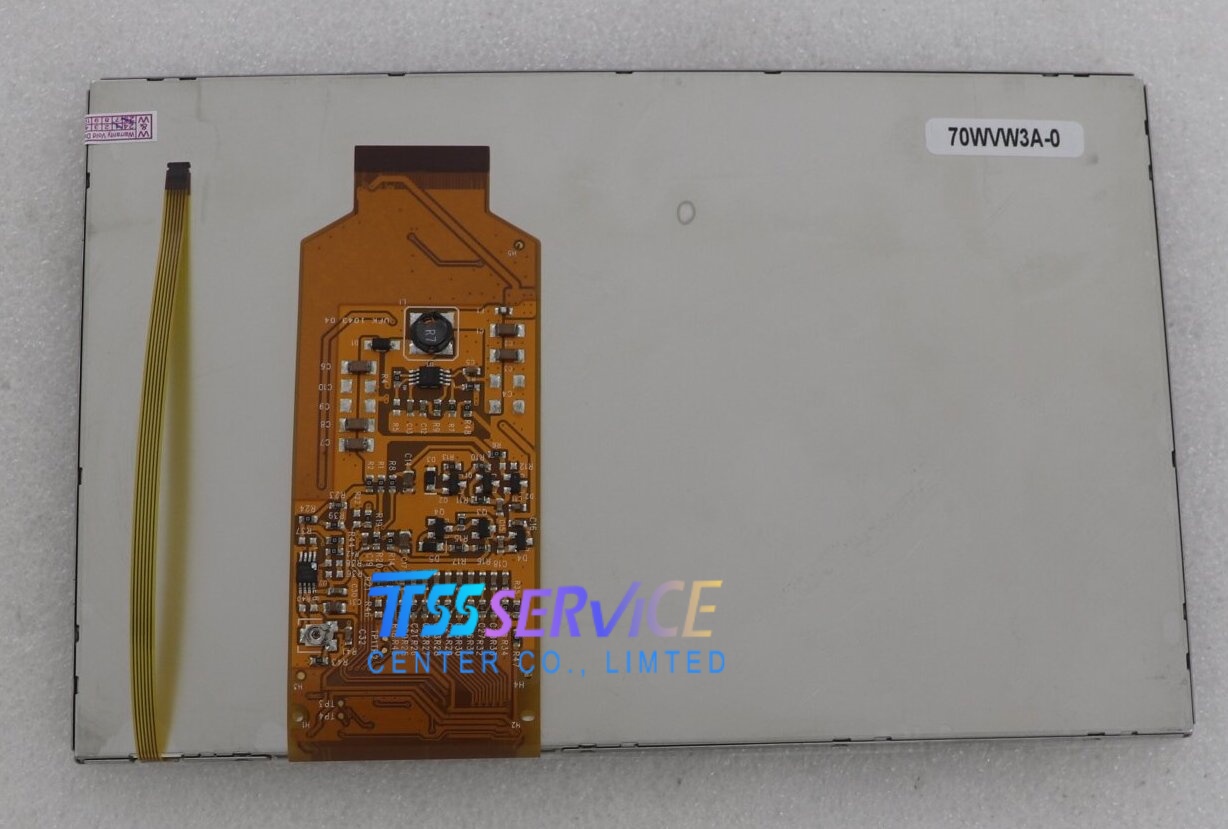

7 Inch LCD PANEL DISPLAY 70WVW3A-0 use for Industrial
Specifications
| Brand |
- |
Model |
70WVW3A-0 |
| Size |
7 Inch |
Pixel Format |
RGB Vertical Stripe |
| Active Area |
154.08 × 85.92 mm |
Outline Size |
165.0 × 105.8 × 3.65 mm |
| Brightness |
350cd/m²
|
Contrast Ratio |
400:1 |
| Resolution |
800(RGB)×480 |
Lamp |
WLED |
| Surface |
Matte ,Anti-glare |
Frequency |
- |
| Panel Type |
TFT-LCD, LCM |
Touch screen |
without |
| Signal Interface |
- 40Pin RGB Parallel, 3.3V supply voltage
|
Environment |
- Storage Temp.: -20 ~ 70 °C Operating Temp.: -30 ~ 80 °C
|
Typical Applications
1. Industrial Automation Field
- HMI human-machine touch panel for PLC, inverter, injection molding machine, textile equipment
- CNC controller display, robot handheld teach pendant replacement screen
- Intelligent detection instrument, environmental monitoring controller
2. Medical Equipment
- Portable medical monitor, infusion pump, diagnostic analysis device display screen
- Household medical control panel (blood glucose, blood pressure testing equipment)
3. Vehicle & On-board Equipment
- Industrial construction machinery monitor (forklift, engineering vehicle dashboard)
- Small-size onboard industrial display, forklift control terminal
4. Intelligent Home & Commercial Equipment
- Smart vending machine, POS small payment terminal
- Intelligent access control, industrial water/electric/gas controller panel
5. Other Portable Industrial Devices
- Handheld testing instrument, portable data acquisition equipment display
- FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 5-7days to your hand by DHL/FEDEX EXPRESS
Q:Can you give me a discount if I need bulk quantity?
A:Of course!If you make a large order, we will give you discount.
Q:If goods have problem when test, How we get warranty ?
A:Please kindly contact me .we will offer technical support to resolve. or change replacment goods for you.
