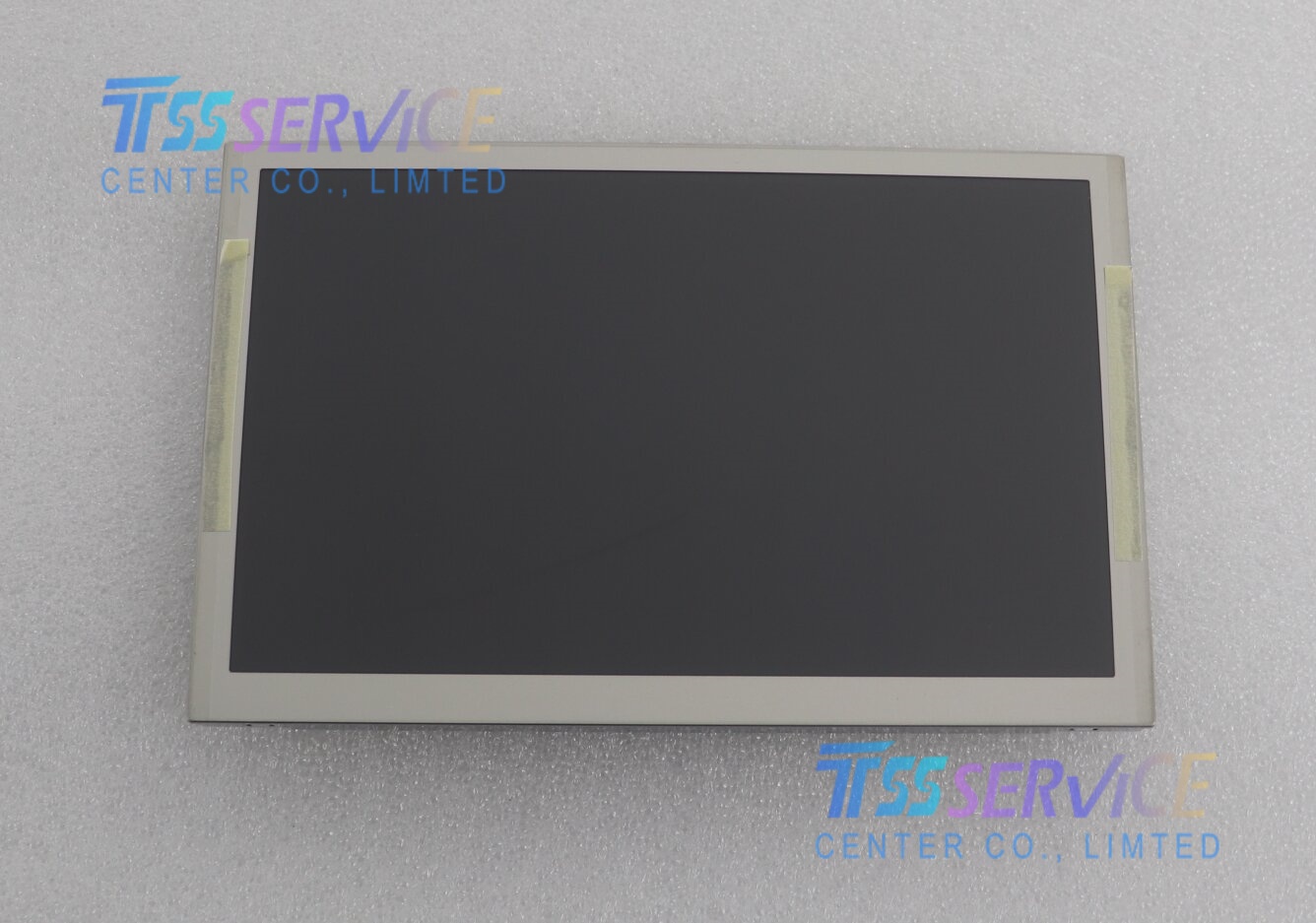

7 Inch P0700WVF1MA10 TFT TIANMA 800×480 LCD Panel screen for LAPTOP Gaming device

Name: 7 Inch P0700WVF1MA10 TFT TIANMA 800×480 LCD Panel screen for LAPTOP Gaming device
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: P0700WVF1MA10
Price: 73 USD
Availability: InStock

SKU: P0700WVF1MA10

Model: P0700WVF1MA
Manufacturer: TIANMA
Status: Industrial Grade, Mature Product (CCFL backlight version)

7 Inch P0700WVF1MA10 TFT TIANMA 800×480 LCD Panel screen for LAPTOP Gaming device

0.0 (0 Reviews)

0 Sold

~~$78.00~~ $73.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

7 Inch P0700WVF1MA10 TFT TIANMA 800×480 LCD Panel screen for LAPTOP Gaming device

Product Overview: Tianma P0700WVF1MA10

The P0700WVF1MA10 is a 7.0-inch Normally Black, Transmissive TFT-LCD module featuring an a-Si technology panel with WVGA resolution. It is engineered for harsh environments, offering ultra-high brightness (1000 cd/m²) and a wide operating temperature range (-30°C to +80°C). The module integrates a White LED backlight with a driver, supports 180-degree rotation, and features an anti-glare (haze) surface treatment.

Technical Specifications Table

Parameter	Specification
Model Number	P0700WVF1MA10
Manufacturer	Tianma (天马)
Panel Size	7.0 inch (Diagonal)
Display Type	a-Si TFT-LCD, Normally Black, Transmissive
Resolution	800 (RGB) × 480 pixels (WVGA)
Pixel Density	133 PPI
Brightness (Typ.)	1000 cd/m² (Ultra-High Brightness)
Contrast Ratio (Typ.)	1000:1
Viewing Angle (CR≥10)	85°/85°/85°/85° (Left/Right/Up/Down)
Backlight Type	White LED (with built-in driver)
Backlight Lifetime	> 70,000 hours
Operating Temperature	-30°C ~ +80°C (Wide Temperature)
Storage Temperature	-40°C ~ +90°C
Surface Treatment	Haze (Anti-glare/Anti-reflective)
Display Orientation	Supports 180° rotation
Gray Scale	6-bit or 8-bit selectable
Vibration Resistance	1.0G (9.8 m/s²)
Primary Interface	TTL / LVDS (Standard for this class, specific pinout requires datasheet)
Key Features	High Brightness, Wide Temp, Industrial Grade, RoHS Compliant
