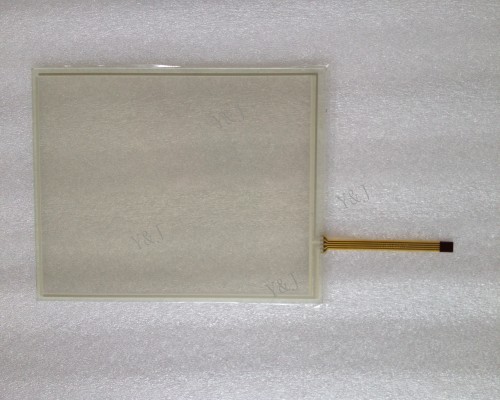

8.4 INCH AMT98511 4-Wire Resistive Touch Screen
Specifications
- Model: AMT98511 (Alternative PN: A105000215 / 1074.1004)
- Touch Type: 4-Wire Analog Resistive Touch Screen (RTP)
- Diagonal Size: 8.4 inch
- Compatible Display: Standard 8.4" 640×480 VGA TFT LCD
- Surface Material: Glass top layer, hard scratch-resistant coating
- Interface: 4-pin FPC flexible cable
- FPC Length: 79 mm, FPC Width: 6 mm
- Cable Outlet: Right side of touch glass
- 2. Mechanical Dimensions
- Overall Outer Dimension: 188 mm (W) × 141 mm (H)
- Active Touch Area: 179 mm (W) × 134 mm (H)
- Glass Thickness: Industrial standard thin glass
- Net Weight: ~120 g
3. Electrical Touch Parameters
- X-axis Resistance: 300Ω ~ 900Ω
- Y-axis Resistance: 200Ω ~ 800Ω
- Isolation Resistance: >20 MΩ @ DC 25V
- Operation Current: 5 mA ~ 25 mA
- ESD Endurance: 10KV (100Ω/250PF), no function failure
- Operating Voltage: 5V DC (matched standard industrial touch controller)
- Controller Support: RS232 / USB 2.0 full speed, plug-and-play
Typical Applications
-
-
-
- Industrial Robot Controller (WITTMANN robot CW818S original replacement touch)
- Factory Automation HMI control panels
- Injection molding machine operation terminals
- CNC machinery & equipment monitoring screens
- Medical auxiliary testing equipment (non-diagnostic)
- Industrial POS & workshop self-service terminals
- Embedded industrial control displays
