| Compatible Displays | Fits with 8.4-inch or 9.5-inch monochrome LCD displays |
| Parameter | Details |
|---|---|
| Part Number | A02B-0281-C120 (Common suffixes: #TBE, #TBR, /TBR) |

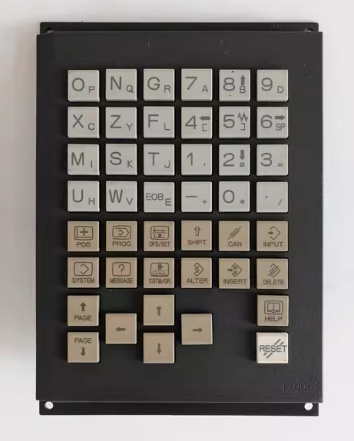

| Product Type | MDI Unit (Keyboard / Membrane Keypad) |
| Description | MDI UNIT (SYMBOL & TEST KEY) – For Fanuc i Series Control Systems -3 |
| Number of Keys | 44 keys (Hard Keyboard type) -1 |
| Key Type | Hard / Mechanical membrane -1 |
| Compatible Displays | Fits with 8.4-inch or 9.5-inch monochrome LCD displays -1 |
| Compatible Control Systems | Fanuc i Series: 16i-T, 18i-T, 21i-T (Commonly used on Machining Centers / Turning Centers) -1 |
| Associated Cable | A86L-0001-0282 (Keyboard cable for this MDI unit) -1 |
| Key Legend | English text / Symbols depending on variant -1 |
| Application | CNC Machine Control, Industrial Automation Interface -4 |
Direct Replacement: This unit serves as a direct replacement or spare part for the operator panel of Fanuc i Series CNC machines -1-3.
Variant Specifics:
Function: Acts as the primary interface for manual data input, program editing, and machine operation commands (Cycle Start, Feed Hold, Axis Movement, etc.) -4.
