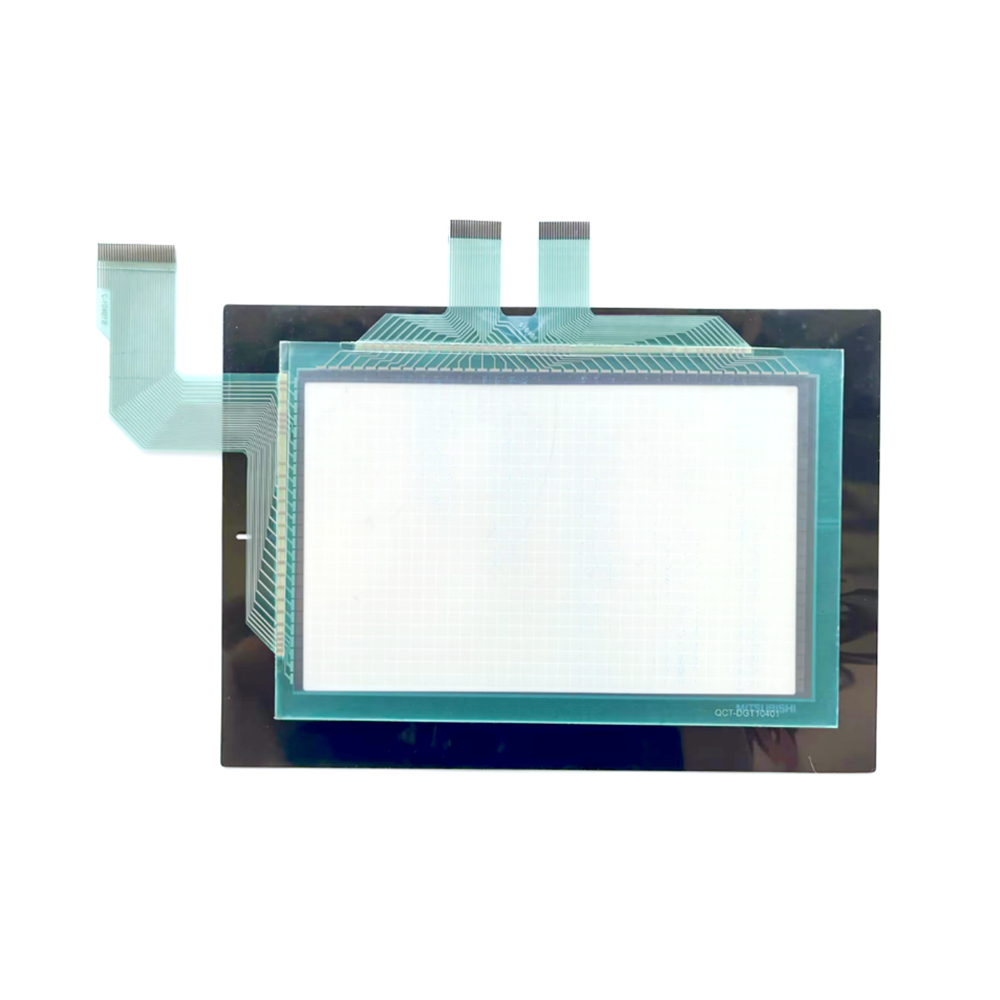

New Touch Screen A960GOT BKO-C10677H06
Resolution: 640 × 480 pixels (Note: Some sources indicate 600 × 400 for specific variants)
Screen Size: 9 inches (diagonal)
Electrical Specifications
Power Supply Voltage:
A960GOT-EBA: 100-240V AC
A960GOT-EBD: 24V DC
Power Consumption: Typically 20W or less (not explicitly stated, standard for EL displays of this era)
Memory & Functionality
User Memory Capacity: 1 MB (Expandable up to 9 MB)
Recipe Function: Allows setting of initial values including machine operating conditions
Audio Output: Machine operating status can be reported by voice
Touch Screen Specifications
Number of Touch Keys: Up to 1000 programmable touch switches (25 rows × 40 columns)
Physical Specifications
External Dimensions (W×H×D): 268 mm × 192 mm × 49 mm
Panel Cut-out Dimensions (W×H): 258 mm (+1/0 mm) × 183 mm (+1/0 mm)
Bezel Width: 43 mm
Environmental & Standards
Front Protection Rating: Equivalent to IP65
Panel Inside Protection: IP2X
Certification: UL/cUL
Model Variants
Model Number Power Supply Hardware Version
A960GOT-EBA 100-240V AC Hardware version K (Dec. 2001 or later)
A960GOT-EBA-EU 100-240V AC (EU version) Hardware version K (Dec. 2001 or later)
A960GOT-EBD 24V DC Hardware version L (May 2001 or later)
Important Notes
Display Technology: The A960GOT uses EL (Electroluminescent) display technology, which provides high brightness and wide viewing angle but is monochrome (black and orange-yellow) . This differs from modern TFT color displays.
Compatibility: Compatible with Mitsubishi A985(-V)/A975/A970/A960GOT(-B) series PLC systems .
Resolution Discrepancy: Some sources indicate 640×480 resolution , while others mention 600×400 . The official specifications from the product page support 640×480.
Obsolete Product: This is a discontinued series (released around 2001). If you need replacements or repairs, you may need to look for third-party replacement touch panels or consider upgrading to a current GOT series (such as GOT2000). A third-party supplier offers replacement touch sensors for this model with the following specifications: 10.4" replacement (Note: original is 9"), outline dimensions 226mm×183.2mm, circuit rating DC5V 1mA .
