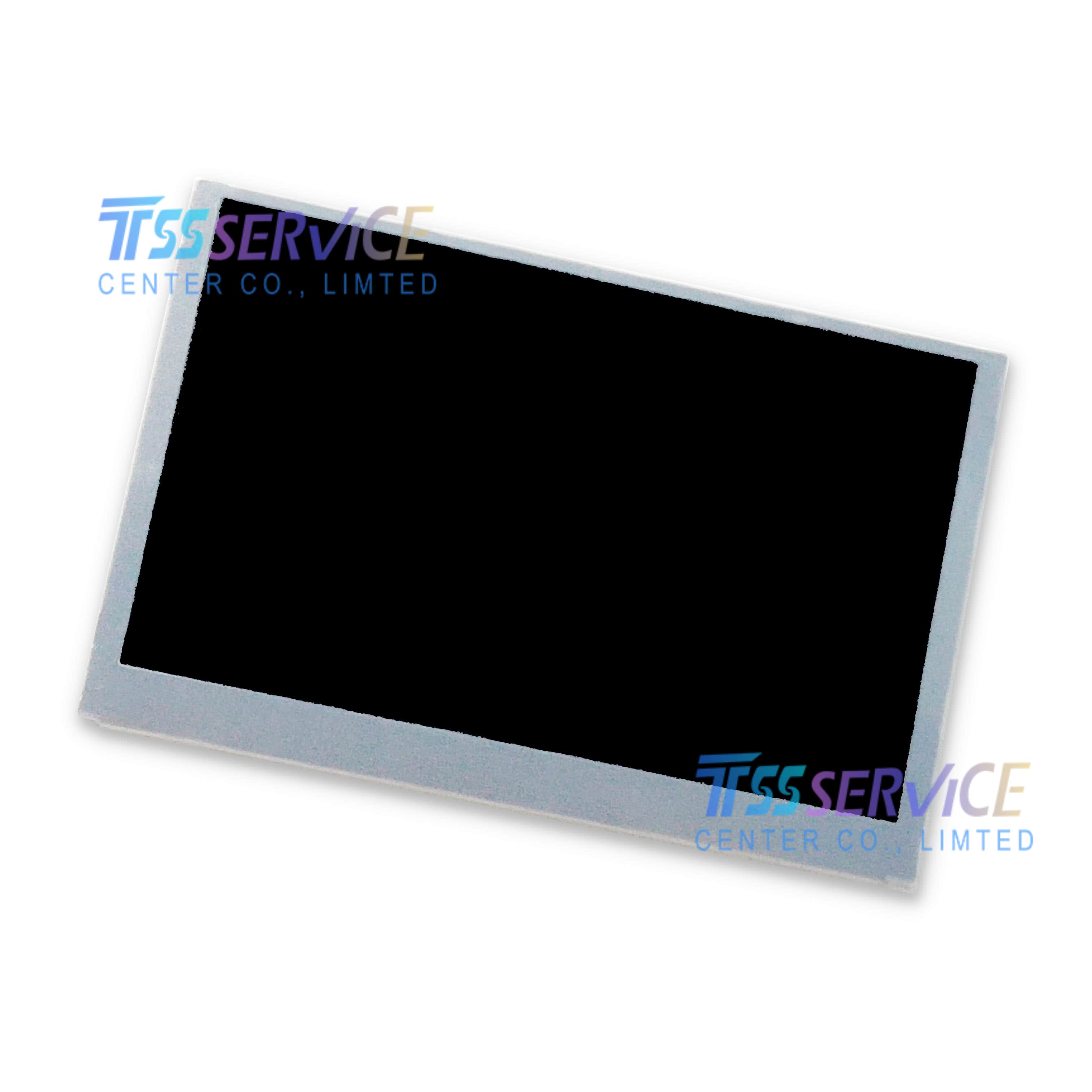

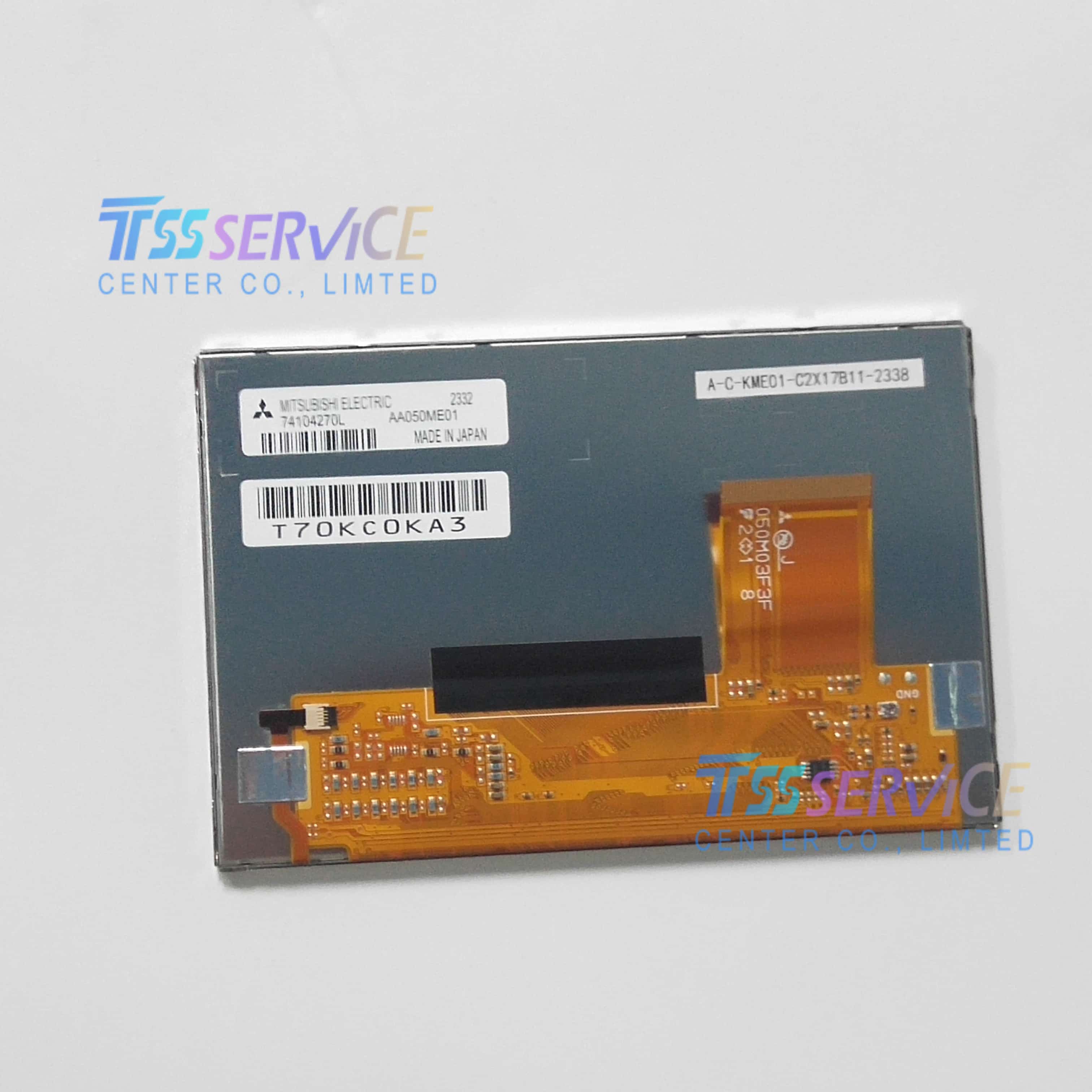

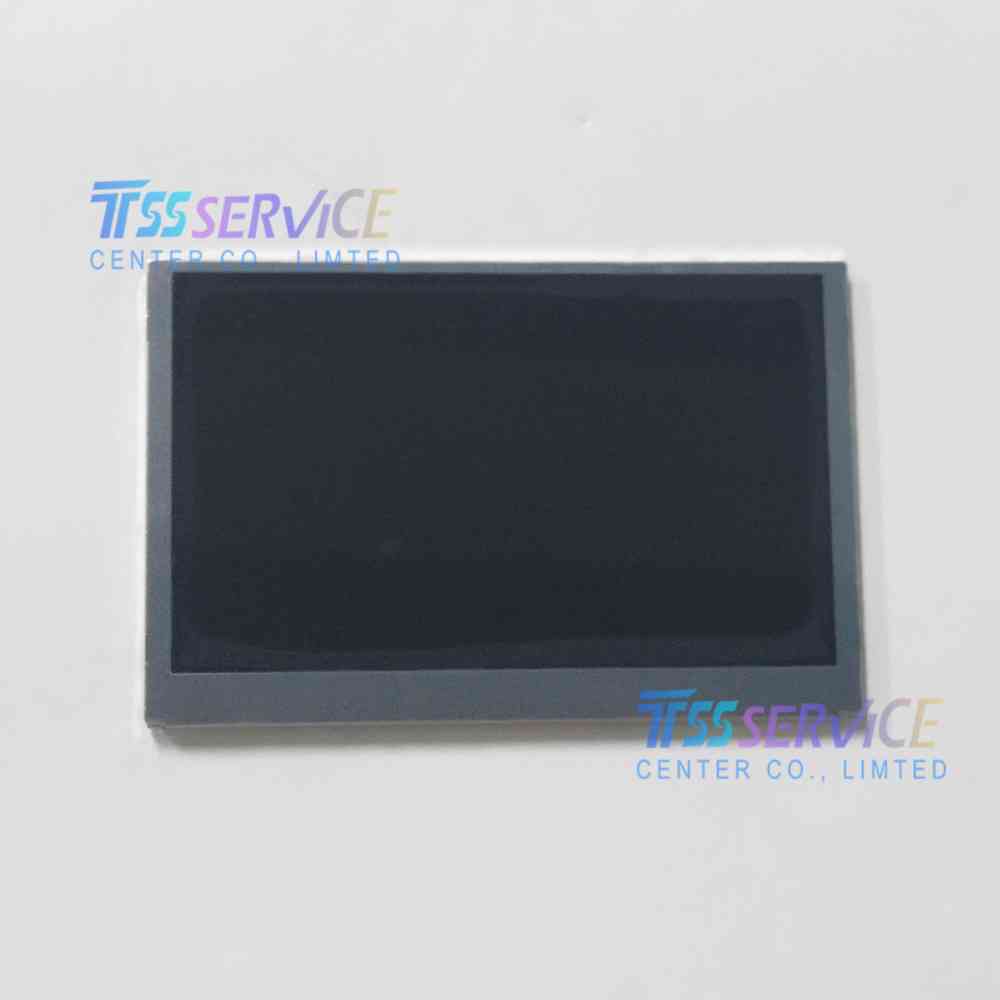

The AA050ME01 is a 5.0-inch diagonal a-Si TFT-LCD module manufactured by Mitsubishi Electric Corporation. This industrial-grade display features WVGA resolution (800×480) with a widescreen 15:9 aspect ratio, offering a compact yet high-resolution solution for industrial applications requiring clear and detailed visuals.
| Parameter | Specification |
|---|---|
| Manufacturer | Mitsubishi |
| Model No. | AA050ME01 |
| Screen Size | 5.0 inch |
| Screen Type | a-Si TFT-LCD, LCM |
| Number of Dots | 800(RGB)×480, WVGA, 15:9 |
| Dot Layout | RGB Vertical Stripe |
| Active Area | 108(W)×64.8(H) mm |
| Outline Area | 118.5(W)×77.8(H)×5.4(D) mm |
| Weight | 70.0g (Typ.) |
| Surface Feature | Clear, Hard coating (2H) |
| Luminance | 420 cd/m² (Typ.) |
| Contrast Ratio | 450:1 (Typ.) (TM) |
| Viewing Angle | 65/65/65/45 (Typ.) (CR≥10) |
| Display Type | TN, Normally White, Transmissive |
| Good View at | 12 o'clock |
| Response Time | 5/20 (Typ.) (Tr/Td) ms |
| Display Colors | 16.7M, 50% NTSC |
| Total Power | 1.14W (Typ.) |
| Backlight | 2 strings WLED, No Driver |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | CMOS (1 ch, 8-bit), 45 pins FPC |
| Voltage Supply | 3.3/5.0V (Typ.) (VCC/AVDD) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
The AA050ME01 is classified by Mitsubishi for "Standard Usage" and is suitable for:
| Application Area | Specific Use Cases |
|---|---|
| Industrial Automation | Factory HMIs, CNC machine controls, PLC programming terminals |
| Test & Measurement | Oscilloscopes, signal generators, data loggers, portable test equipment |
| Office Equipment | Printers, copiers, multifunction device control panels |
| Transportation | In-vehicle displays, railway control panels (non-critical operation) |
| Industrial Computing | Industrial panel PCs, embedded systems, thin clients |
