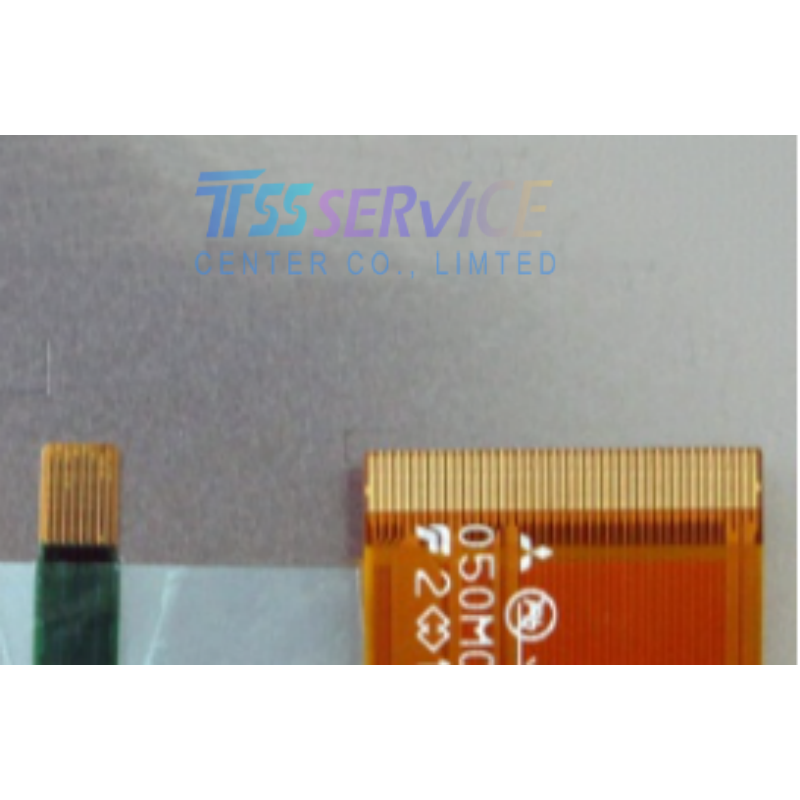

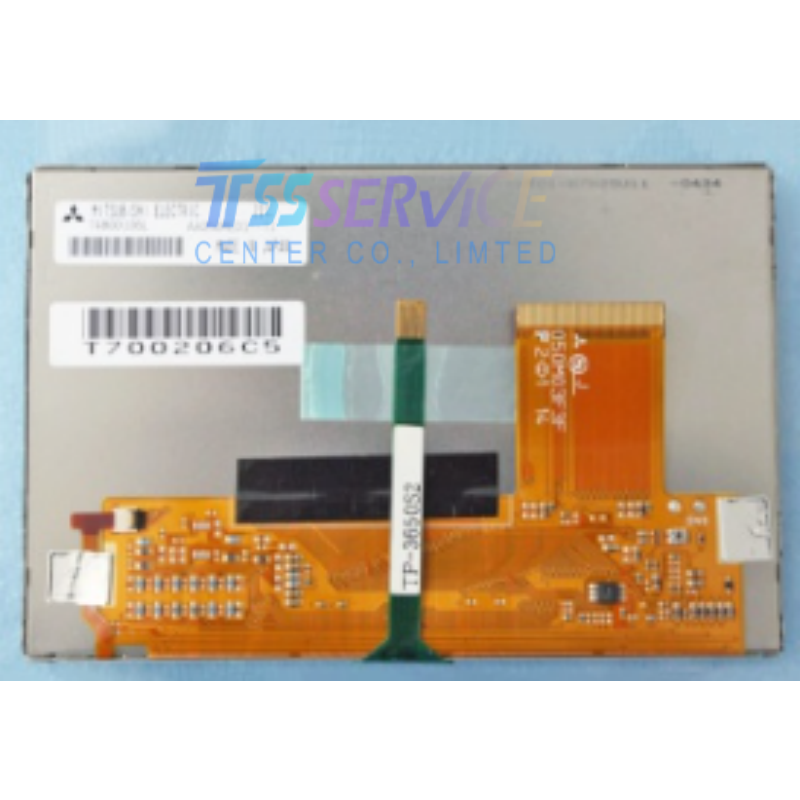

Mitsubishi NEW 5.0 inch LCD Display Panel AA050ME01-T1 for Industrial
| Parameter |
Specification |
Details / Notes |
| Brand |
Mitsubishi |
Original Manufacturer |
| Model Number |
AA050ME01-T1 |
Includes 4-wire Resistive Touch Panel |
| Screen Size |
5.0 Inch |
Diagonal Measurement |
| Resolution |
800(RGB) × 480 |
WVGA Format, 188 PPI |
| Display Mode |
TN, Normally White, Transmissive |
12 o'clock optimal viewing angle |
| Brightness |
350 cd/m² (Typ.) |
Suitable for indoor industrial use |
| Contrast Ratio |
450:1 (Typ.) |
Transmissive Mode |
| Viewing Angle |
65/65/65/45 (Typ.) |
Left / Right / Up / Down (CR≥10) |
| Response Time |
5 / 20 ms (Typ.) |
Tr / Td |
| Display Colors |
16.7 Million |
8-bit Color Depth, 50% NTSC |
| Touch Panel |
4-Wire Resistive |
Integrated |
| Backlight |
WLED |
2 Strings, Without Driver |
| Interface |
CMOS (1 ch, 8-bit) |
45 Pins FPC Connector |
| Supply Voltage |
3.3V / 5.0V (Typ.) |
VCC / AVDD |
| Operating Temp. |
-20°C ~ 70°C |
Wide Temperature Range |
| Storage Temp. |
-30°C ~ 80°C |
Extreme Temperature Tolerance |
| Surface Treatment |
Clear, Hard Coating (3H) |
Anti-scratch Protection |
| Dimensions (W×H×D) |
118.5 × 77.8 × 6.5 mm |
Outline Dimensions |
| Active Area |
108.0 × 64.8 mm |
Display Area |
| Weight |
89.0 g (Typ.) |
Lightweight Module |
- Industrial Automation & Control: Human-Machine Interfaces (HMI), PLC control panels, and CNC machine displays.
- Medical Equipment: Portable diagnostic devices, patient monitors, and laboratory instrumentation.
- Automotive & Transportation: In-vehicle displays, fleet management terminals, and marine navigation systems.
- Smart Metering & Instruments: Industrial testing equipment, power analyzers, and environmental monitoring devices.
- Commercial Terminals: POS systems, ticketing kiosks, and access control panels.
