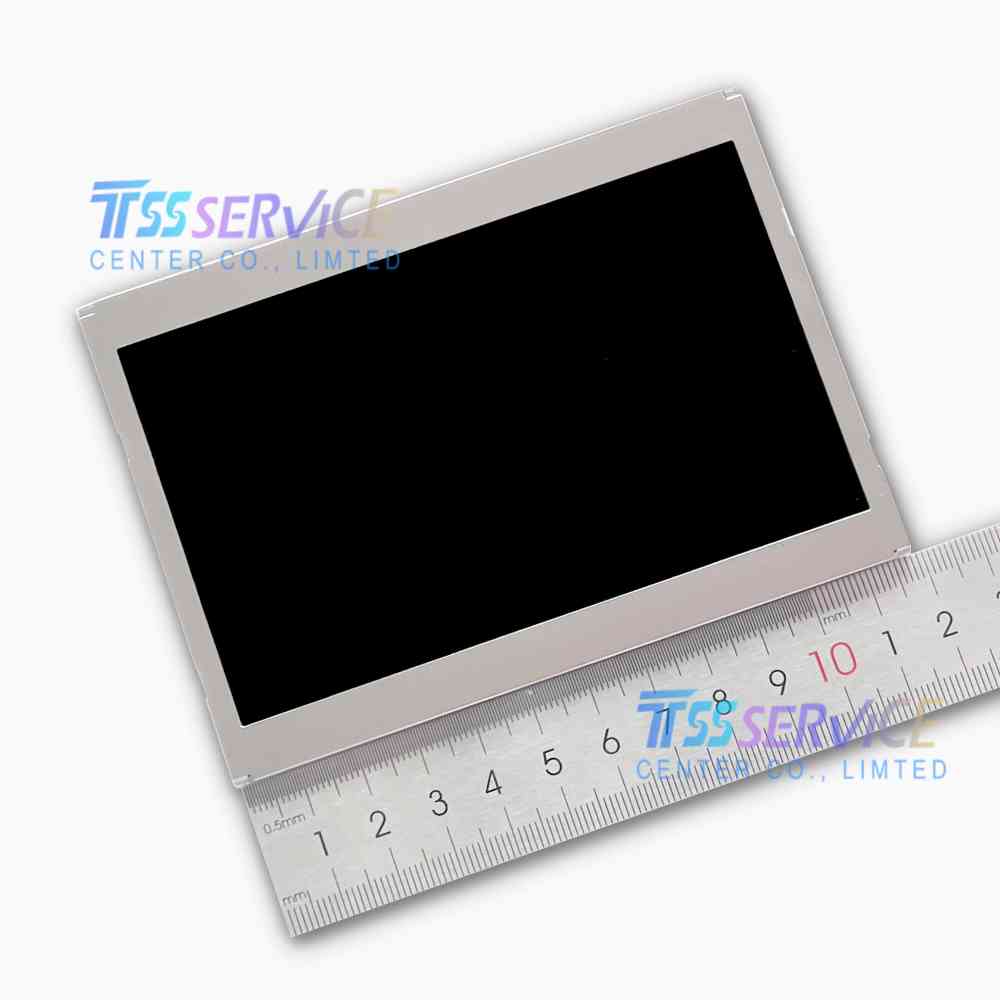

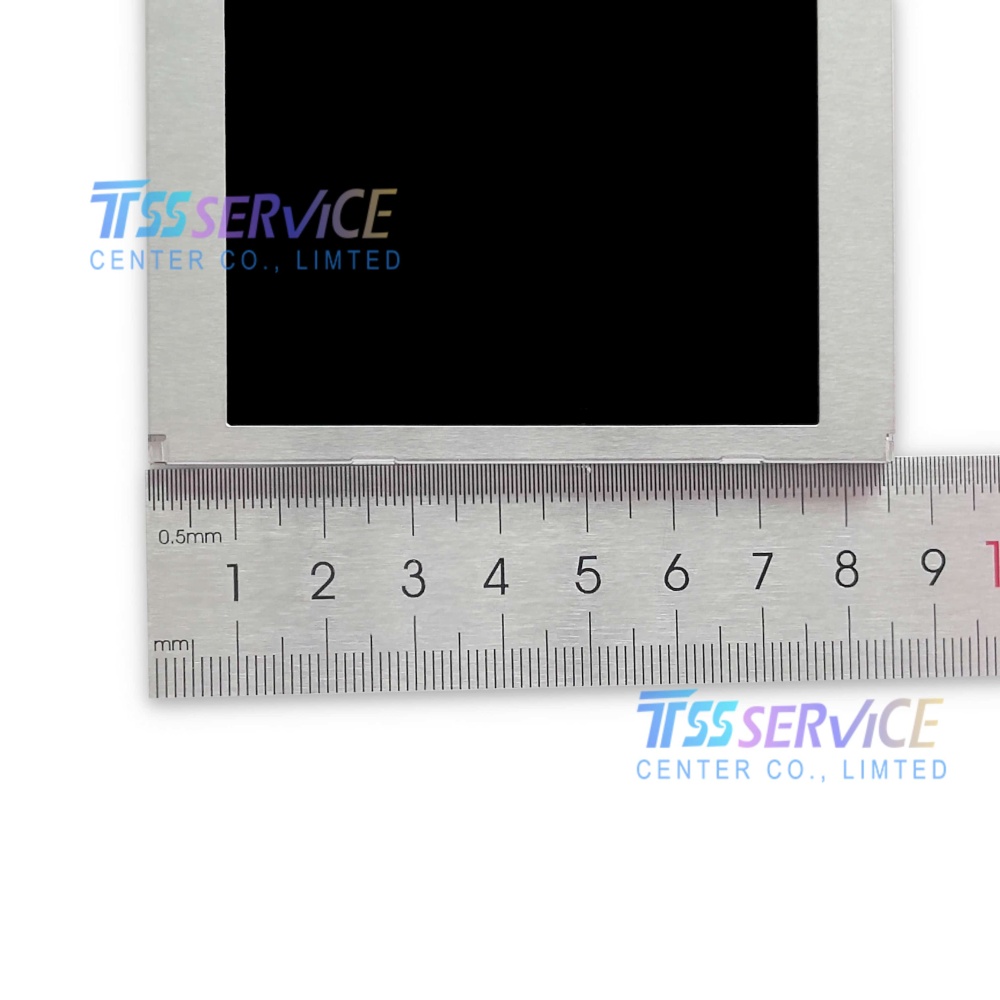

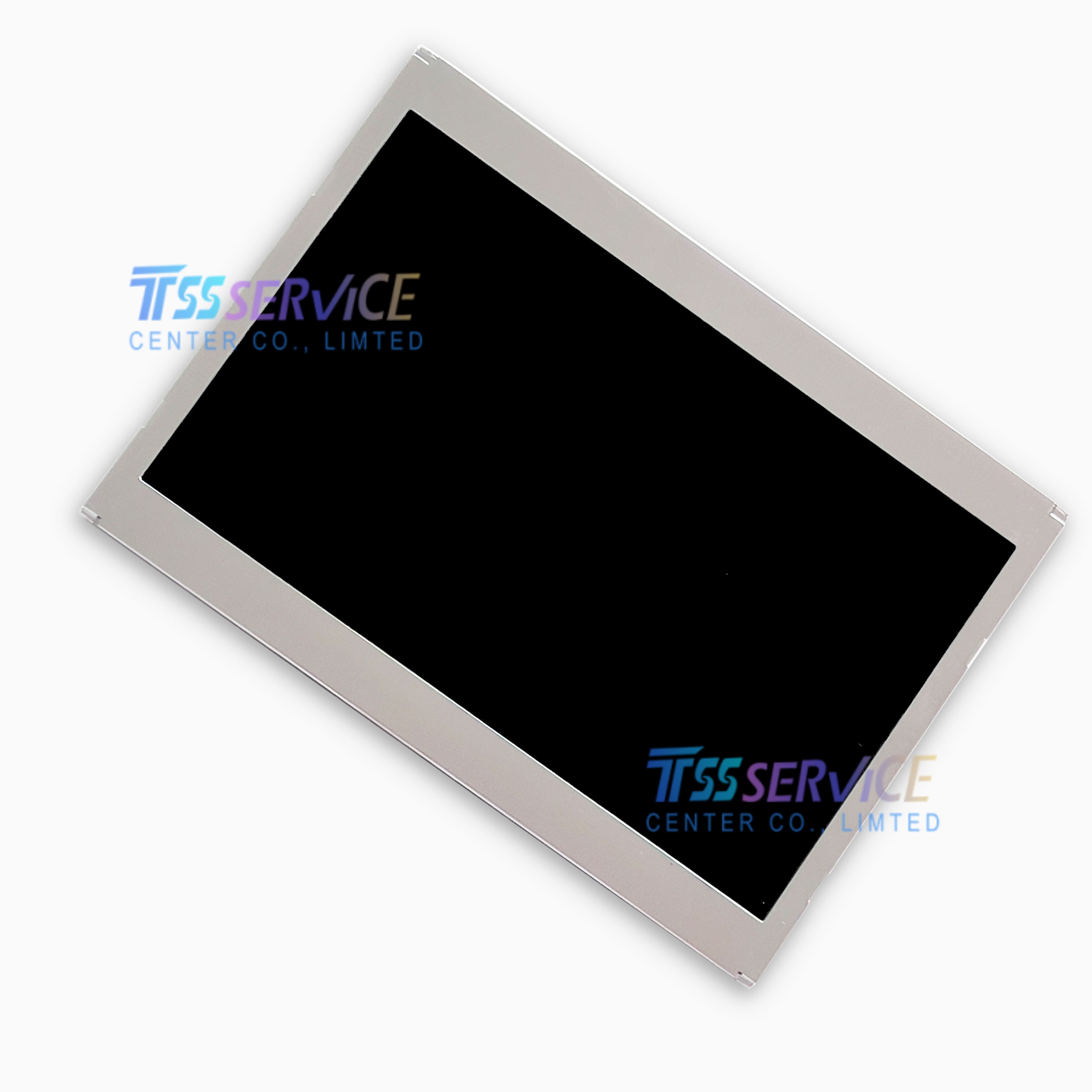

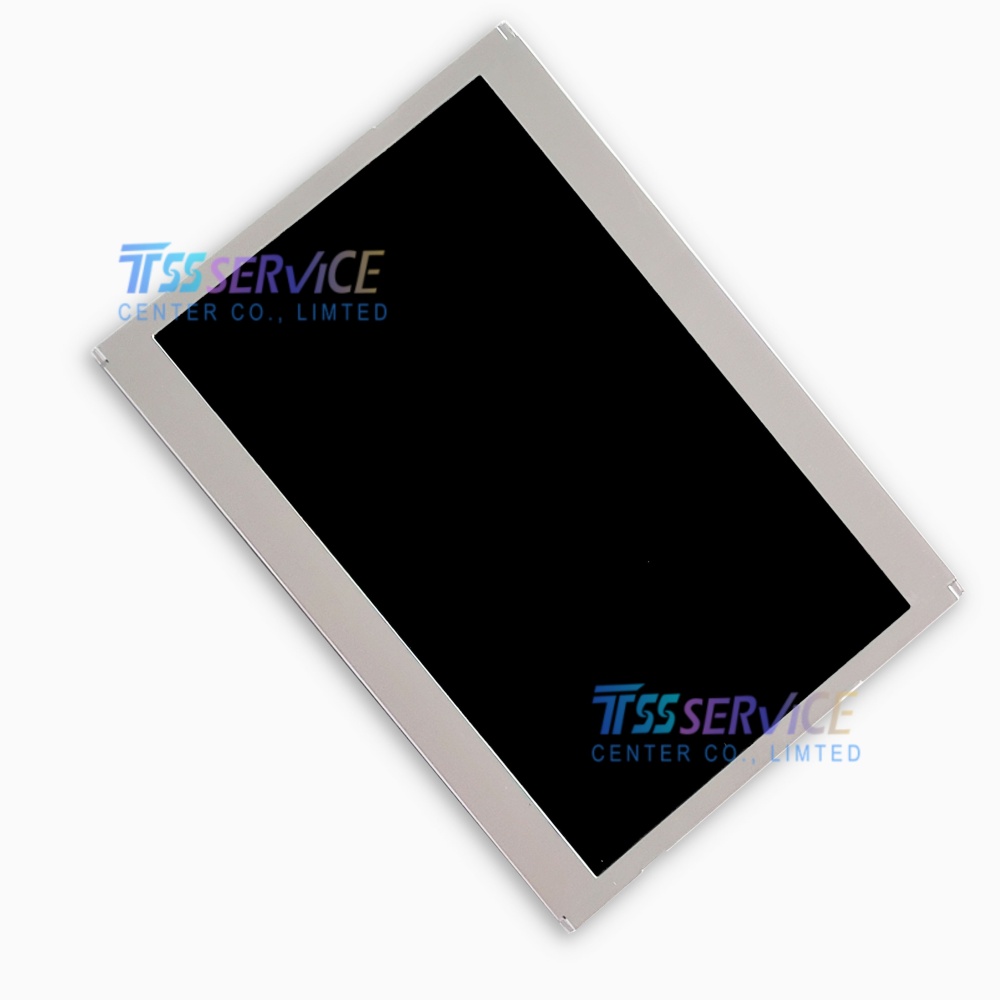

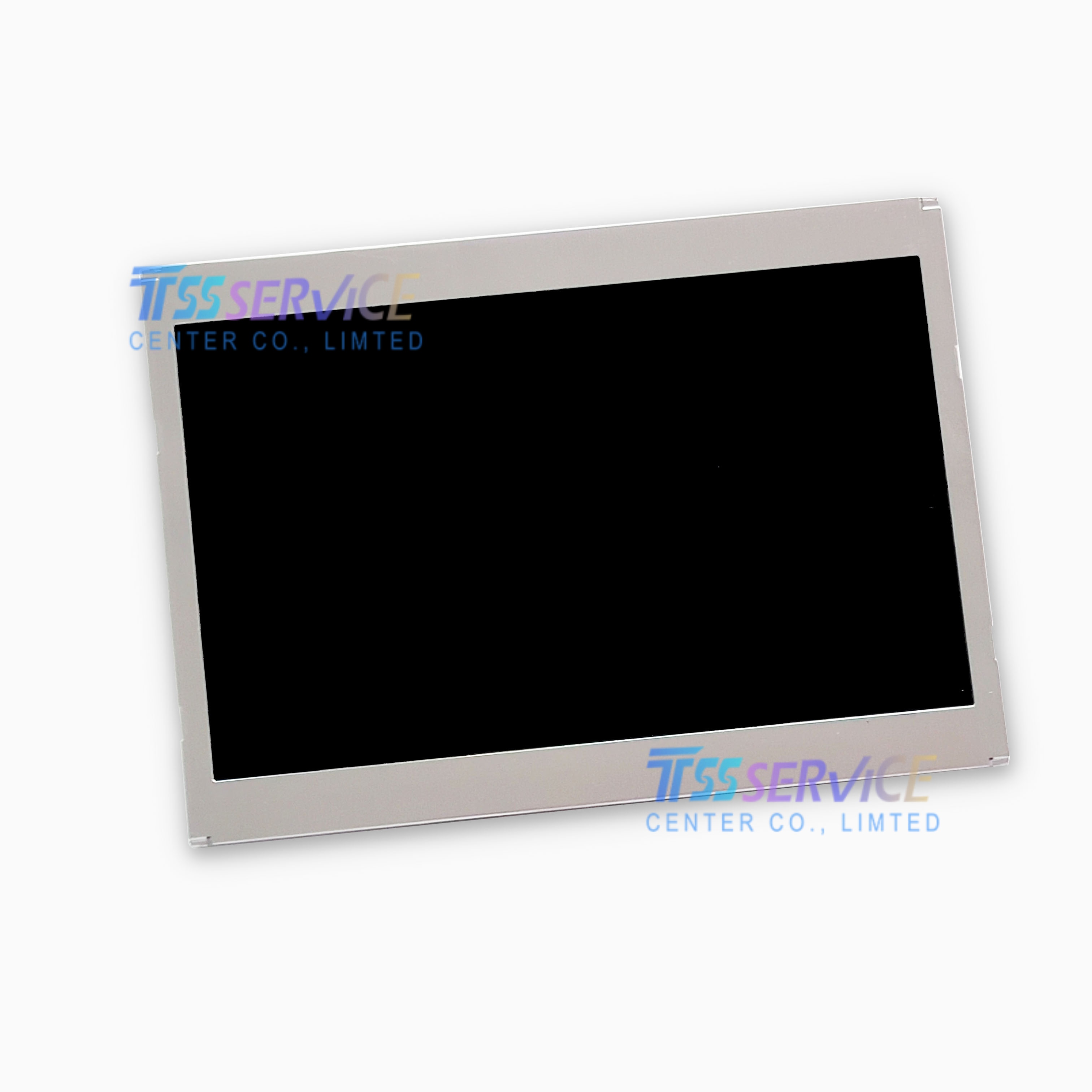

AA050MG04 5 Inch Mitsubishi 800×480 Industrial TFT LCD Screen Display Panel

SKU: AA050MG04
Model Number: AA050MG04
Brand: MITSUBISHI
Diagonal Size: 5.0 Inch Landscape
Native Resolution: 800(RGB) × 480 WVGA, 15:9 Aspect Ratio, 188 PPI
Panel Technology:  a-Si TFT-LCD, Normally Black Transmissive
0.0 (0 Reviews)
0 Sold
$119.00 $110.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • AA050MG04 5 Inch Mitsubishi 800×480 Industrial TFT LCD Screen Display Panel
  • AA050MG04 5 Inch Mitsubishi 800×480 Industrial TFT LCD Screen Display Panel
  • AA050MG04 5 Inch Mitsubishi 800×480 Industrial TFT LCD Screen Display Panel
  • AA050MG04 5 Inch Mitsubishi 800×480 Industrial TFT LCD Screen Display Panel
  • AA050MG04 5 Inch Mitsubishi 800×480 Industrial TFT LCD Screen Display Panel
  • AA050MG04 5 Inch Mitsubishi 800×480 Industrial TFT LCD Screen Display Panel
  • AA050MG04 5 Inch Mitsubishi 800×480 Industrial TFT LCD Screen Display Panel
  • AA050MG04 5 Inch Mitsubishi 800×480 Industrial TFT LCD Screen Display Panel
  • AA050MG04 5 Inch Mitsubishi 800×480 Industrial TFT LCD Screen Display Panel
  • AA050MG04 5 Inch Mitsubishi 800×480 Industrial TFT LCD Screen Display Panel
1/1
  • AA050MG04 5 Inch Mitsubishi 800×480 Industrial TFT LCD Screen Display Panel
  • AA050MG04 5 Inch Mitsubishi 800×480 Industrial TFT LCD Screen Display Panel
  • AA050MG04 5 Inch Mitsubishi 800×480 Industrial TFT LCD Screen Display Panel
  • AA050MG04 5 Inch Mitsubishi 800×480 Industrial TFT LCD Screen Display Panel
  • AA050MG04 5 Inch Mitsubishi 800×480 Industrial TFT LCD Screen Display Panel
  • Description
AA050MG04 5 Inch Mitsubishi 800×480 Industrial TFT LCD Screen Display Panel
Item Specification Parameter
Model Number AA050MG04
Brand MITSUBISHI
Diagonal Size 5.0 Inch Landscape
Native Resolution 800(RGB) × 480 WVGA, 15:9 Aspect Ratio, 188 PPI
Panel Technology a-Si TFT-LCD, Normally Black Transmissive
Dot Layout RGB Vertical Stripe Pixel Arrangement
Backlight 4 Strings Built-in WLED, No On-board LED Driver IC
Typical Brightness 900 cd/m² Ultra High Brightness (Sunlight Readable)
Typical Contrast Ratio 1000:1 (TM Transmission Mode)
Viewing Angle L/R/U/D (CR≥10) 85° / 85° / 85° / 85° Full Symmetric Ultra Wide View
View Direction Full Symmetric All-Angle Display
Typical Response Time Tr/Td 12ms / 12ms
Refresh Frequency 60Hz Standard Industrial Rate
Color Performance 16.7M True Colors (8-bit RGB), 50% NTSC Gamut
Signal Interface Single Channel CMOS TTL 8-bit, 45Pin FPC Connector
Typical Input Logic Voltage 3.3V
Max Power Consumption 1.90W
Active Display Area 108.0 (W) × 64.8 (H) mm
Overall Outline Dimension 118.5 (W) × 84.7 (H) × 5.2 (T) mm
Net Weight 80g Ultra Lightweight
Surface Treatment Matte Anti-Glare, 2H Hard Anti-Scratch, Anti-Reflection Coating
Touch Function Without Touch Digitizer
Operating Temperature -30℃ ~ +80℃ Ultra Wide Industrial Temp Range
Storage Temperature -30℃ ~ +80℃

Applications

  1. Outdoor Portable Handheld Industrial HMI & Field Terminals
    Construction site field inspection data collectors, outdoor portable PLC debugging controllers, agricultural field monitoring handheld terminals, mining portable parameter display equipment, battery-powered outdoor industrial detectors.
  2. Portable Field Emergency Medical Diagnostic Equipment
    Ambulance auxiliary vital sign monitors, outdoor emergency ECG analyzers, mobile veterinary inspection handheld instruments, field clinical testing portable display panels, portable infusion control terminals.
  3. Portable Precision Field Test & Measuring Instruments
    Outdoor environmental gas leak detection analyzers, handheld power quality field testers, underground pipeline inspection monitors, optical field measuring equipment, portable industrial environmental data loggers.
  4. Construction & Agricultural Machinery On-board Displays
    Excavator cabin sunlight-readable dashboards, tractor control monitoring screens, forklift high-bright operation terminals, engineering vehicle outdoor parameter display modules, agricultural spraying machine control panels.
  5. Outdoor Self-service & Compact Special Industrial Devices
    Outdoor new energy charging pile data display screens, roadside portable inspection kiosks, outdoor industrial vending machine control modules, marine miniature sunlight-readable instrument monitors, factory outdoor safety centralized monitoring terminals.
