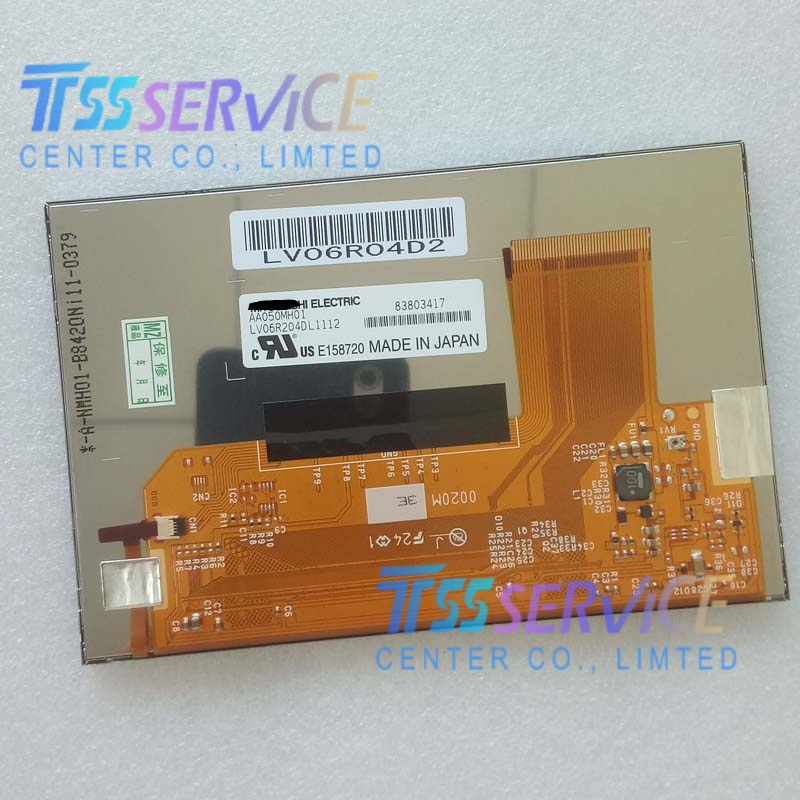

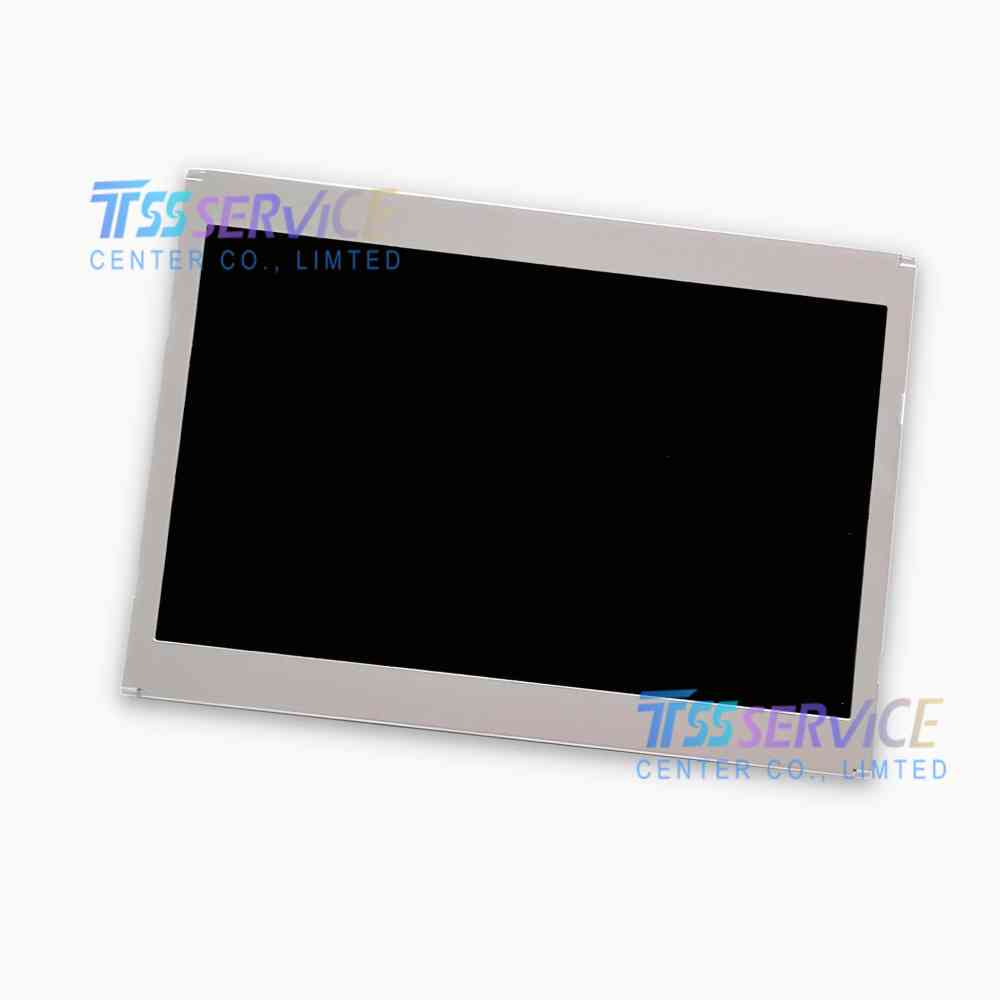

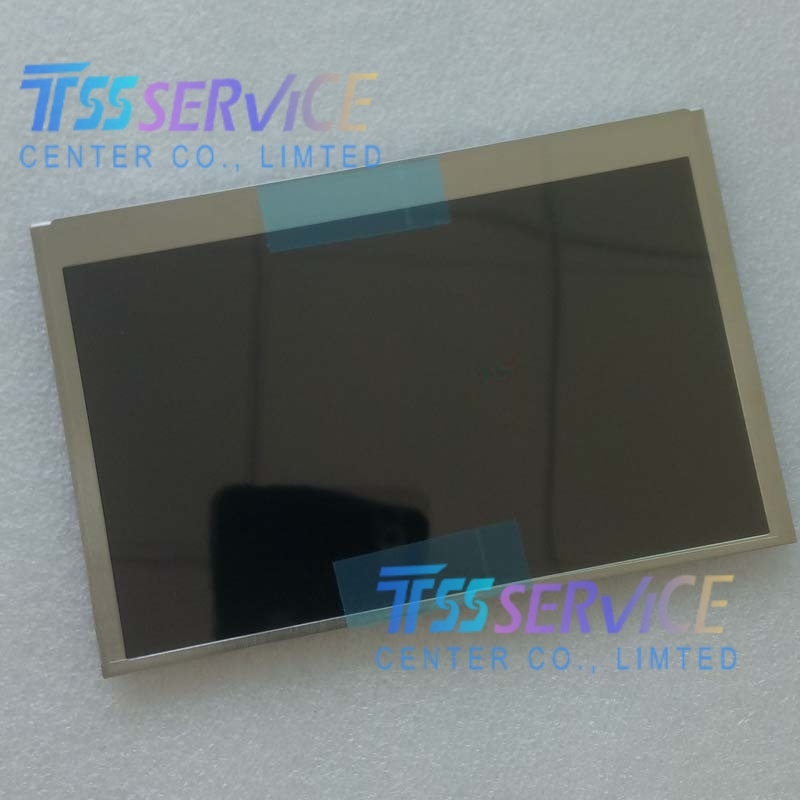

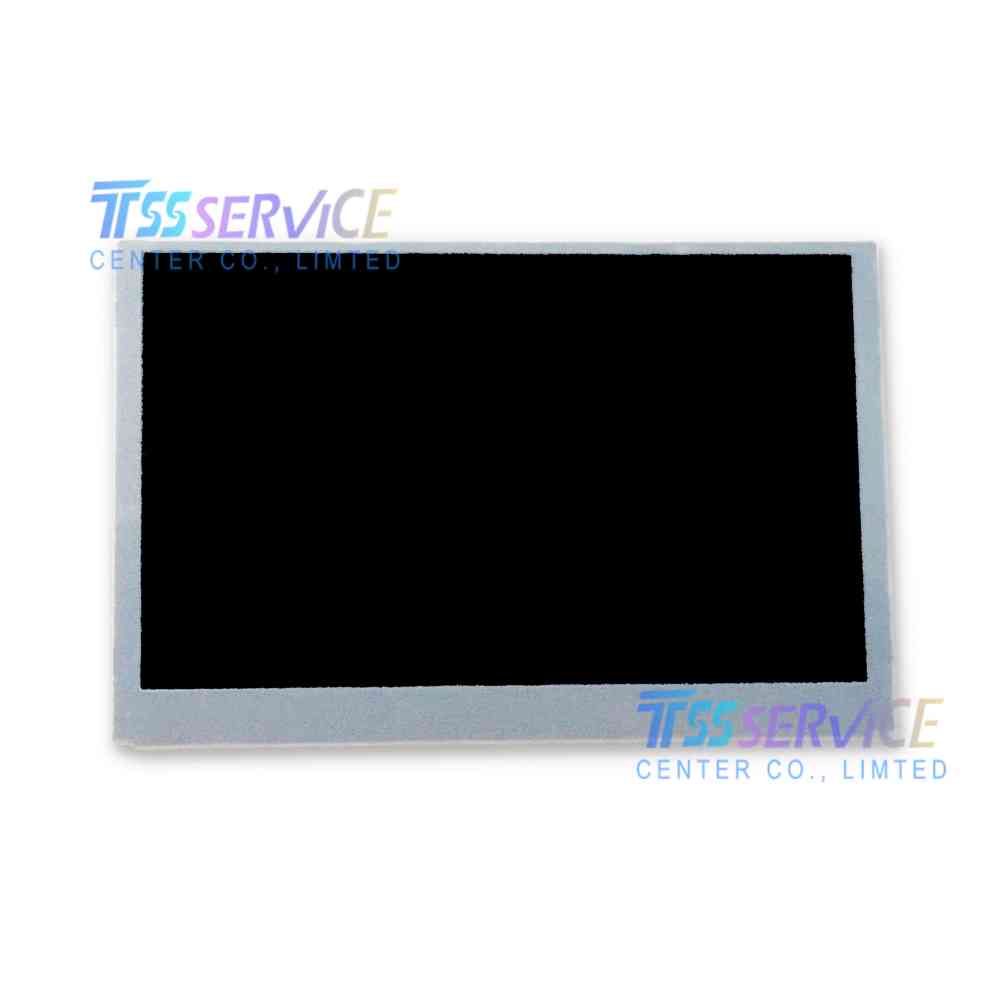

AA050MH01 Mitsubishi 5" WVGA TFT-LCD 800×480 Industrial Display Module

Name: AA050MH01 Mitsubishi 5" WVGA TFT-LCD 800×480 Industrial Display Module
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: AA050MH01
Price: 130 USD
Availability: InStock

SKU: AA050MH01

Model: AA050MH01
Brand: Mitsubishi
Screen Size: 5.0 inches
Panel Type: a-Si IPS TFT-LCD (Normally Black, Transmissive)
Resolution: 800 (RGB) × 480 (WVGA)

0.0 (0 Reviews)

0 Sold

~~$131.00~~ $130.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

AA050MH01 Mitsubishi 5" WVGA TFT-LCD 800×480 Industrial Display Module

Parameter	Details
Model	AA050MH01
Brand	Mitsubishi
Screen Size	5.0 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	800 (RGB) × 480 (WVGA)
Brightness	500 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.)
Viewing Angle	85/85/85/85 (CR≥10)
Color Depth	16.7M colors (8-bit, 50% NTSC)
Backlight	WLED (2 strings, no driver), 50,000 hours
Interface	CMOS (1 ch, 8-bit), 45 pins FPC
Operating Voltage	3.3V (Typ.)
Operating Temperature	-30°C ~ +80°C
Storage Temperature	-30°C ~ +80°C
Display Area	108 × 64.8 mm
Outline Dimension	118.5 × 77.8 × 5.7 mm
Panel Weight	76g (Typ.)
Surface Treatment	Clear, Hard coating (2H)
Compliance	RoHS
Status	EOL (Last shipment Jun 2022)

Applications

Industrial HMI & Control: PLC, industrial touch panels, factory automation, CNC machinery, and industrial controllers.
Outdoor & Harsh Environment: Outdoor kiosks, solar-powered devices, and equipment exposed to extreme temperatures.
Medical Equipment: Patient monitors, diagnostic devices, and portable medical instruments requiring wide-temperature stability.
Logistics & Handheld Devices: Warehouse scanners, mobile data terminals, and delivery devices.
Transportation & Automotive: In-vehicle displays, railway control panels, and marine navigation terminals.
