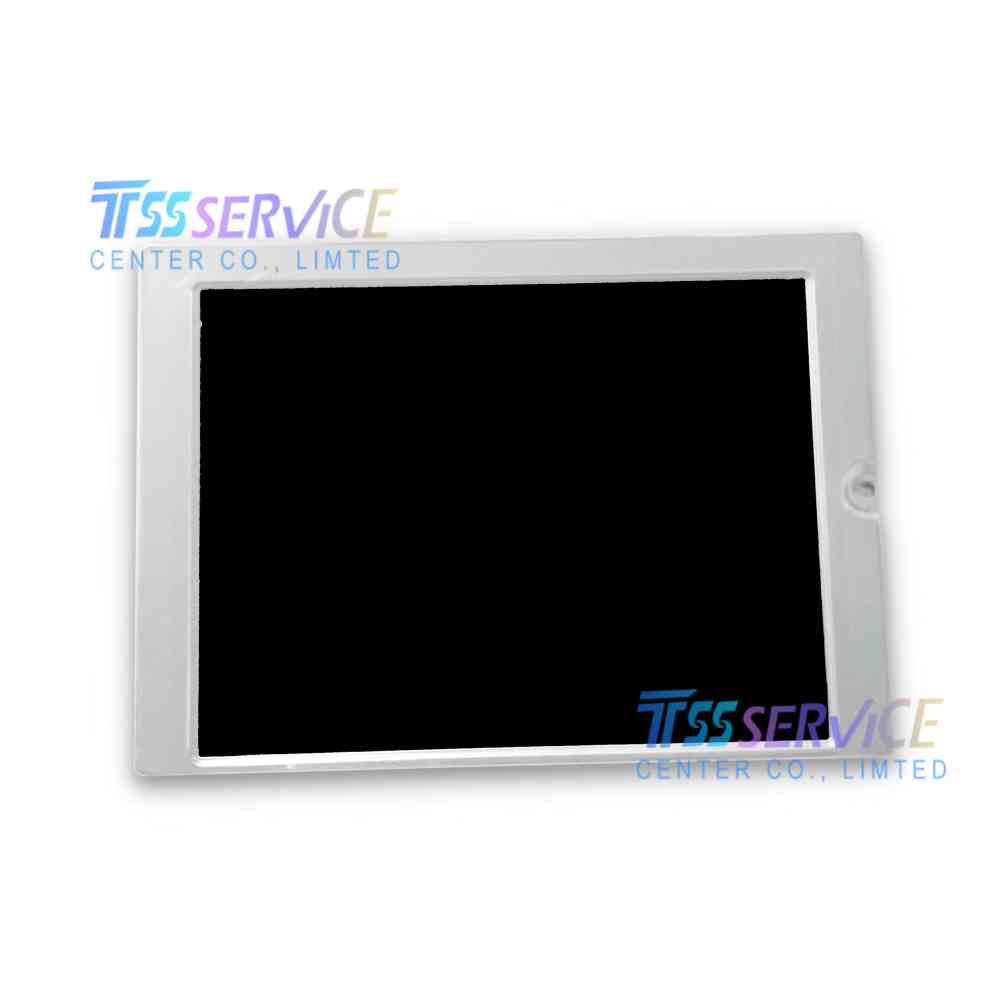

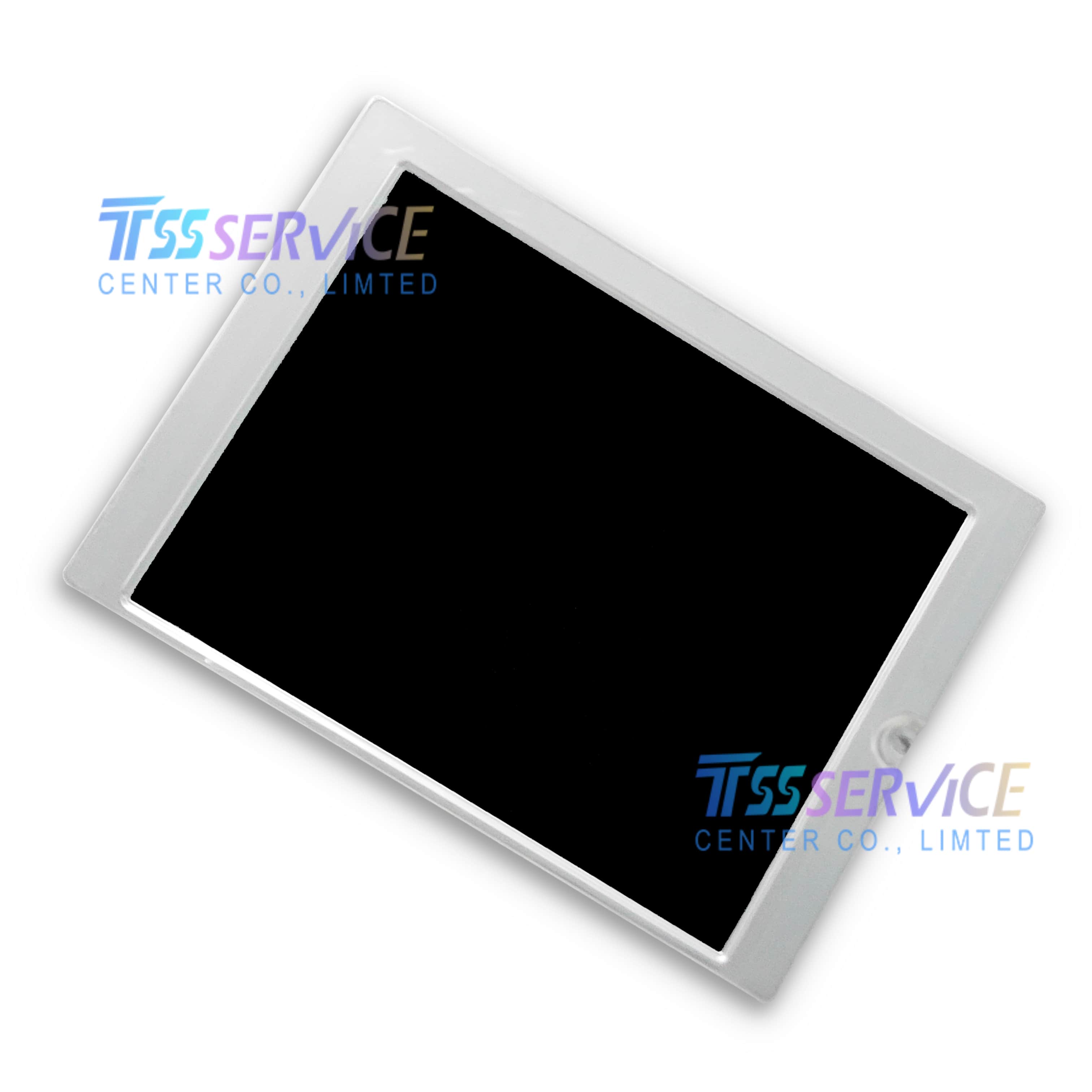

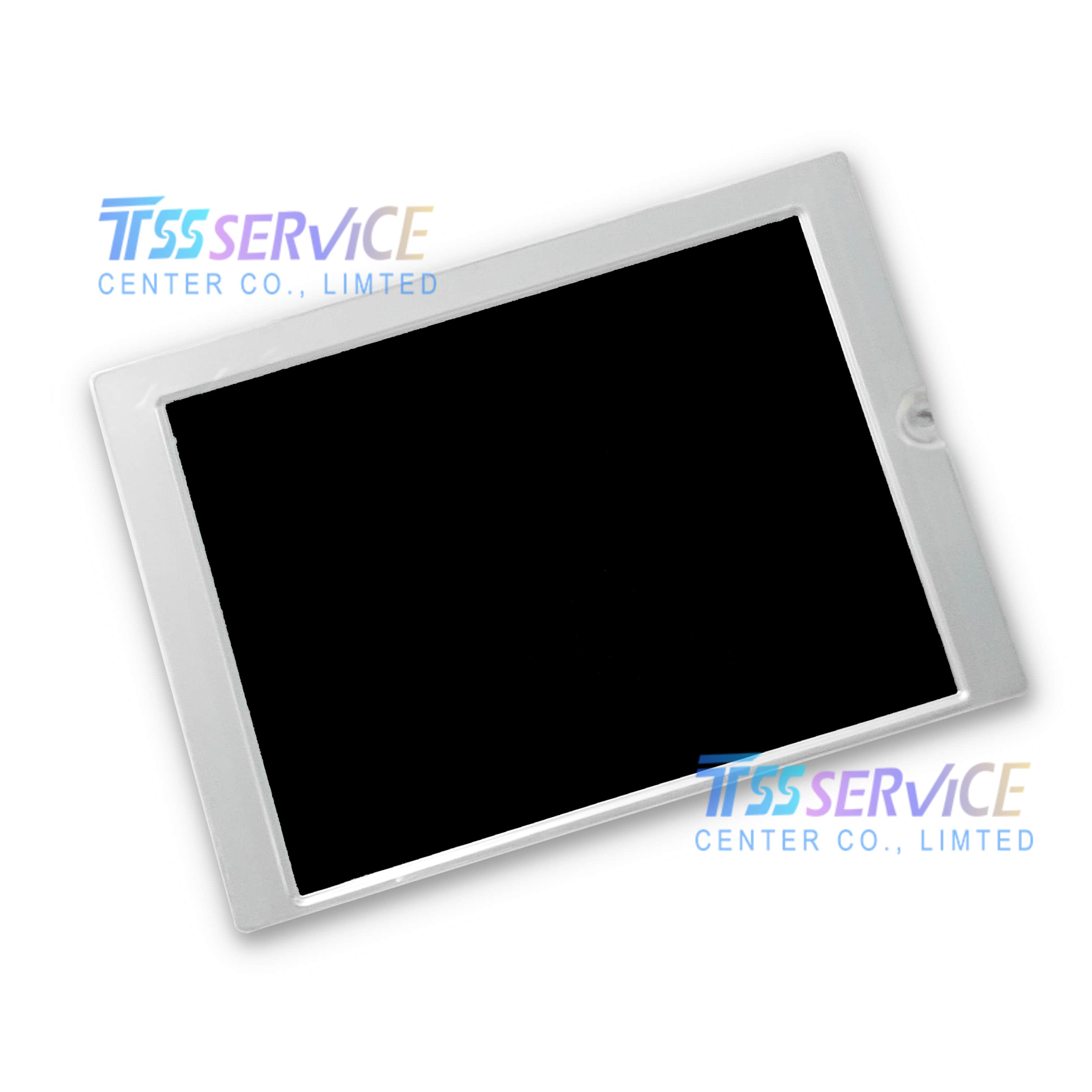

AA057QB03 Mitsubishi 5.7 Inch 320×240 Industrial TFT LCD Panel for Industrial

Name: AA057QB03 Mitsubishi 5.7 Inch 320×240 Industrial TFT LCD Panel for Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: AA057QB03
Price: 104 USD
Availability: InStock

SKU: AA057QB03

Model Number: AA057QB03
Brand: Mitsubishi
Diagonal Size: 5.7 inch
Native Resolution: 320(RGB) × 240, QVGA 4:3
Display Technology: a-Si TFT-LCD

0.0 (0 Reviews)

0 Sold

~~$106.00~~ $104.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

AA057QB03 Mitsubishi 5.7 Inch 320×240 Industrial TFT LCD Panel for Industrial

Item	Detailed Parameter
Model Number	AA057QB03
Brand	Mitsubishi Electric
Diagonal Size	5.7 inch
Native Resolution	320(RGB) × 240, QVGA 4:3
Display Technology	a-Si TFT-LCD, TN Mode, Normally White, Transmissive
Active Display Area	115.2 (W) × 86.4 (H) mm
Overall Outline Dimension	144 × 104.8 × 13.5 mm
Bezel Area	119.8 × 91.0 mm
Typical Brightness	400 cd/m²
Contrast Ratio	450:1 (Typical)
Display Color Depth	262K Colors, 51% NTSC Gamut
Viewing Angle (CR≥10)	L/R/U/D: 60° / 60° / 60° / 40°; Optimal viewing at 12 o'clock
Response Time	Tr 10ms / Td 25ms (Typ.)
Backlight Type	Single CCFL Lamp, 50,000hrs Lifespan (No built-in driver)
Surface Treatment	Clear hard coating (3H anti-scratch)
Signal Interface	Single channel 6-bit CMOS, 33Pin FPC Connector
Supply Voltage	3.3V (Typical)
Refresh Rate	60Hz
Net Weight	220g
Touch Option	LCD only, no integrated touch glass
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
