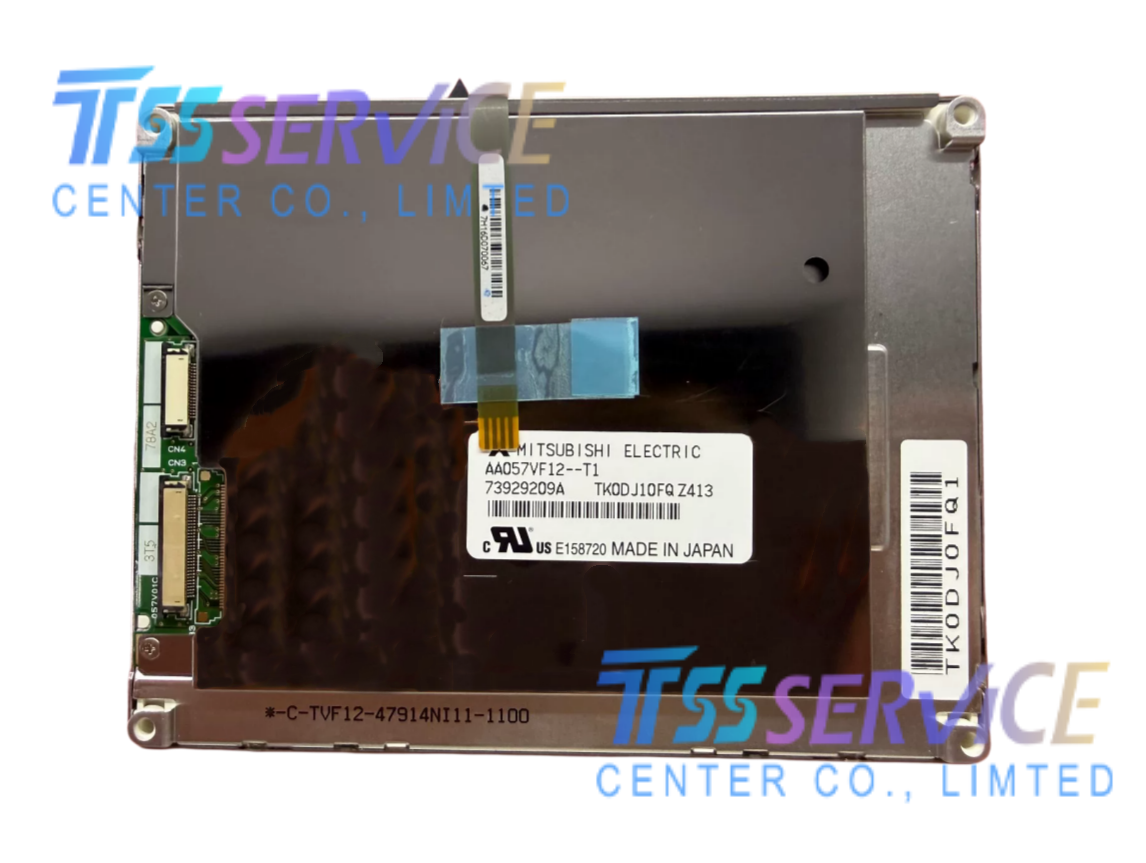

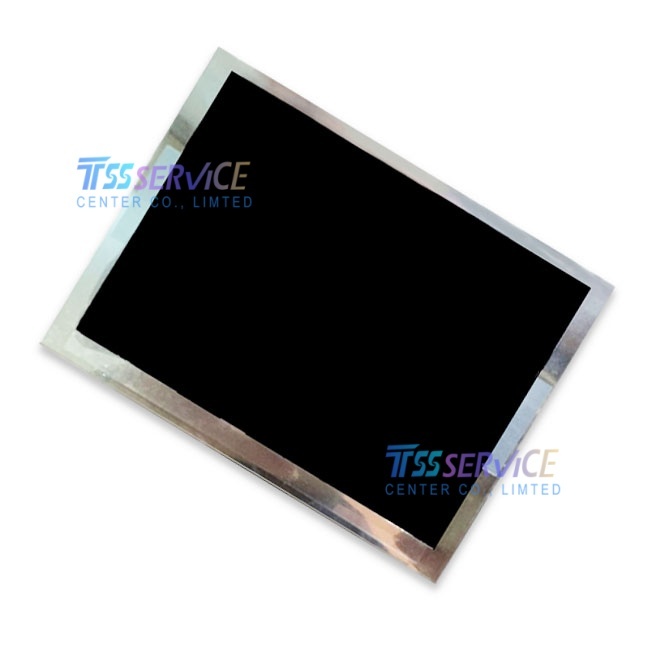

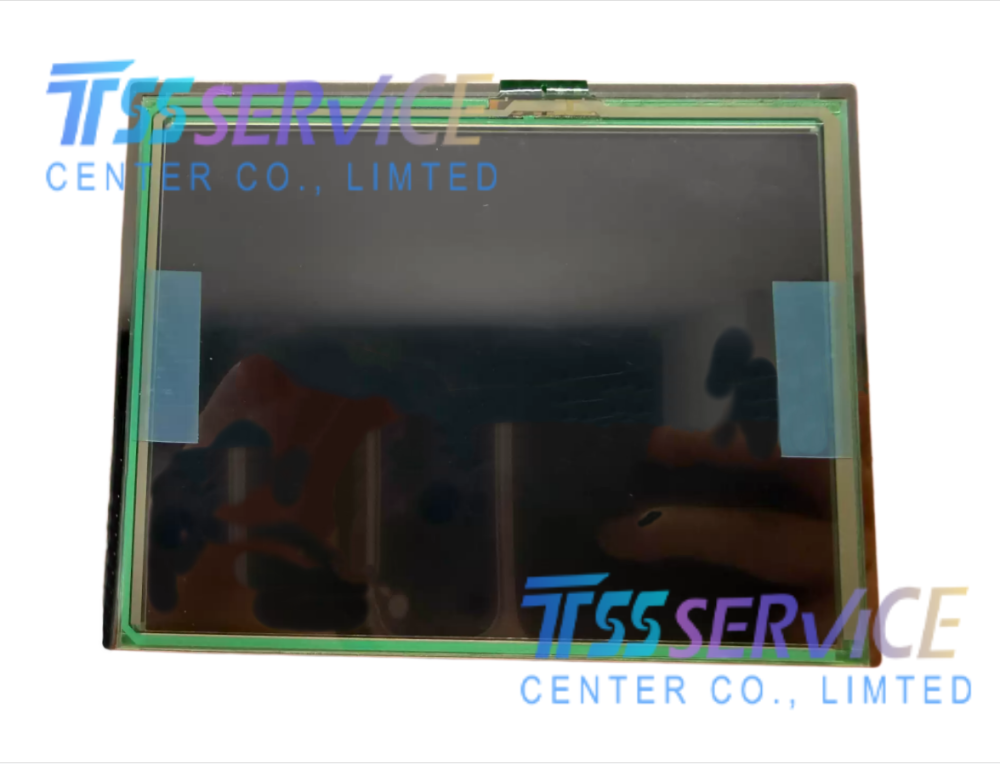

AA057VF12-T1 Mitsubishi 5.7 inch 640×480 Industrial TFT LCD Display Screen
| Spec Item |
Detailed Parameter |
| Manufacturer |
Mitsubishi Electric |
| Model Number |
AA057VF12-T1 |
| Screen Size |
5.7 inch |
| Panel Type |
a-Si TFT-LCD LCM, TN, Normally White, Transmissive |
| Native Resolution |
640(RGB) × 480, VGA, 4:3 Aspect Ratio |
| Dot Layout |
RGB Vertical Stripe |
| Active Area (W×H) |
115.2 × 86.4 mm |
| Outline Dimension (W×H×D) |
135×104.6×10.9 mm (H×V×D) |
| Net Weight |
Approx 200 g |
| Typical Luminance |
880 cd/m² |
| Contrast Ratio |
570:1 (Typ.) |
| Viewing Angle (CR≥10) |
80/80/80/60 (Typ.)(CR≥10) |
| Response Time G to G |
5/20 (Typ.)(Tr/Td) |
| Display Color |
262K Colors, 6-bit RGB |
| Backlight |
WLED, 100K hrs, With LED Driver |
| Signal Interface |
CMOS (1 ch, 6-bit) , Connector 33 pins |
| Refresh Rate |
60Hz |
| Supply Voltage |
3.3V (Typ.) |
| Operating Temperature |
-20 ~ 70 ℃ Industrial Grade |
| Storage Temperature |
-30 ~ 70 ℃ |
| Surface Treatment |
Hard coating, anti-scratch |
Application
1. Industrial Automation & CNC Machinery
CNC machine operation control panels, injection molding machine HMI parameter screens, blow molding & die-casting machine terminals, textile printing equipment monitoring displays, packaging machine PLC control panels.
2. Medical Testing & Laboratory Equipment
Portable clinical diagnostic analyzers, ward bedside vital sign monitors, laboratory optical inspection instruments, compact medical testing parameter display units.
3. Factory Measuring & Detection Instruments
Electrical fault diagnostic testers, industrial gas environmental detectors, mechanical defect inspection equipment, logistics weighing control terminals.
4. Building & Safety Control Terminals
Fire alarm host color display screens, elevator operation control panels, central air-condition monitoring terminals, factory access control monitoring units.
5. Equipment Repair & Refurbishment
Original replacement spare screen for damaged Mitsubishi AA057VF series LCD modules, premium Japanese spare parts for discontinued automation machinery, second-hand industrial equipment renovation projects.
