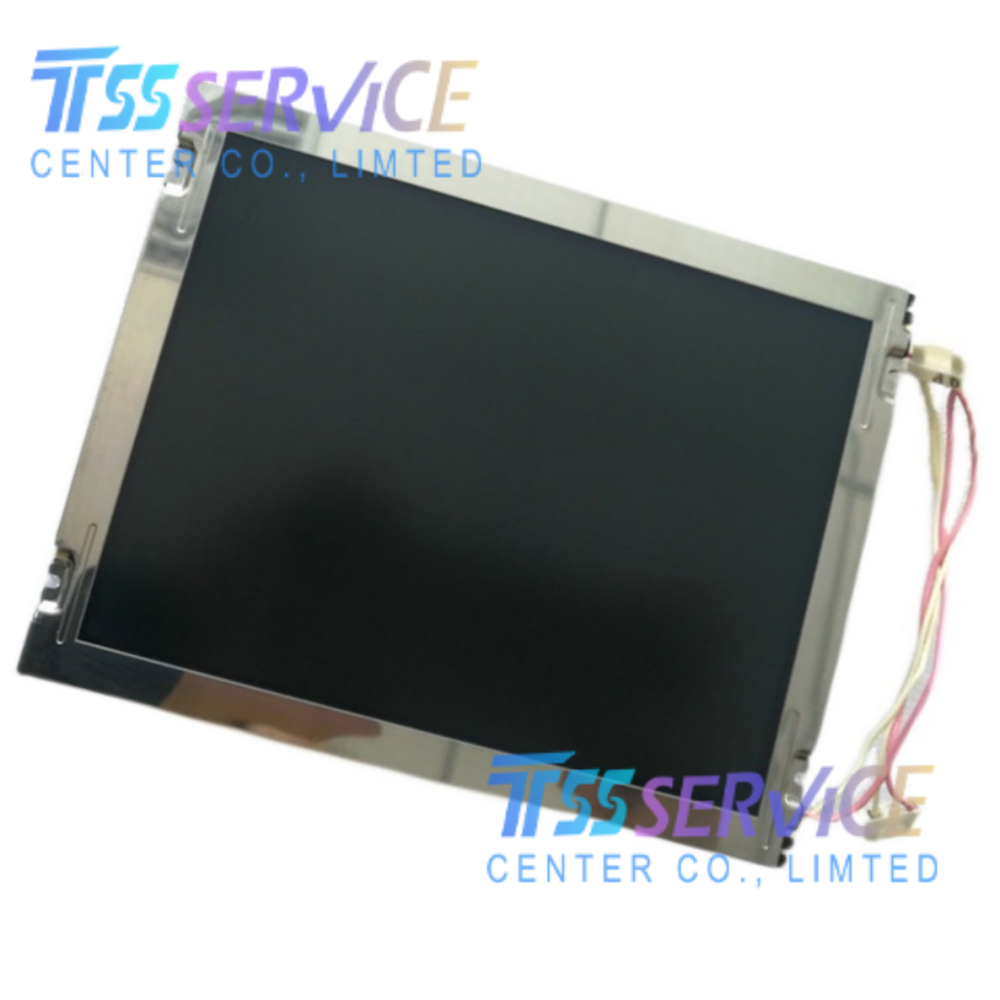

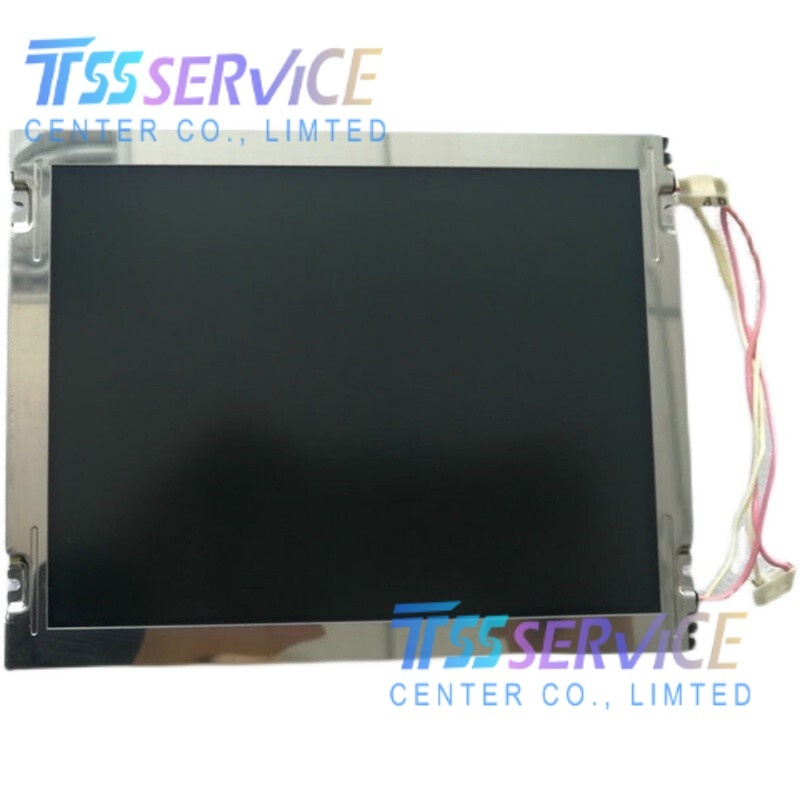

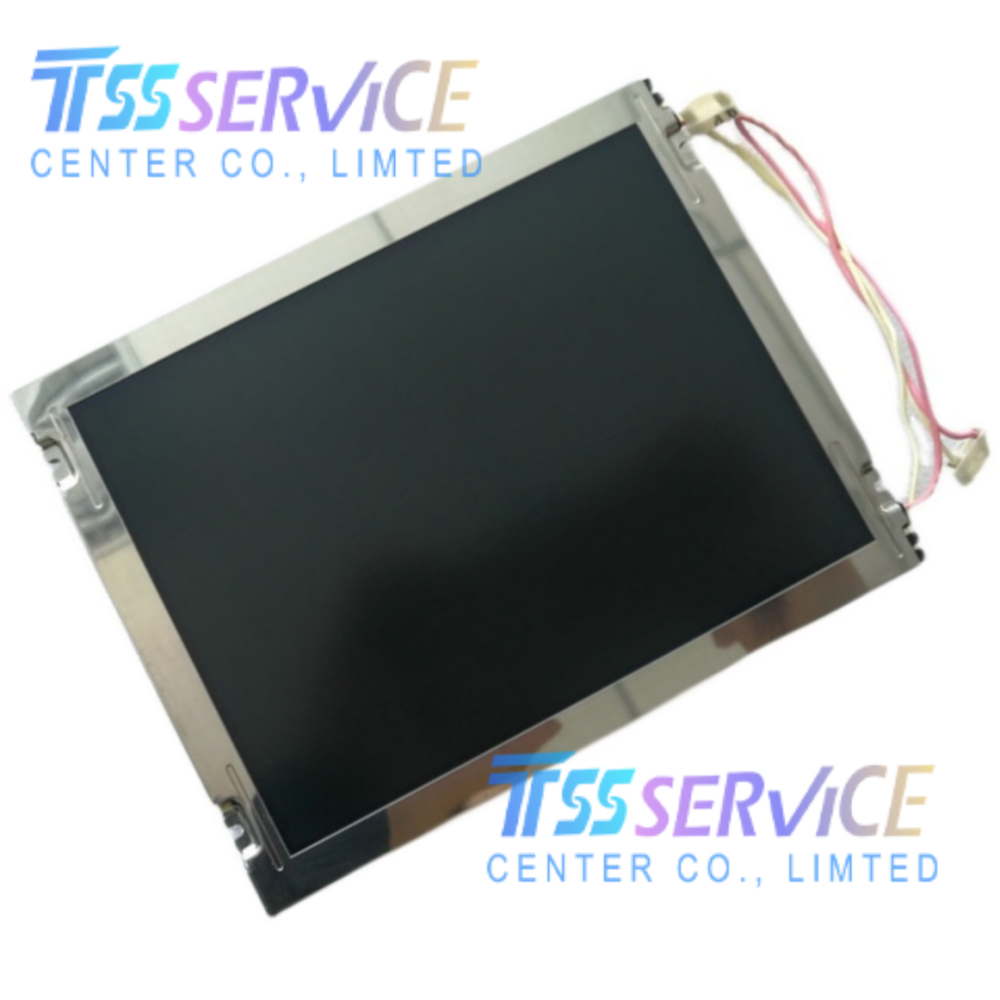

Mitsubishi 6.5 inch 640×480 LCD Panel AA065VB02 For Industrial

Name: Mitsubishi 6.5 inch 640×480 LCD Panel AA065VB02 For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: AA065VB02
Price: 145 USD
Availability: InStock

SKU: AA065VB02

Model: AA065VB02
Diagonal Size: 6.5 inch
Type: a-Si TFT-LCD, LCM
Pixel Number: 640(RGB)×480, 4:3, VGA
Pixel Structure: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$147.00~~ $145.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Mitsubishi 6.5 inch 640×480 LCD Panel AA065VB02 For Industrial

Parameter	Specification
Model	AA065VB02
Brand	Mitsubishi（Japan）
Size	6.5 inches
Display Type	a-Si TFT-LCD, Transmissive, Normally White
Resolution	640 × 480 pixels（VGA）, 122PPI
Active Area	132.48 × 99.36 mm
Outline Dimensions	154 × 121 × 12 mm
Brightness	600 cd/m²（typical）
Contrast Ratio	700:1（typical）
Viewing Angle（L/R/U/D）	70°/70°/50°/60°（CR≥10）
Colors	262K（6-bit RGB）
Backlight	CCFL（2 lamps）, 50,000 hrs lifespan
Interface	TTL（31 pins, 1 ch 6-bit）
Supply Voltage	3.3V / 5.0V（typical）
Response Time	6 ms（tr）/ 19 ms（td）
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-20°C ~ +80°C
Weight	205 g（typical）
Features	High brightness, industrial grade, wide temperature, matte hard coating（3H）

Typical Applications

Industrial Control & HMI：PLC panels, factory automation terminals, CNC machine tools, robotic control interfaces
Medical Equipment：Patient monitors, diagnostic devices, portable medical instruments, ultrasound machines
Test & Measurement：Oscilloscopes, data loggers, industrial meters, sensor display units
Marine & Outdoor：Marine navigation displays, outdoor monitoring systems, agricultural machinery
Specialty Industrial：Construction equipment, vehicle dashboards, ruggedized display systems
