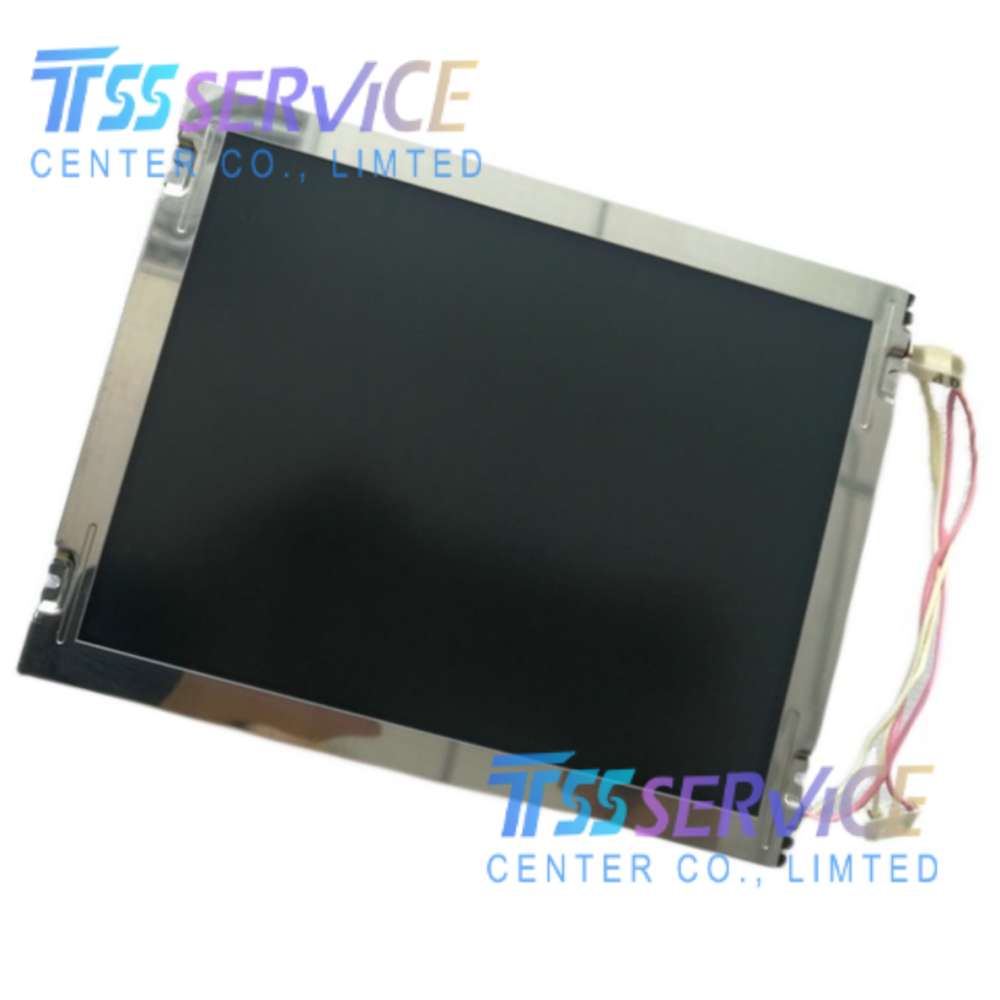

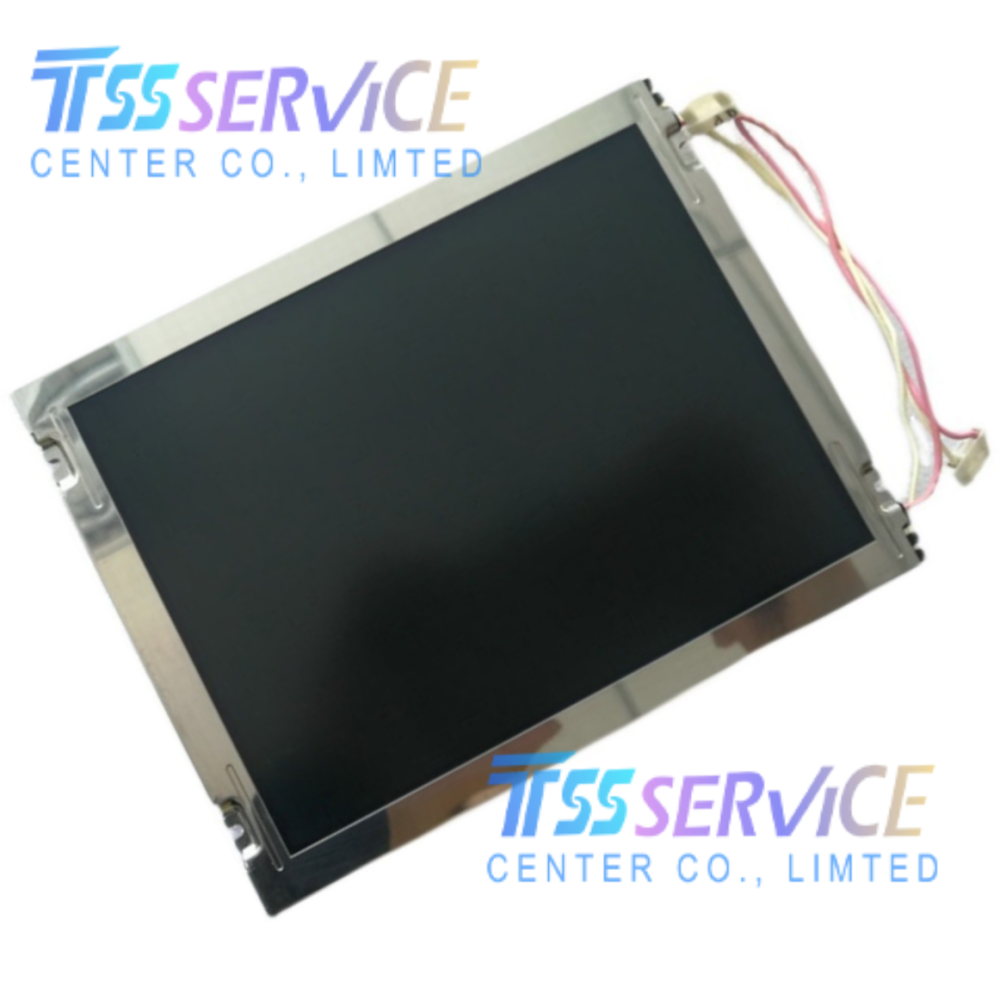

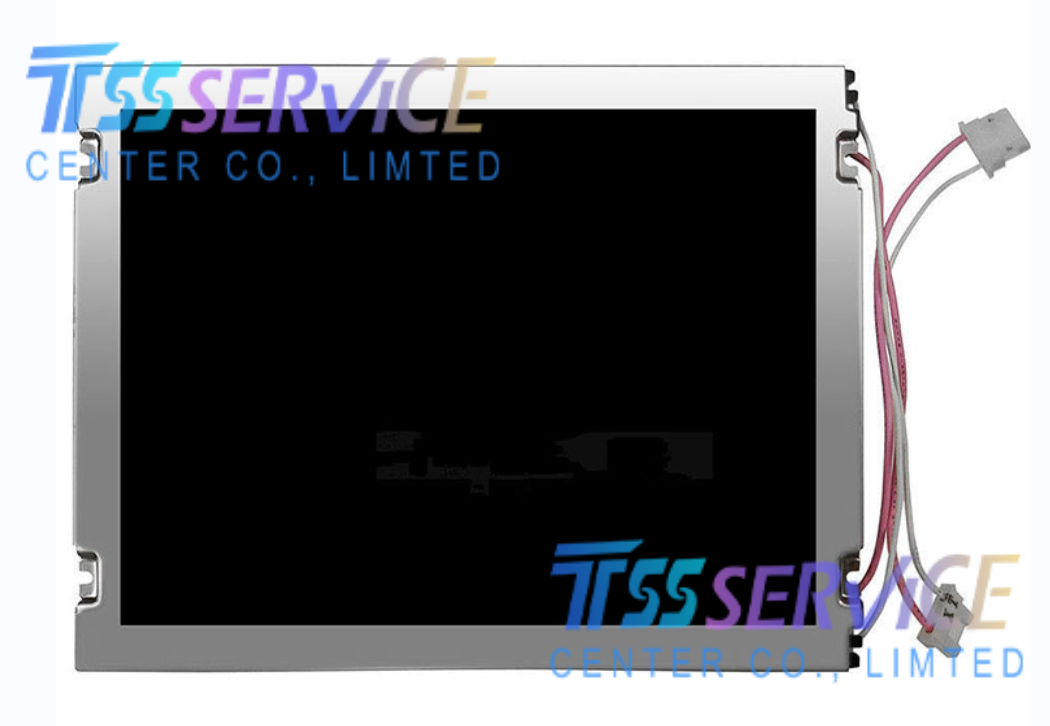

AA065VB08 Mitsubishi 6.5" VGA TFT-LCD 640×480 Industrial Display Module

Name: AA065VB08 Mitsubishi 6.5" VGA TFT-LCD 640×480 Industrial Display Module
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: AA065VB08
Price: 138 USD
Availability: InStock

SKU: AA065VB08

Model: AA065VB08
Brand: Mitsubishi
Screen Size: 6.5 inches
Panel Type: a-Si TFT-LCD (TN, Normally White)
Resolution: 640 (RGB) × 480 (VGA)

0.0 (0 Reviews)

0 Sold

~~$145.00~~ $138.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

AA065VB08 Mitsubishi 6.5" VGA TFT-LCD 640×480 Industrial Display Module

Parameter	Details
Model	AA065VB08
Brand	Mitsubishi
Screen Size	6.5 inches
Panel Type	a-Si TFT-LCD (TN, Normally White)
Resolution	640 (RGB) × 480 (VGA)
Brightness	600 cd/m² (Typ.)
Contrast Ratio	750:1 (Typ.)
Viewing Angle	80/80/80/60 (CR≥10)
Color Depth	262K colors (6-bit)
Backlight	2×CCFL, 50,000 hours, no driver
Interface	CMOS (1 ch, 6-bit), 31 pins
Operating Voltage	3.3V (Typ.)
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-20°C ~ +80°C
Display Area	132.48 × 99.36 mm
Outline Dimension	154 × 121 × 11.5 mm
Panel Weight	205g (Typ.)
Surface Treatment	Hard coating (2H), Anti-Reflective
Compliance	RoHS

Applications

Industrial HMI & Control: PLC, industrial touch panels, factory automation, CNC machinery, and industrial controllers.
Medical Equipment: Patient monitors, diagnostic devices, and portable medical instruments requiring stable low-temperature performance.
Outdoor & Logistics Terminals: Handheld scanners, warehouse management devices, and outdoor kiosks.
Smart Instruments: Energy meters, environmental monitoring systems, and industrial test equipment.
Transportation & Automotive: In-vehicle displays, railway control panels, and marine navigation terminals.
