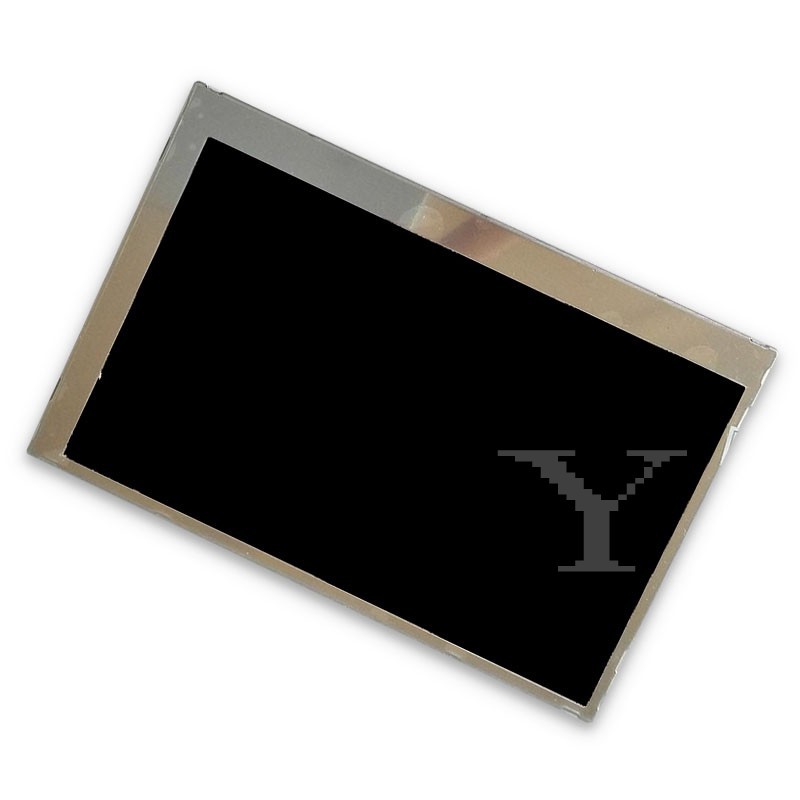

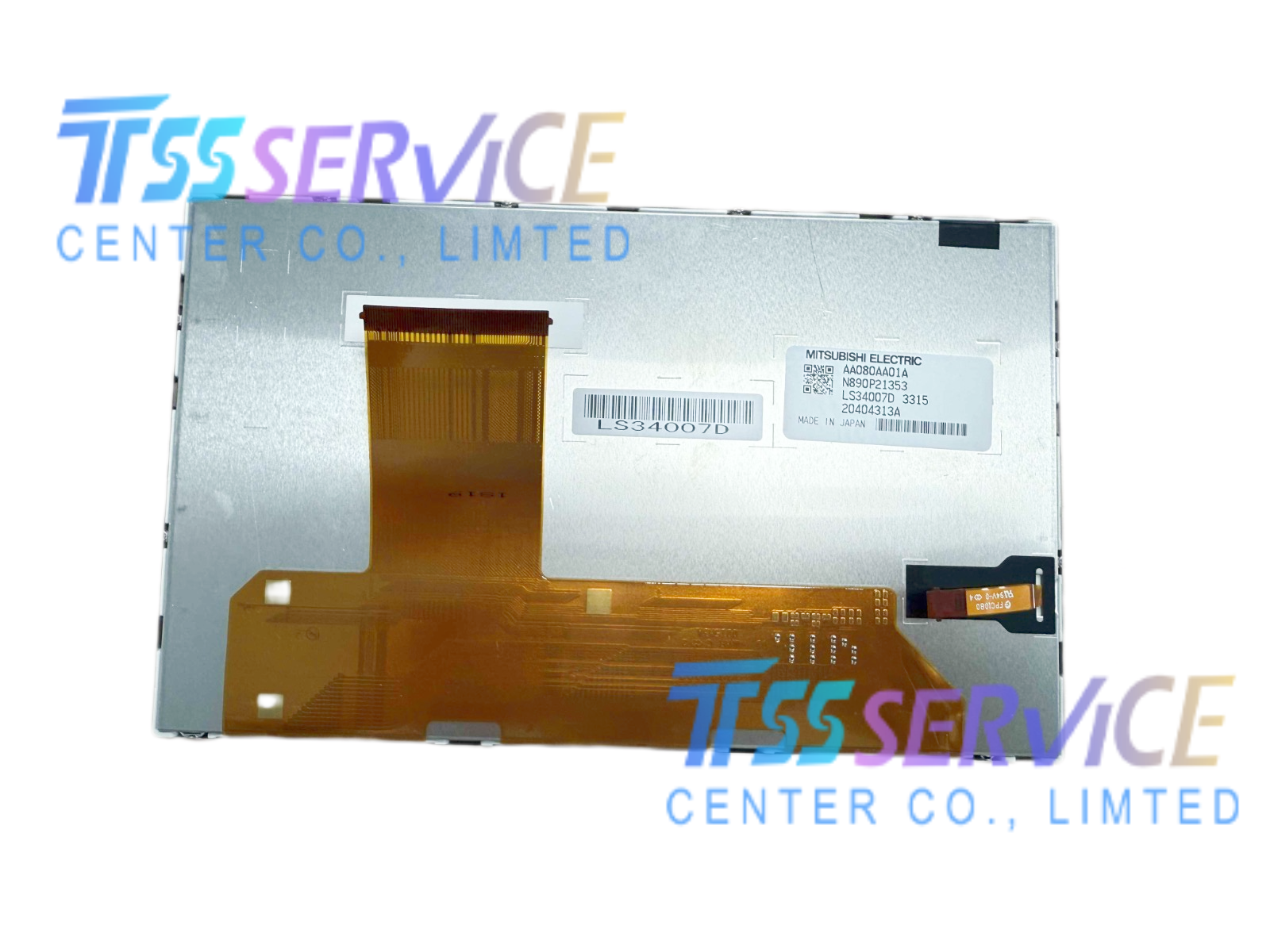

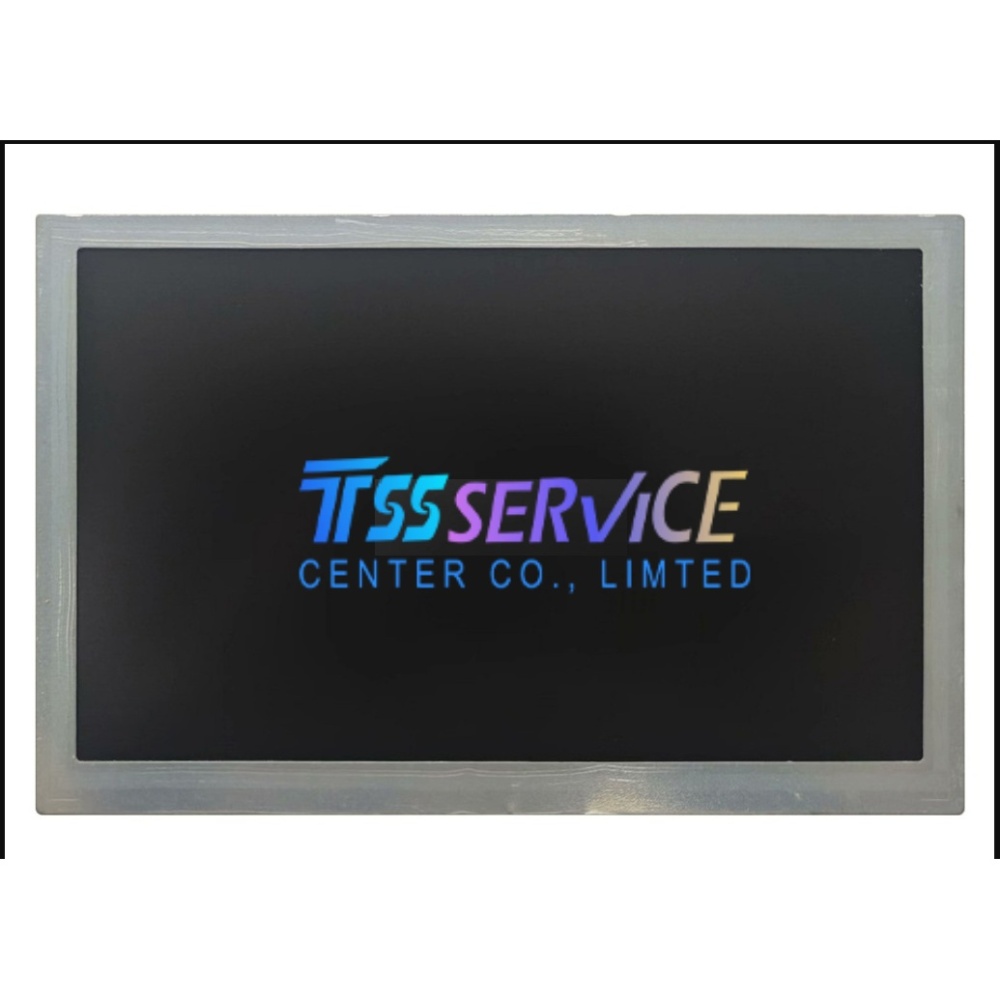

Mitsubishi 8 inch LCD Panel Screen AA080AA01A For Industrial

Name: Mitsubishi 8 inch LCD Panel Screen AA080AA01A For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: AA080AA01A
Price: 116 USD
Availability: InStock

SKU: AA080AA01A

Model: AA080AA01A
Brand: Mitsubishi
Size: 8.0 inches (diagonal)
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800 × 600 (SVGA)

0.0 (0 Reviews)

0 Sold

~~$119.00~~ $116.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Mitsubishi 8 inch LCD Panel Screen AA080AA01A For Industrial

Parameter	Details
Model	AA080AA01A
Brand	Mitsubishi
Size	8.0 inches (diagonal)
Panel Type	a-Si TFT-LCD, LCM
Resolution	800 × 600 (SVGA)
Brightness	350 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.)
Viewing Angle	85°/85°/85°/85° (L/R/U/D, CR≥10)
Backlight	WLED, 15,000 hours lifespan
Interface	MIPI (4 data lanes), 31-pin connector
Color Depth	262K / 16.7M colors
Operating Temp.	-20°C ~ +70°C
Storage Temp.	-30°C ~ +80°C
Weight	Approx. 1.0 kg

Typical Applications

Industrial HMI (Human-Machine Interface): Factory automation panels, CNC machinery, and production line monitoring systems.
Outdoor & Rugged Displays: Kiosks, outdoor signage, and marine/vehicle-mounted terminals.
Medical Equipment: Diagnostic devices, patient monitoring systems, and laboratory instruments.
Retail & Hospitality: POS terminals, digital signage, and self-service kiosks.
Transportation: In-vehicle displays for logistics, public transit, and heavy machinery.
