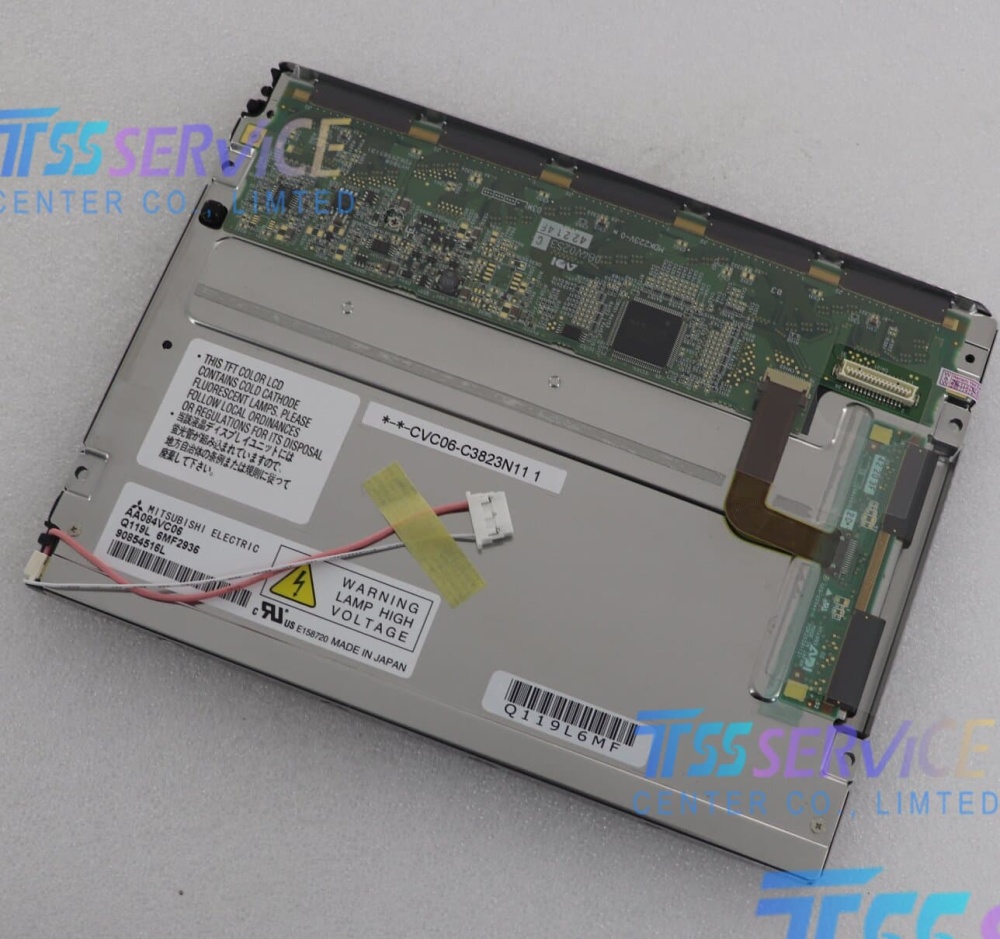

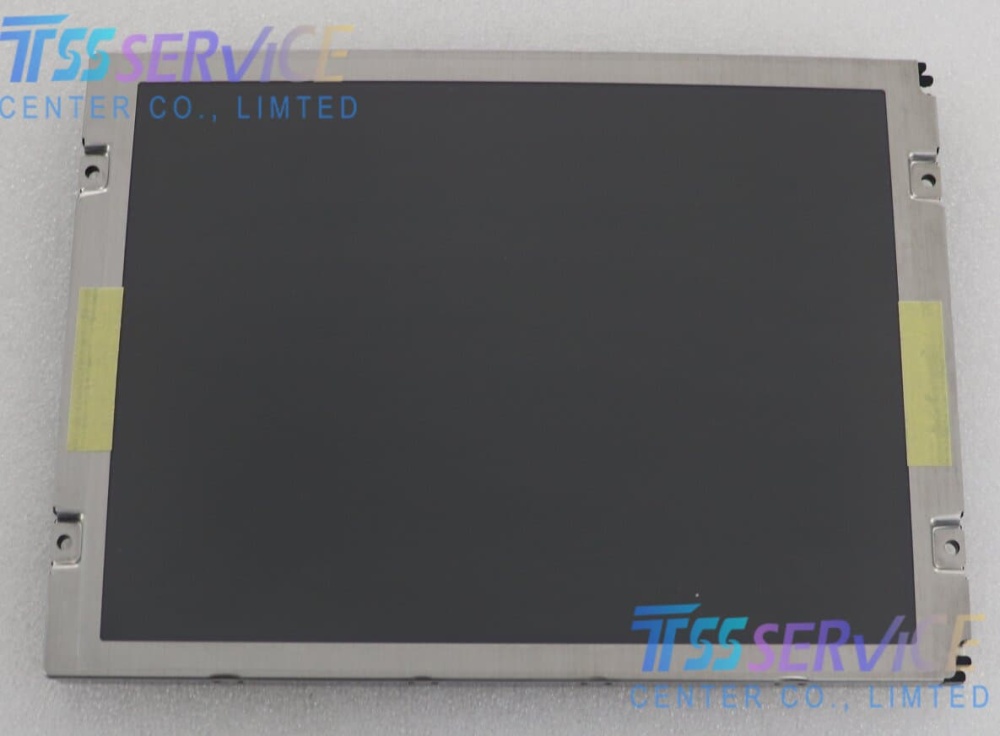

AA084VC06 8.4" 640*480 a-Si TFT-LCD Panel for Mitsubishi

SKU: AA084VC06
Model P/N:AA084VC06
Diagonal Size:8.4"
Panel Type:a-Si TFT-LCD, LCM
Resolution:640(RGB)×480, VGA  95PPI
Pixel Format: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$99.00 $98.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • AA084VC06 8.4" 640*480 a-Si TFT-LCD Panel for Mitsubishi
  • AA084VC06 8.4" 640*480 a-Si TFT-LCD Panel for Mitsubishi
  • AA084VC06 8.4" 640*480 a-Si TFT-LCD Panel for Mitsubishi
  • AA084VC06 8.4" 640*480 a-Si TFT-LCD Panel for Mitsubishi
  • AA084VC06 8.4" 640*480 a-Si TFT-LCD Panel for Mitsubishi
  • AA084VC06 8.4" 640*480 a-Si TFT-LCD Panel for Mitsubishi
  • AA084VC06 8.4" 640*480 a-Si TFT-LCD Panel for Mitsubishi
  • AA084VC06 8.4" 640*480 a-Si TFT-LCD Panel for Mitsubishi
1/1
  • AA084VC06 8.4" 640*480 a-Si TFT-LCD Panel for Mitsubishi
  • AA084VC06 8.4" 640*480 a-Si TFT-LCD Panel for Mitsubishi
  • AA084VC06 8.4" 640*480 a-Si TFT-LCD Panel for Mitsubishi
  • AA084VC06 8.4" 640*480 a-Si TFT-LCD Panel for Mitsubishi
  • Description

AA084VC06 8.4-inch TFT-LCD Panel

The AA084VC06 is an 8.4-inch VGA-resolution TFT-LCD panel designed and manufactured for Mitsubishi applications. Utilizing amorphous silicon (a-Si) technology, this industrial-grade display module delivers reliable performance in demanding environments with its robust construction and clear 640×480 pixel resolution.

Parameter Specification
Model AA084VC06
Manufacturer Mitsubishi
Screen Size 8.4 inches (diagonal)
Resolution 640 × 480 pixels (VGA)
Technology a-Si TFT-LCD
Active Area 170.9 mm × 128.2 mm
Brightness (Typ.) 450 cd/m²
Contrast Ratio 400:1
Viewing Angles 80°/80°/70°/70° (L/R/U/D, CR≥10)
Color Depth 262K colors (6-bit + FRC)
Interface CMOS (1 ch, 6-bit) , 31 pins Connector
Power Supply 3.3V (Logic), 12V/5V (Backlight)
Operating Temperature -20°C to +70°C
Storage Temperature -30°C to +80°C
Backlight Type CCFL (typical)
Backlight Life 50,000 hours (CCFL, typ.)
Surface Treatment Anti-glare, Hard Coating (3H)
